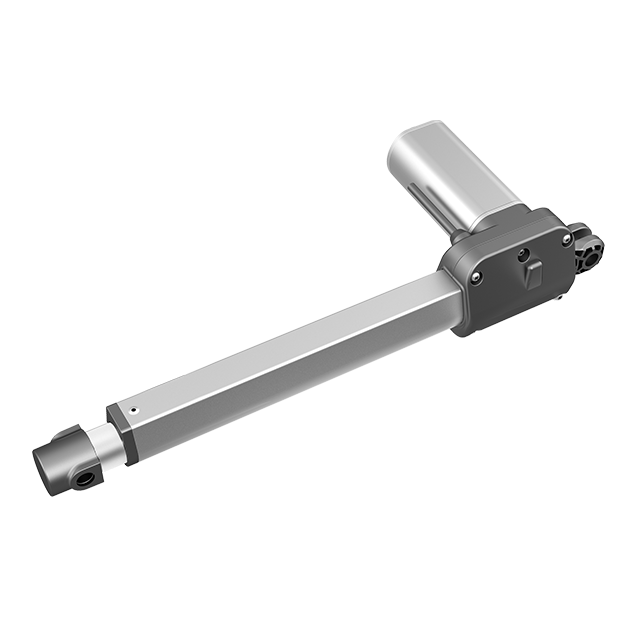

JC35L6

· Max. load: 3000N
· IP grade: IP54
Availability:


  • Load in push:3000N, 2000N, 1000N, 50N

  • Color: Black/Gray

  • IP Grade: IP54

  • Stroke length

    3000N:50~300mm

    2000N:50~400mm

    1000N:50~600mm

    50N:50~600mm

  • Installation dimensions

    Inner tube drilling with top clevis sleeve and top clevis bush

    L=S+130 (S≤200)

    L=S+140 (200<S≤300)

    L=S+150 (300<S≤400)

    L=S+160 (400<S≤500)

    L=S+170 (500<S≤600)

    With B type top clevis

    L=S+160 (S≤200)

    L=S+170 (200<S≤300)

    L=S+180 (300<S≤400)

    L=S+190 (400<S≤500)

    L=S+200 (500<S≤600)

  • Noise level: ≤48dB, ( environmental noise≤40dB)

  • Hall sensor : optional

  • Only push : optional

  • Built-in electrical limit switch.

  • Weight: About 1.5kg (different stroke length and installation dimensions with different weight )

  • Static bending moment: lateral load are not allowed



JC35L6规格书封面

Datasheet

Preview/Download
