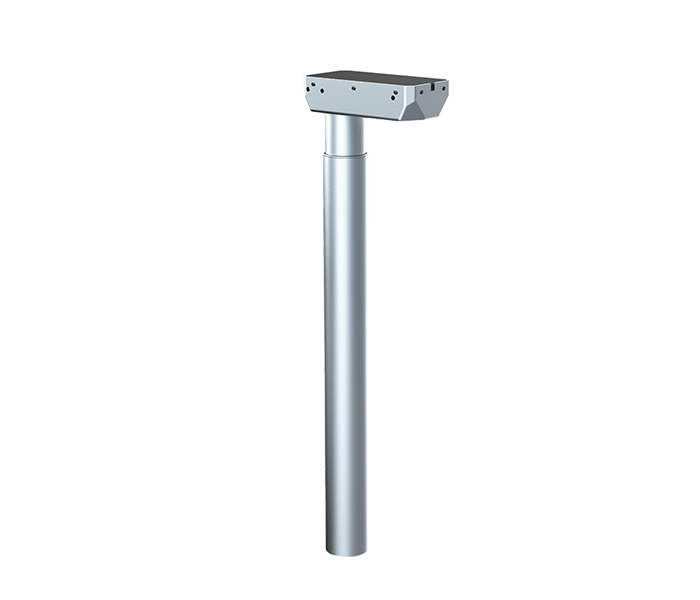

JS36DC1-2-S
Application fieldOffice Line1. 2mm thickness round tube and 3mm optimized motor housing design for extra strength and stability
2. The tube is no hole design
3. Max. load capacity is 800N per column.
4. Fit with JCB35N series Jiecang control boxes to realize stable speed 32mm/s
5. Low noise level ≤50dB
6. Max. Bending moment：150N.m
7. Standard installation length: 650mm
8. Standard stroke length: 500mm
9. Column dimensions: outer tube diameter：Ø70mm，inner tube diameter: Ø 63.5mm
10. Motor housing dimension: 190x96x48mm
11. Motor: Jiecang design high power motor
12. Hall sensor enabling parallel drive
13. Surface：Powder coating with standard
14.Color: White(RAL9016), Black(RAL9005), Grey(RAL7045)
