Name: JS36DS8-4-S
Rating: 5.0 (5 reviews)

This product has been off the shelf!

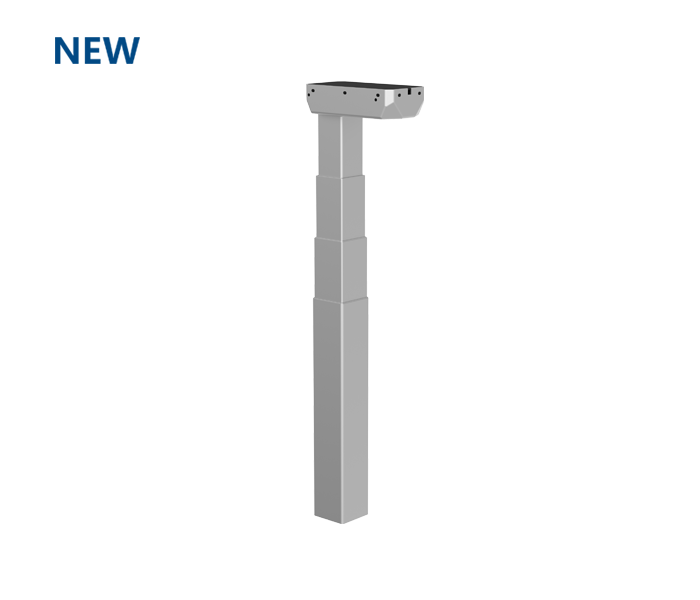

· JS36DS8-4-S is a lifting column mit 4 stages, which is suitable for offifice, home and business environment.

· Compared with standard lifting column, it occupies lower installation length, higher stoke, faster speed.

· The anti-collision function of it minimizes the risk when the desk hits an obstacle.

· It is suitable for products with low load and high installation length requirements, such as desk converter and lifting tea table.

COMPONENTS

SYSTEMS

Add: No.2 Laisheng Road, Provincial High-tech industrial park, Xinchang county, Zhejiang province, China

Tel: 400-6666-358

Type	Rated load(N)	Self locki(N)	Typical current at rated Loa(A)	Typical speed	Duty cycle	Stroke length(mm)	Installation ength (mm)
				0 load~ Rated load(mm/s)
JS36DS8-4-R	300	1200	6	50	10%	700	450

Type	Rated load(N)	Self locki(N)	Typical current at rated Loa(A)	Typical speed	Duty cycle	Stroke length(mm)	Installation ength (mm)
				0 load~ Rated load(mm/s)
JS36DS8-4-R	300	1200	6	50	10%	700	450
