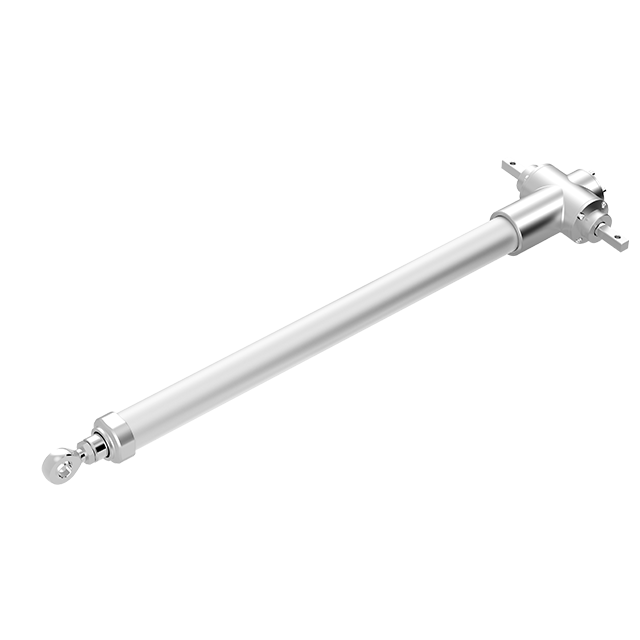

JC35A19A

· Max. load: 15000N
· IP grade: IP65
Availability:

  • Applicable ambient temperature -40℃~+65℃.

  • Anti-corrosion conditions C3-480H neutral salt spray.

  • The push rod stroke S=300-900+10 0mm is optional, and the factory is in the minimum installation distance position L=S+3000-10mm

  • The front end interface of the push rod is φ18, and the rear end interface is φ50. See the three-dimensional outline drawing for unmarked details.

  • The maximum static load is 50kN (half stroke).

  • The maximum dynamic load is 15kN.

  • Gear reduction ratio 1:1.

  • Trapezoidal screw: Tr22*P5.

  • IP grade: IP65.

  • Oil injection frequency 3-5 years


Datasheet
