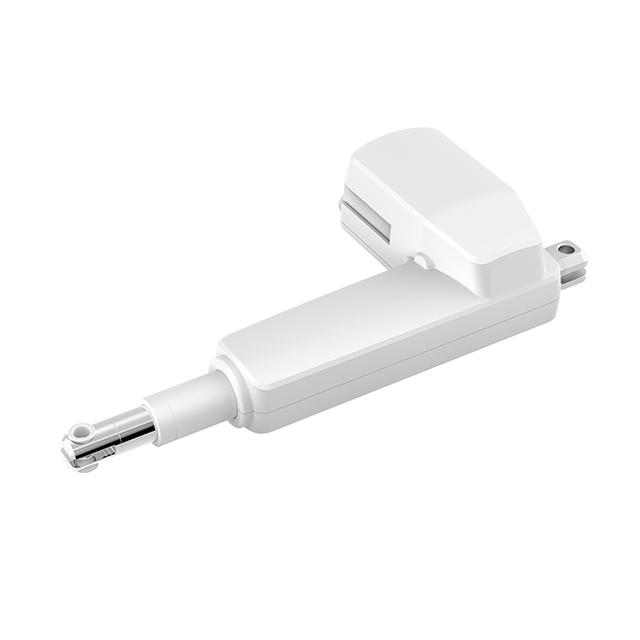

JC35B8

· Max. load:6000N
· IP grade: Max. IPX6W
Availability:


  • Load in push: 6000N、4000N、3000N

  • Load in pull: 4000N、3000N

  • Color: grey/black

  • IP grade: Max. IPX6W

  • Stroke length:

    6000N:50-400mm(in steps of 4mm)

    4000N:50-500mm(in steps of 4mm)

    2000N:50-550mm(in steps of 4mm)

    1000N:50-600mm(in steps of 4mm)

  • Installation dimensions:

    L=S+177(Lmin=283);

    L=S+197(S≥400)

  • Noise level: ≤50dB (environmental noise≤40dB)

  • Safety nut: optional

  • Hall sensor: optional

  • Only push: optional

  • Reed switch: optional

  • Built-in electrical limit switch

  • Weight: About 2.3kg (different stroke length and installation dimensions with different weight)

  • Static bending moment: lateral load is not allowed
