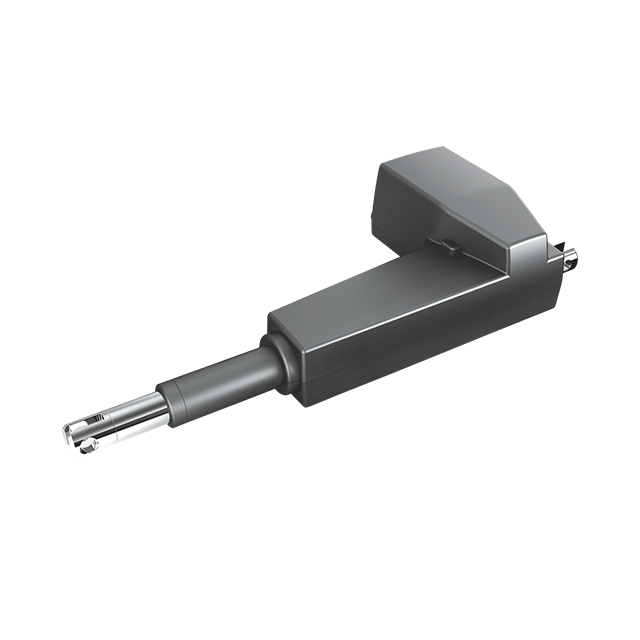

Linear Actuator JC35C
-
JIECANG
Load in push：8000N、6000N、4000N、2000N
Load in pull：4000N、2000N
Color: Gray/black
IP grade：IPX4
Stroke length：
8000N：50-400mm；6000N：50-400mm；
4000N：50-500mm；
2000N：50-550mm；
Installation dimensions:
L=S+175(Lmin=325)；
L=S+195(S≥400)；
Noise level: ≤50dB, ( environmental noise≤40dB)
Reed switch: optional
Weight: About 2kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
