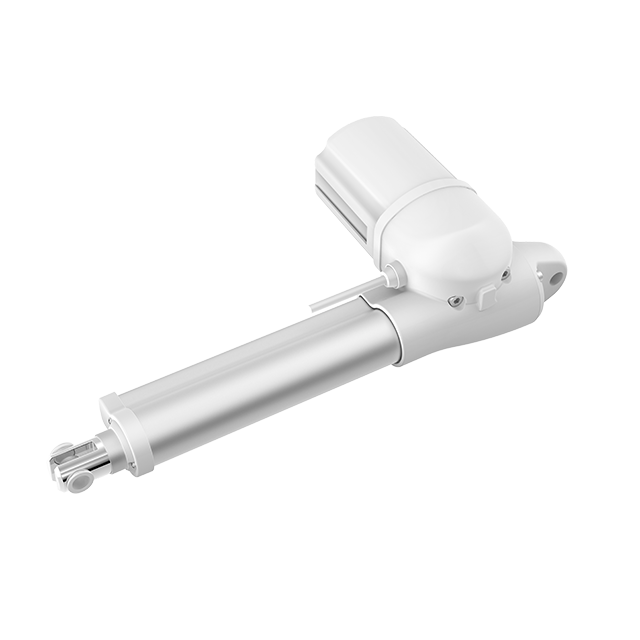

JC35D4

· Max. load: 6000N
· IP grade: lP54
Availability:


  • Load in push: 6000N,4000N,3000N

  • Color: Grey / Black

  • IP grade: IP54

  • Stroke length:

    6000N: 50-200mm(in steps of 4mm)

    4000N: 50-300mm(in steps of 4mm)

    3000N: 50-300mm(in steps of 4mm)

  • Installation dimensions:

    L=225(S≤50)

    L=S+175(50<S≤200)

    L=S+185(50<S≤300)

  • Noise level≤48dB(environmental noise≤40dB)

  • Safety nut: optional

  • Hall sensor : optional

  • Only push : optional

  • Built-in electrical limit switch

  • Weight: About 1.5kg (different stroke length and installation dimensions with different weight)

  • Static bending moment: lateral load is not allowed



JC35D4规格书封面

Datasheet

Preview/Download
