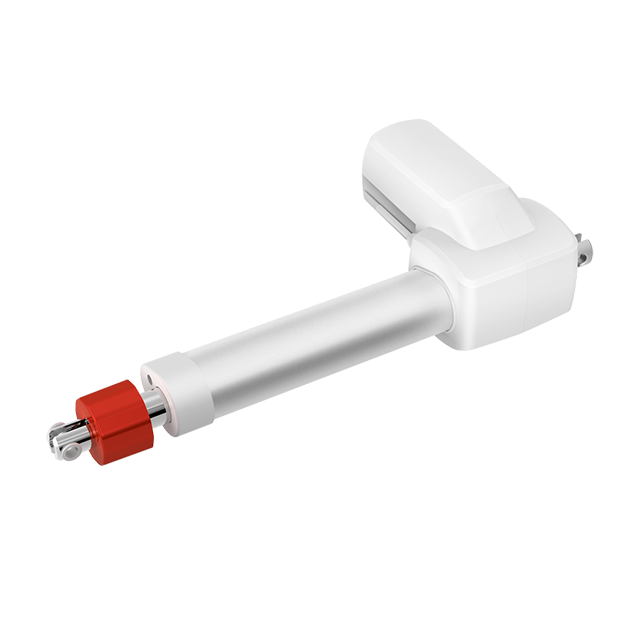

JC35L12

· Max. load: 8000N
· IP grade: Max. IPX6
· Suitable for patient lift
Availability:

  • Load in push:8000N

  • Color: Gray ; manual operation; red

  • IP grade: Max. IPX6

  • Stroke length: 8000N:50-400mm (in steps of 4mm)

  • Installation dimensions:

    L=310 (S≤300),

    L=S+260 (50<S<300),

    L=S+290(300≤S≤400)

  • Noise level: ≤50dB, ( environmental noise≤40dB)

  • Safety nut: necessary

  • Mechanical limit switch: necessary

  • Only push : necessary

  • Manual operation: necessary

  • Built-in electrical limit switch.

  • Weight: About 4kg (different stroke length and installation dimensions with different weight )

  • Static bending moment: lateral load are not allowed.
