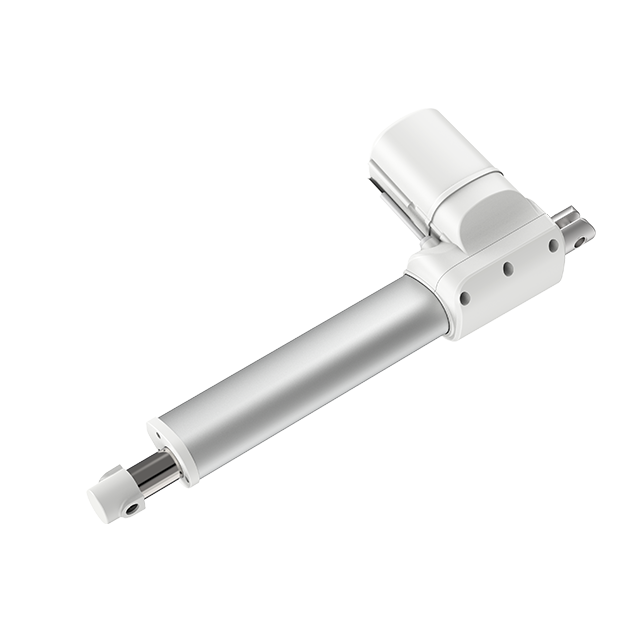

Linear Actuator JC35L30
-
JIECANG
Load in push:6000N, 4000N, 3000N
Load in pull:4000N,3000N
Color: Grey
IP grade: Max. IPX6
Stroke length:
6000N：50-250mm（in steps of 4mm）
4000N：50-400mm(in steps of 4mm）
3000N: 50-400mm(in steps of 4mm）
Installation dimension:
L=225(S＜50）
L=S+175（50＜S≤200）
L=S+185（200＜S≤400）
Noise level:≤48dB ( environmental noise≤40dB)
Safety nut: Optional
Hall sensor: Optional
Only push: Optional
Built-in electrical limit switch
Weight: About 2kg（different stroke length and installation dimensions with different weight）
Static bending moment: lateral loads are not allowed.
