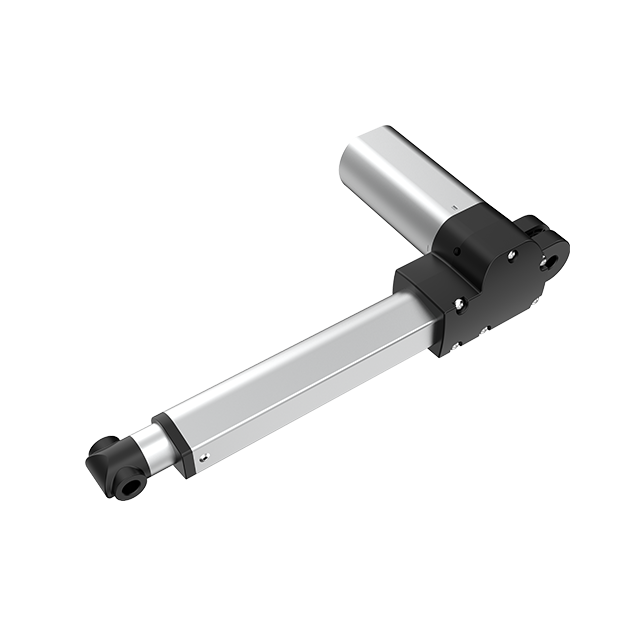

JC35L31

Load in push：4500N、2500N、800N、500N

Load in pull：2000N、800N、500N

Color: Black

IP grade: IP20

Stroke length:

4500N：50-200mm

2500N：50-415mm

800N：50-252mm

500N：50-194mm

Installation dimensions:

4500N：L=S+135（50＜S≤200）

2500N：L=S+135（50＜S≤415） Stroke ≥ 200mm needs to add top clevis, it can only be used in the occasion of straight up and down.

800N：L=510mm（S=252）

500N：L=355mm（S=194）

Noise level: no-load ≤ 48dB, load ≤ 50 (ambient noise ≤ 40dB)800N&500N configuration, no-load noise ≤ 43dB (ambient noise ≤ 35dB, 500mm detection distance)

Hall sensor : optional

Only push no pull option : optional

Built-in electrical limit switch

Weight: About 2kg (different stroke length and installation dimensions with different weight )

Static bending moment: lateral load are not allowed
