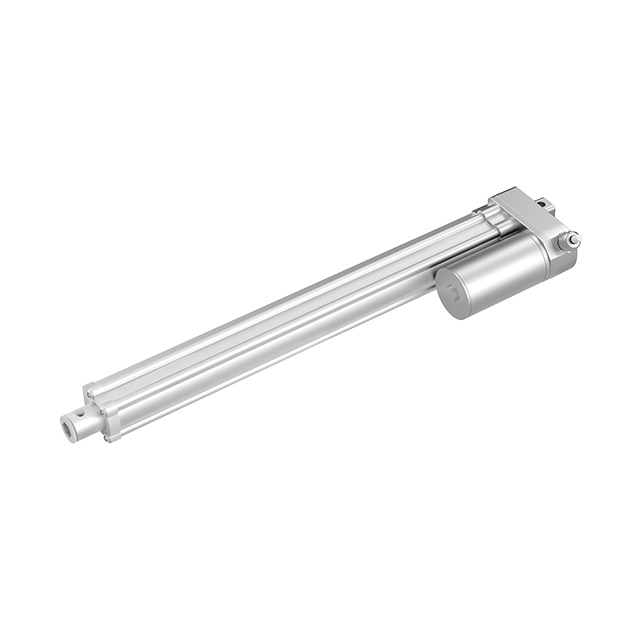

JC35W8

· Max. load:1000N
· IP grade: Max. IPX6
Availability:

  • Load in push: 1000N, 750N, 500N, 250N, 125N, 70N

  • Load in pull: 1000N、750N、500N、250N、125N、70N

  • Color: silver gray

  • IP grade: Max. IPX6

  • Stroke length:

    Common:25-1000mm(in steps of 4mm)

    With dual hall sensor:25-1000mm(in steps of 4mm)

    With potentiometer:

    1000N:25-520mm(in steps of 4mm)

    750N:25-800mm(in steps of 4mm)

    ≤500N:25-1000mm(in steps of 4mm)

  • Standard installation dimension:(can be customized)

    Common and With dual hall sensor:

    L=S+105(25≤S≤610)
    L=S+120(610<S≤765)
    L=S+140(765<S≤1000)

    With potentiometer:

    L=S+140(25≤S≤610)
    L=S+155(610<S≤765)
    L=S+175(765<S≤1000)

  • Noise level ≤55dB(ambient noise level≤40dB)

  • Hall sensor: optional

  • With potentiometer:optional

  • Built-in limit switch

  • Weight: 1kg(differences in stroke/installation dimension)

  • Static bending moment: no lateral load
