JS36ZE1-2-S

· 2 Stage
· Ellipse 91*57 mm
· Inline Column
Availability:

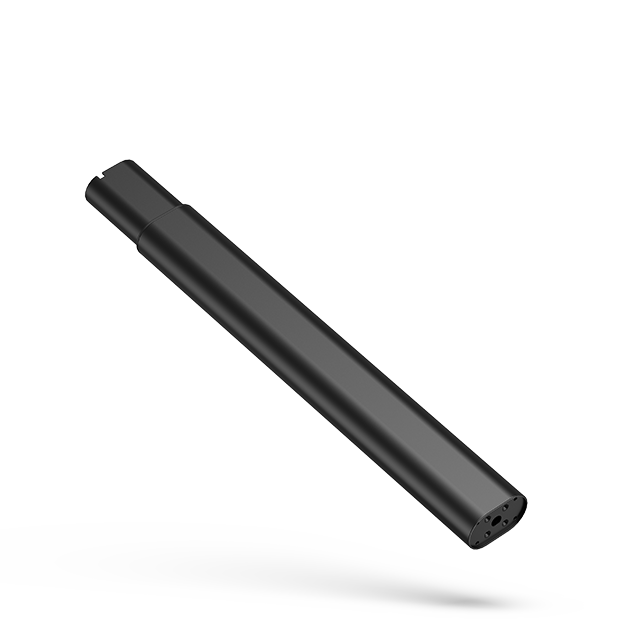

  • JS36ZE1-2-S is a compact 2-part ellipse tube inline column that provides more diverse design for the overall lifting system.

  • Without motor housing design, it has a simple appearance, compact structure and a wide range of applications.

  • 1500N static self-locking force, to ensure strong static load capacity of complete set of lifting table.

  • Excellent comprehensive performance, low noise, high load, high stability.

  • Suitable for office, home and business environment.


TypeRated load (N)

Self locking (N)

Typical current at rated load (A)

Typical Max speed

0 load ~ Rated load

(mm/s)

Duty cycle

Stroke

length

(mm)

Built-in

length

(mm)

JS36ZE1-2-S800150063210%500650
