Electric linear actuator is an electrically powered device that converts the rotational motion of an electric motor into linear reciprocating motion of a push rod. It is widely used in industries such as medical care, industrial automation, and smart homes.

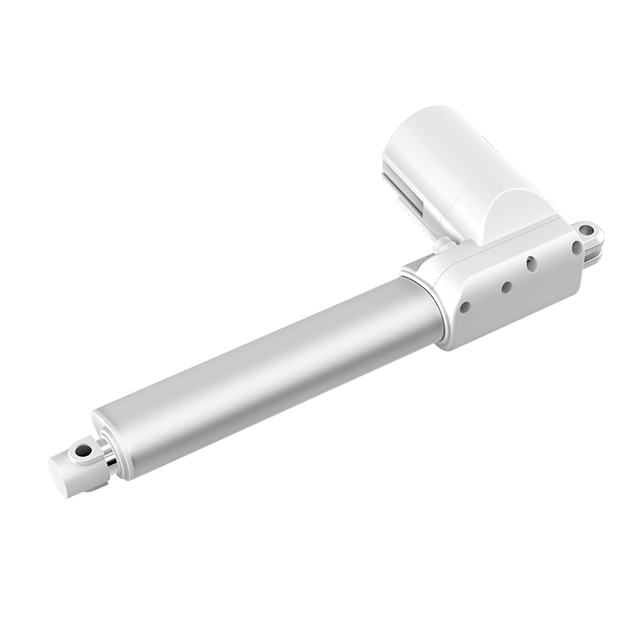

JC35L29 is a linear actuator of JIECANG characterized by big load, high speed and and low noise. In particular, the IP grade of it, is IPX6. Indicating a high level of protection against water ingress
This makes it suitable for a wide range of applications, for example medical beds,operating beds and other fields.
Preferably fits in homecare nursing or medical beds for its outstanding characteristic of low-noise, high-load with a load of 8000N.
FeaturesDynamic load push: 8000N, 6000N, 4000N
Static pull load: 4000N
Color: gray
IP grade: Max. IPX6
Stroke length:
50-250mm
Retracted length:
L=S+175（50≤S≤200）
L=S+185（200＜S≤250）
Noise level: ≤48dB (environmental noise ≤40dB)
Built-in electronic limit switch
Weight: about 2kg (base on different stroke)
Static bending load: no bending load
