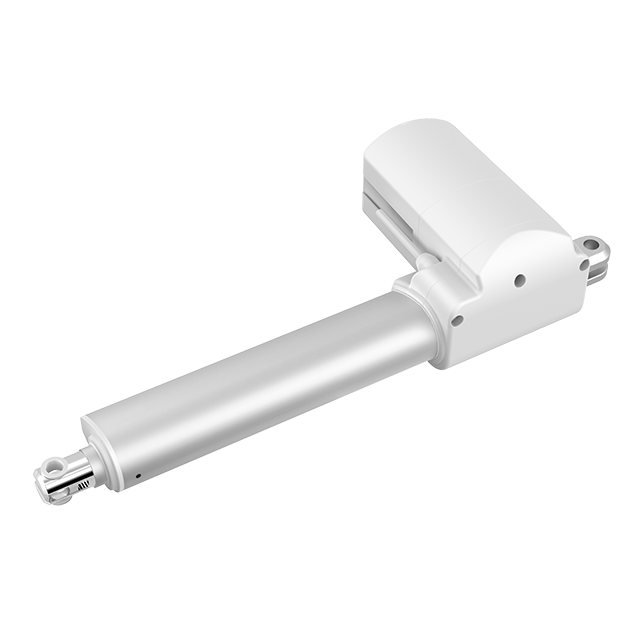

JC35L3

· Max. load:6000N
· IP grade: Max. IPX6
Availability:

  • Load in push:6000N;4000N,3000N

  • Load in pull:4000N,3000N

  • Color: Gray/Black

  • IP grade: Max. IPX6

  • Stroke length:

    6000N:50-300mm (4mm tolerance)

    4000N:50-400mm (4mm tolerance)

    3000N:50-400mm (4mm tolerance

  • Installation size:

    L=225(S≤50)

    L=S+175(50<S≤200)

    L=S+185(200<S≤400)

  • Noise level: ≤48dB, ( environmental noise≤40dB)

  • Safe nut: optional

  • Double hall sensor : optional

  • Only push no pull : optional

  • Built-in electronic limit switches.

  • Weight: About 2kg (different stroke/retracted length with different weight )

  • Static bending moment: lateral load are not allowed.

JC35L3规格书封面

Datasheet

Preview/Download
