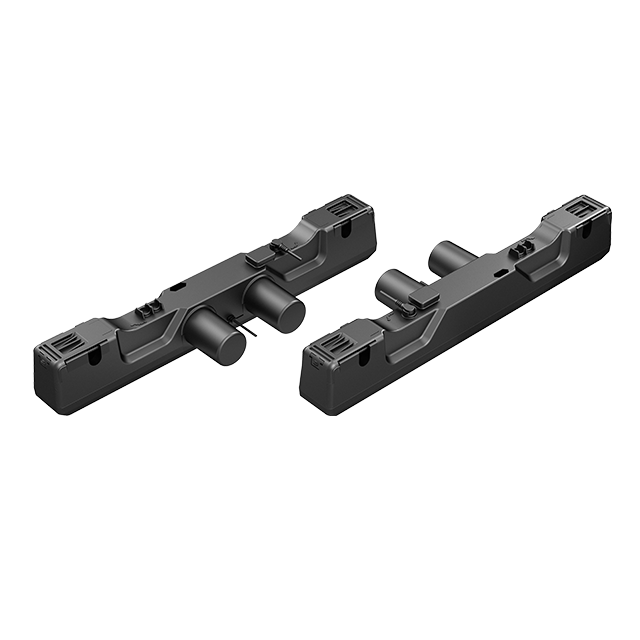

Linear Actuator JC35S11
-
JIECANG
Dynamic load push：2*4500N
Color: Gray /Black
IP grade: IP20
Input voltage: 100VAC～240VAC
Output voltage: 29VDC
Stroke length:
Backrest stroke: Max.87mm
Legrest stroke: Max.69mm
Installation dimensions:
L=581±3mm
Noise level:
Single action≤50dB, ( environmental noise≤40dB)
linkage action≤53dB, ( environmental noise≤40dB)
Built-in electrical limit switch
Weight: About 4.6kg
Static bending moment: lateral loads are not allowed
Dynamic load push：2*4500N
Color: Gray /Black
IP grade: IP20
Input voltage: 100VAC～240VAC
Output voltage: 29VDC
Stroke length:
Backrest stroke: Max.87mm
Legrest stroke: Max.69mm
Installation dimensions:
L=581±3mm
Noise level:
Single action≤50dB, ( environmental noise≤40dB)
linkage action≤53dB, ( environmental noise≤40dB)
Built-in electrical limit switch
Weight: About 4.6kg
Static bending moment: lateral loads are not allowed
