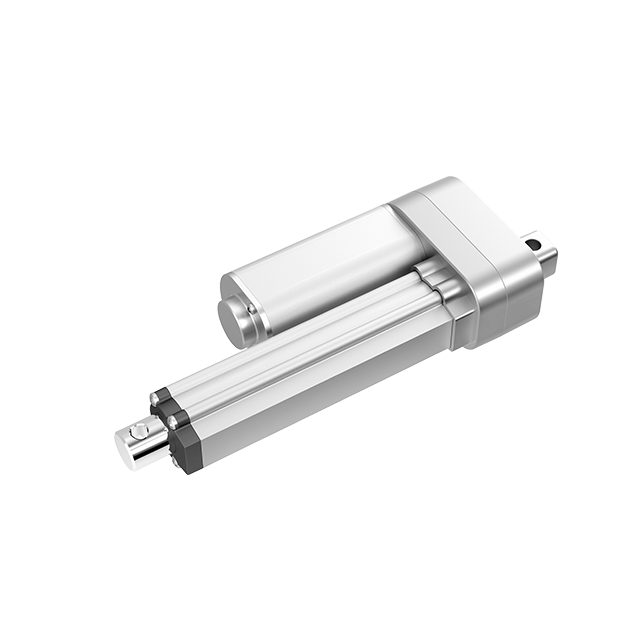

JC35W2

· Max. load: 3000N
· IP grade: IPX4
Availability:

  • Load in push:3000N, 2000N, 1000N

  • Load in pull:3000N, 2000N, 1000N

  • Color:  silver gray

  • IP grade: IPX4

  • Stroke length:

    3000N:50-250mm(in steps of 4mm)

    2000N:50-400mm(in steps of 4mm)

    1000N:50-400mm(in steps of 4mm)

  • Installation dimensions:

    L=170(S≤50)

    L=S+120(50<S≤400)

  • Noise level: ≤48dB, ( environmental noise≤40dB)

  • Hall sensor : optional

  • Built-in electrical limit switch.

  • Weight: About 1.7kg (different stroke length and installation dimensions with different weight )

  • Static bending moment: lateral load are not allowed.

JC35W2规格书封面

Datasheet

Preview/Download
