- Robotic Core Drive ComponentsJIECANG Robotic Core Drive Components include:Coreless Motor Assembly (Used in dexterous hands, providing lightweight, compact, and fast high-precision power)；Rotary Module (Drives joints to achieve precise rotation)；Micro Linear Actuator (Integrated into dexterous hands for precise positioning and movement in compact spaces)；Linear Actuator (Applied in limbs, delivering reliable and efficient linear displacement)These precision-engineered, modular components work in concert to establish a flexible, precise, and efficient foundation for robotic motion control.Product filter
Lateral torque: dynamic 250 N·m
Maximum load: 1000 N
Full-load speed: 200 mm/s
Stroke/installation distance: L=200+S/2 (standard installation distance 400 mm, customizable)
Maximum dynamic load: 800N
Maximum static load: 1000N
Maximum speed: 60mm/s
Stroke/Installation distance: L=200+S/2(100≤S≤800) mm

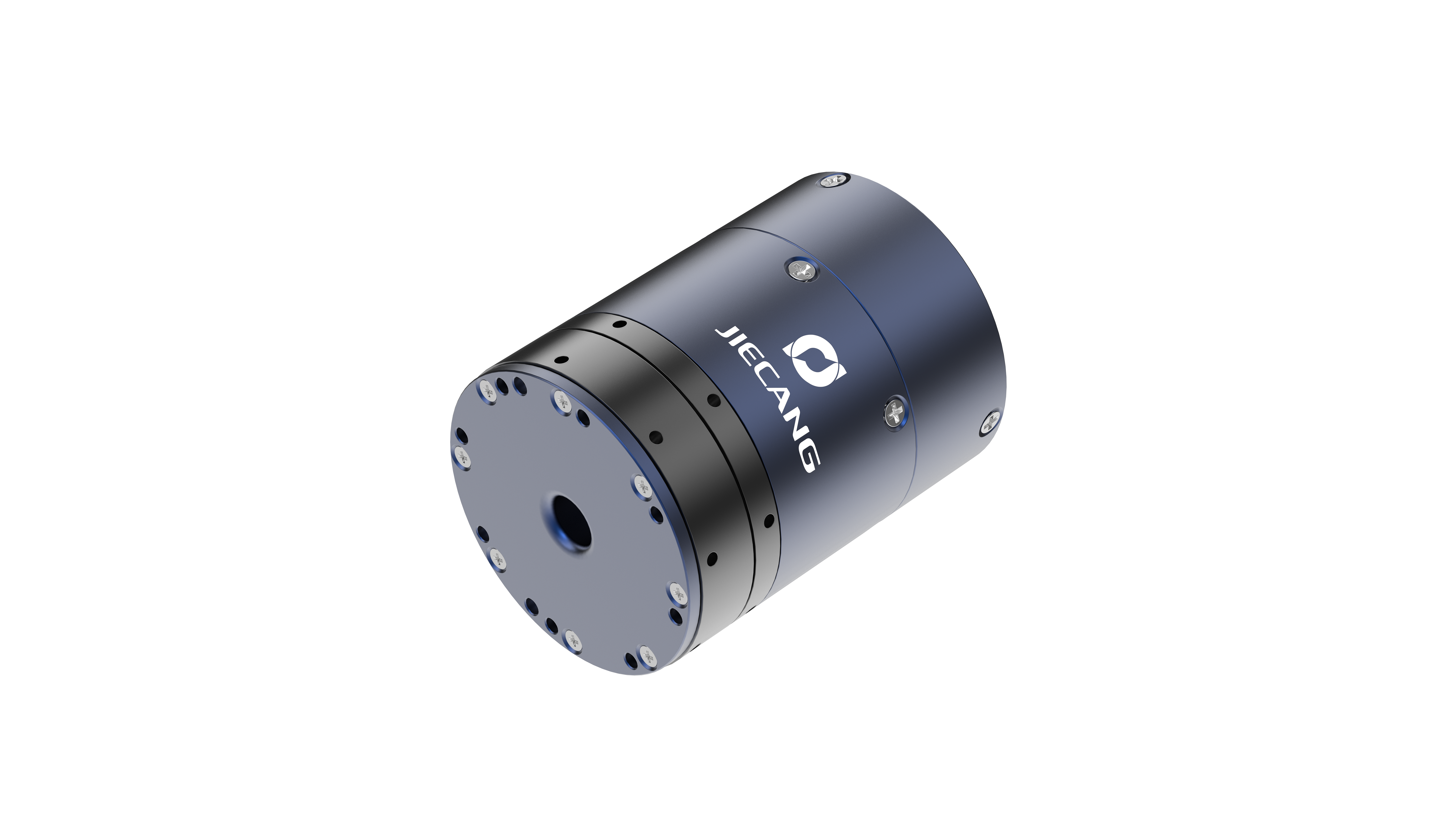

Dimensions：ø50x67mmRated / Peak Torque：10 / 30N·mRated Speed：37.5rpmWeight：0.4kg

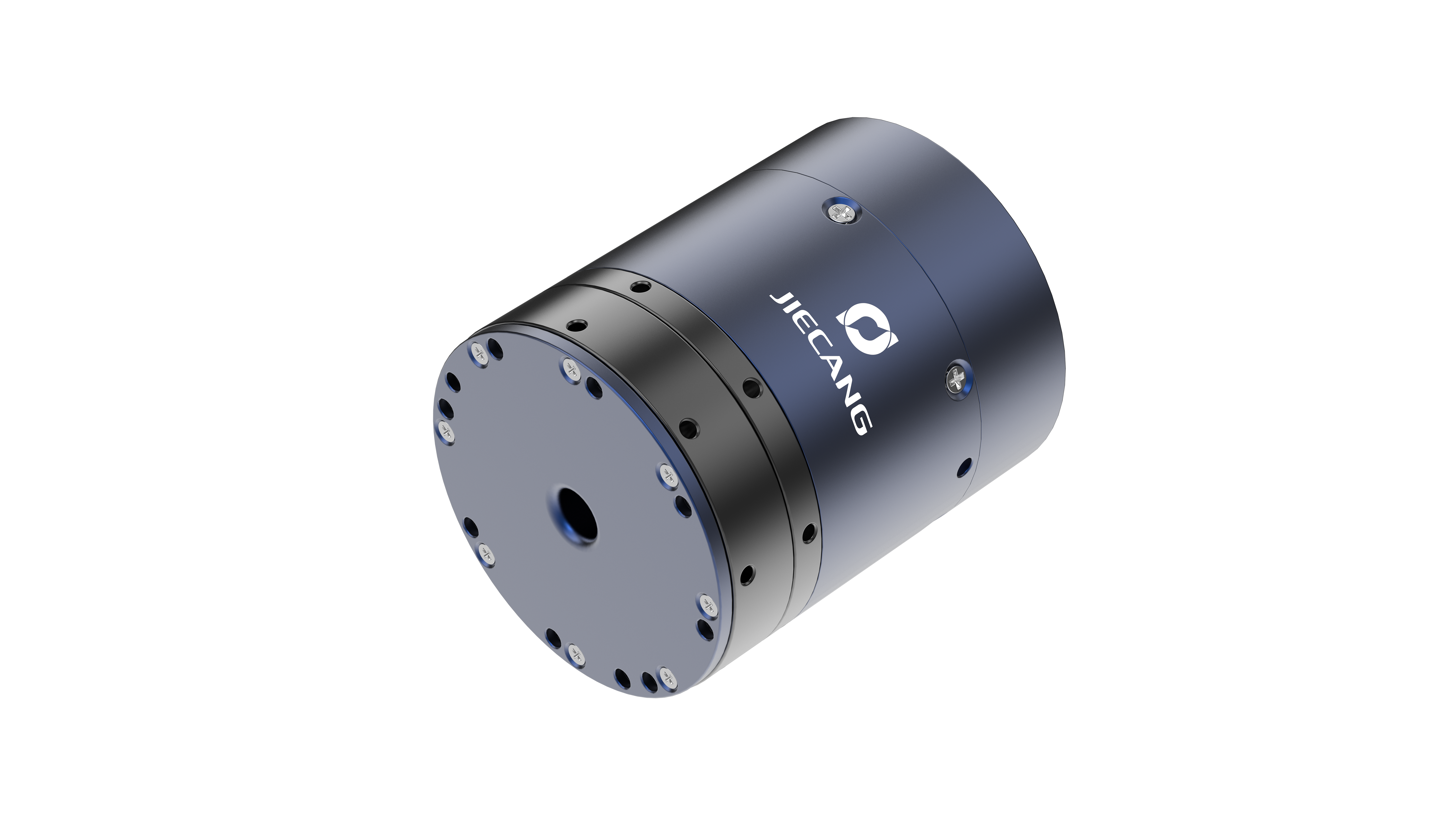

Dimensions：ø60x73.5mmRated / Peak Torque：30 / 90N·mRated Speed：37.5rpmWeight：0.7Kg

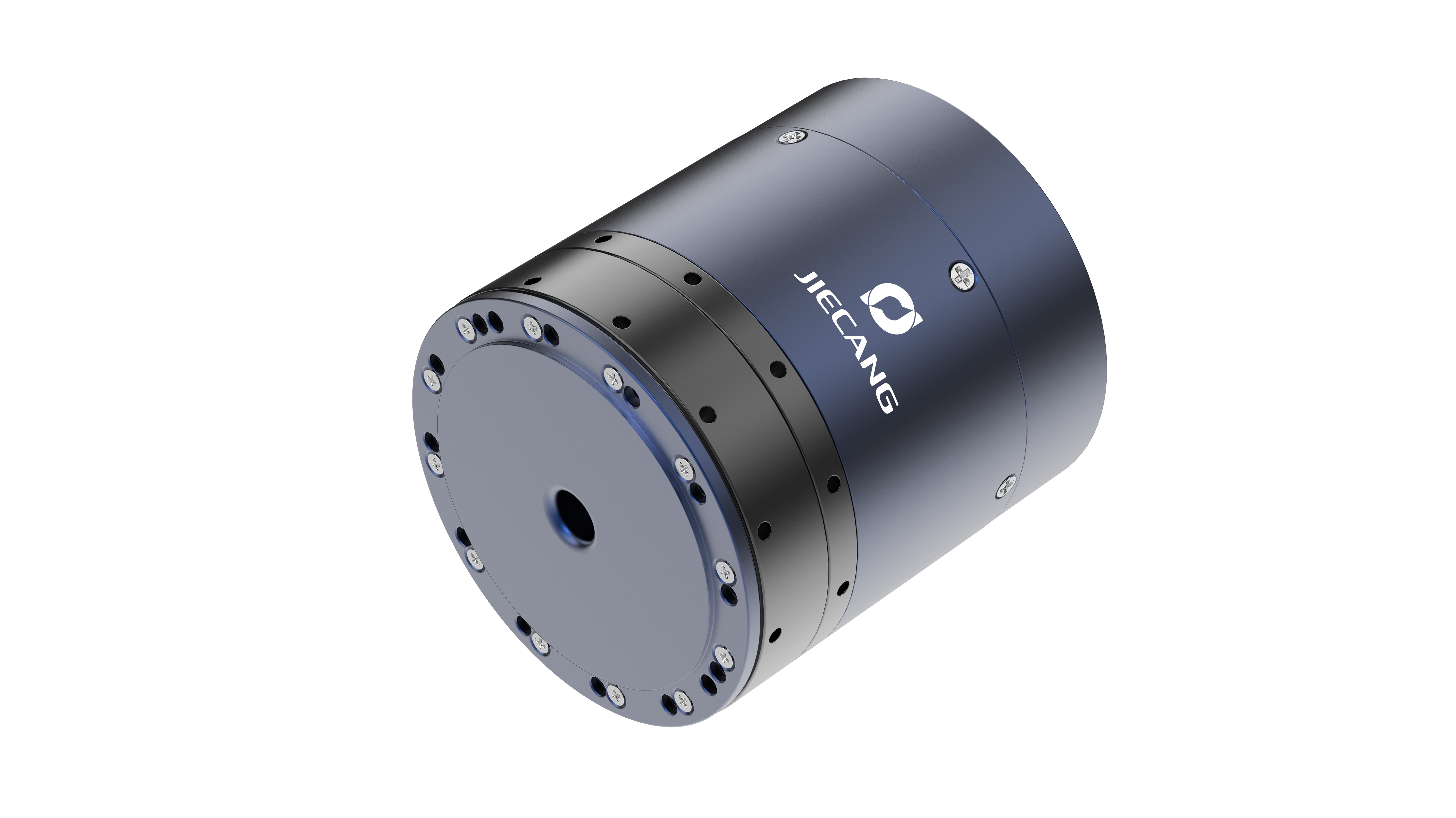

Dimensions：ø70x76mmRated / Peak Torque：60 / 180N·mRated Speed：30rpmWeight：1.0kg
Dimensions：ø52x73.4mmRated / Peak Torque：5 / 15N·mRated Speed：58.8rpmWeight：380gRated / Peak Torque Density：13.2 / 39.5N·m / Kg
Dimensions： ø62x68 .2mm
Rated / Peak Torque ：10 / 30N·m
Rated Speed ：58.8rpm
Weight ：500g
Rated / Peak Torque Density： 20.0 / 60 .0N·m / Kg
Product Description Dimensions: ø72x76mm
Rated/Peak Torque: 15 / 45N·m
Rated Speed: 58.8rpm
Weight: 720g
Rated/Peak Torque Density: 20.8 / 62.5N·m / Kg
Dimensions: ø52x68mm
Rated / Peak Torque: 4 / 12N·m
Rated Speed: 100rpm
Rated Power: 42W

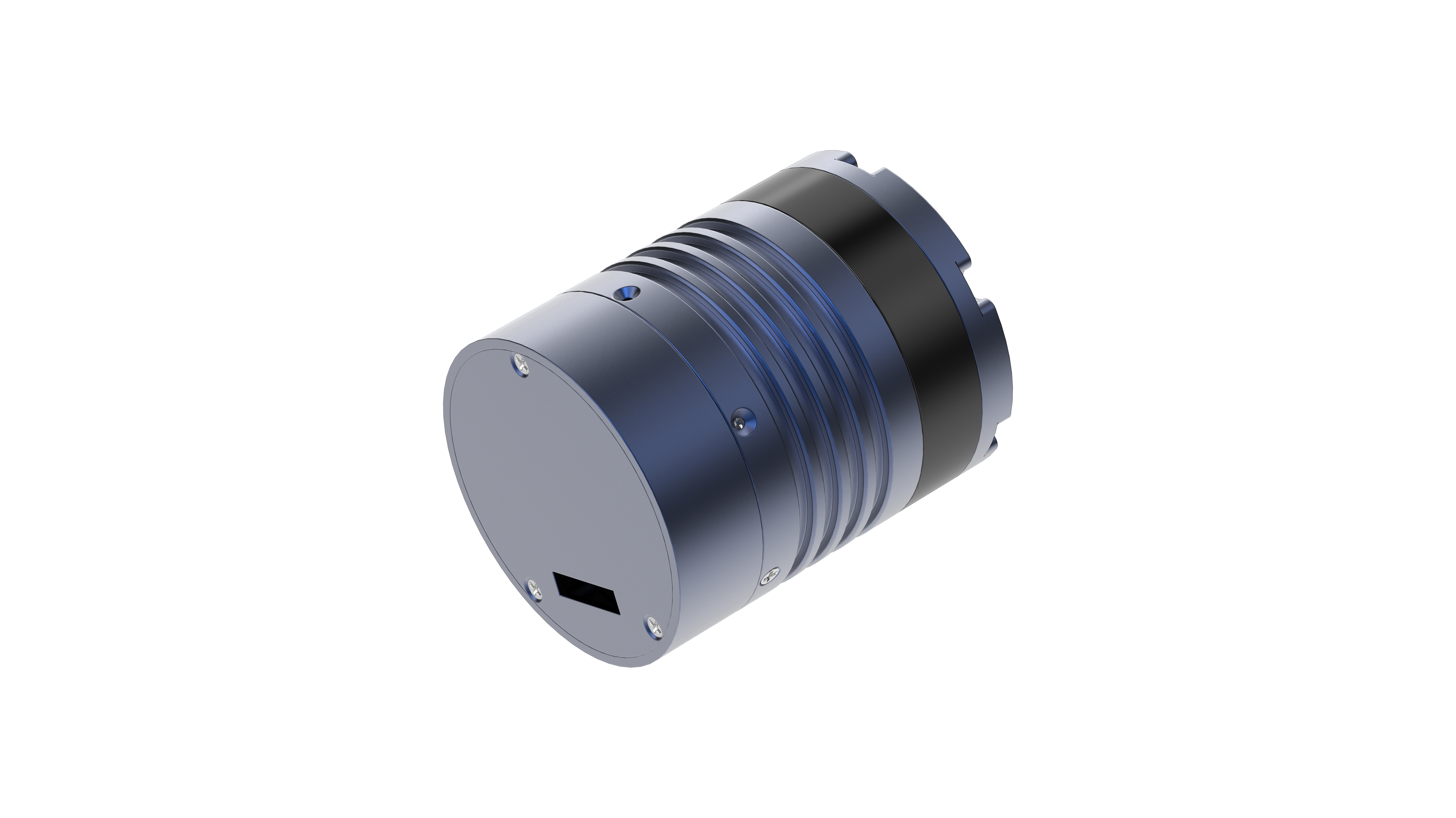

Dimensions: ø64x73mm
Rated / Peak torque: 12 / 36N·m
Rated speed: 110rpm
Rated power: 125W
Dimensions: ø74x80mm
Rated / Peak torque: 20 / 60N·m
Rated speed: 100rpm
Rated power: 208W
Rated / Peak torque: 0.063 / 0.204 N·m
Rated speed: 10500 rpm
Torque constant: 0.039 N·m/A
Rated / Peak torque: 0.13 / 0.38 N·m
Rated speed: 4364 rpm
Torque constant: 0.084 N·m/A
Rated / Peak torque: 0.49 / 1.47 N·m
Rated speed: 4381 rpm
Torque constant: 0.086 N·m/A
Rated / Peak torque: 0.32 / 0.96 N·m
Rated speed: 1750 rpm
Torque constant: 0.12 N·m/A
Rated / Peak torque: 1.05 / 3.15 N·m
Rated speed: 1900 rpm
Torque constant: 0.149 N·m/A
Rated / Peak torque: 1.23 / 3.63 N·m
Rated speed: 2500 rpm
Torque constant: 0.164 N·m/A
Rated / Peak torque: 2 / 6 N·m
Rated speed: 3500 rpm
Torque constant: 0.13 N·m/A
Rated / Peak torque: 2.64 / 8.98 N·m
Rated speed: 700 rpm
Torque constant: 0.58 N·m/A
Rated / Peak torque: 3.9 / 12.68 N·m
Rated speed: 1200 rpm
Torque constant: 0.36 N·m/A
Gearbox stages: 1~4
Reduction ratio: 4~256
Rated torque: 0.004~0.08 (Nm)
Rated speed: 120~9000 (RPM)
Stages: 1~4
Reduction ratio: 4.3~807.1
Rated torque: 0.004~0.08 (Nm)
Rated speed: 28~5500 (RPM)
Gearbox stages: 1~4
Reduction ratio: 4.2~625
Rated torque: 0.008~0.35 (Nm)
Rated speed: 35~5500 (RPM)
Rated load: ≥40kg
Travel rated / peak torque: 6 / 18N·m
Rotation rated / peak torque: 4.5 / 12N·m
Rated / Peak Thrust: 150 / 300N
Rated / Peak Speed: 100 / 200mm/s
Weight: 0.4kg
Rated / Peak Thrust: 650 / 4000N
Rated / Peak Speed: 225 / 330mm/s
Weight: 1.6kg
Rated / Peak Thrust: 1700 / 8000N
Rated / Peak Speed: 180 / 300mm/s
Weight: 2.8kg
