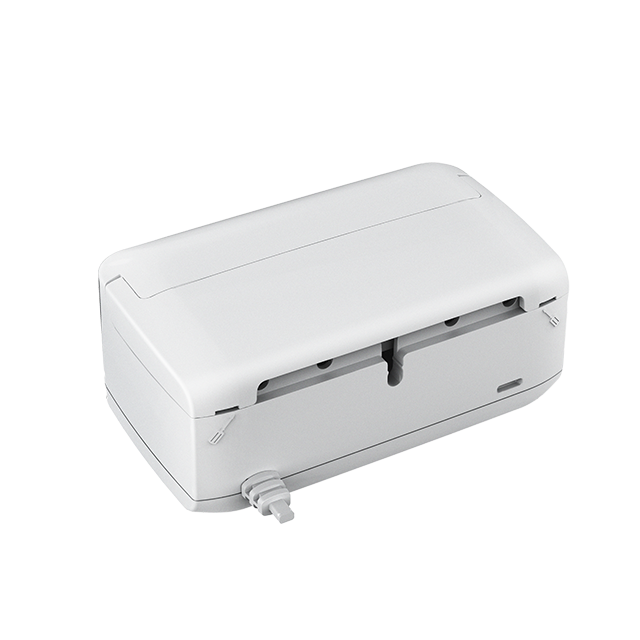

JCB35Q3

· Outputs for actuator: 1-3
· IP grade: IPX4
· Economy
Availability:


  • Power:input_100-240VAC, 50/60 Hz;The output power is 50W in the rated state, and the output power is 120W in the working mode

  • Power point light: Yes

  • Actuator interface: Max.3 channels, ET 6pin waterproof bending plug

  • Handset interface: 1 channel, 10pin crystal head waterproof bending plug

  • Emergency stop switch interface: optional, 01 waterproof bending plug

  • Standby power:Maximum 1W (230V)

  • Color: Grey

  • Control idea:H-bridge, the service life exceeds 20000 cycles

  • Duty cycle: 2/18 @ 25°C; on/off continuous use (120W at 25°C for 120 seconds)

  • Weight: o.6kg (including power cable)

  • IP grade: IPX4

  • Single channel maximum current: 5±0.5A

  • Power management: voltage management can ensure maximum power operation and limit the maximum output power

  • Safety system: switching power supply thermal protection

    switching power supply over-current protection

    switching power supply short circuit protection

    Over current protection of control panel

  • Installation: bed frame (via screws)

  • Line card: All ports have

JCB35Q3规格书封面

Datasheet

Preview/Download
