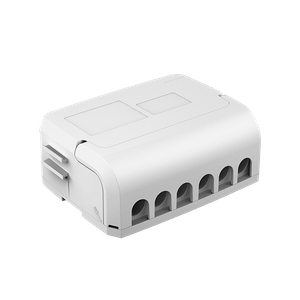

JCB35T

· Outputs for actuator: 1-4
· IP grade: Max. IPX6
· Power supply: SMPS
Availability:


  • Power supply:Input: 100-240 VAC, 50/60 Hz, Output 58W in the rated state, 180W in the working state

  • Power indicator: Yes

  • Actuator plug:Max. 4channels, 4 pin DIN plug

  • Handset plug:1 channel, 9 pin DIN plug

  • Battery plug:1 channel, 6 pin DIN plug(When there is no action of actuator -output 1mA)

  • Standby power:Max. 1W(230V)

  • Color:Gray

  • Control Method:H-bridge(no relay noise), the life-time exceeds 20,000 cycles.

  • Duty Cycle:2/18min @ 25°C; on/off continuous use(180W at 25°C for 120 seconds)

  • Net Weight:0.6kg

  • Compatibility:Support standard actuator and column (inner limit switch)

  • Battery Management: turning off at low voltage; charging and discharging management

  • IP grade:Max. IPX6

  • Operation:Synchronous drive(no feedback)

  • Maximum current: total 10A for all channels

  • Power supply management:Voltage management ensures maximum working power and limit output power up to 200W

  • Safety system: switching power supply thermal protection

  • overheat protection

  • Installation: Compatible with the actuators equipped with special mounting brackets, bed frame (fixed by screws)

  • Cable cover: all ports have

JCB35T规格书封面

Datasheet

Preview/Download
