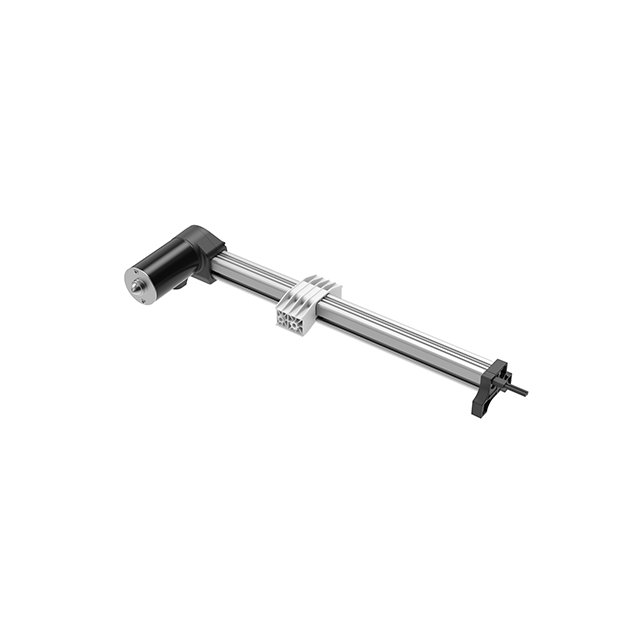

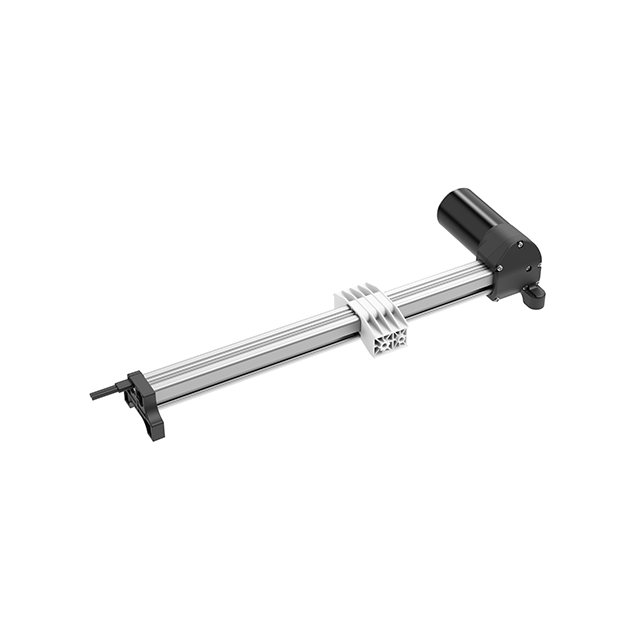

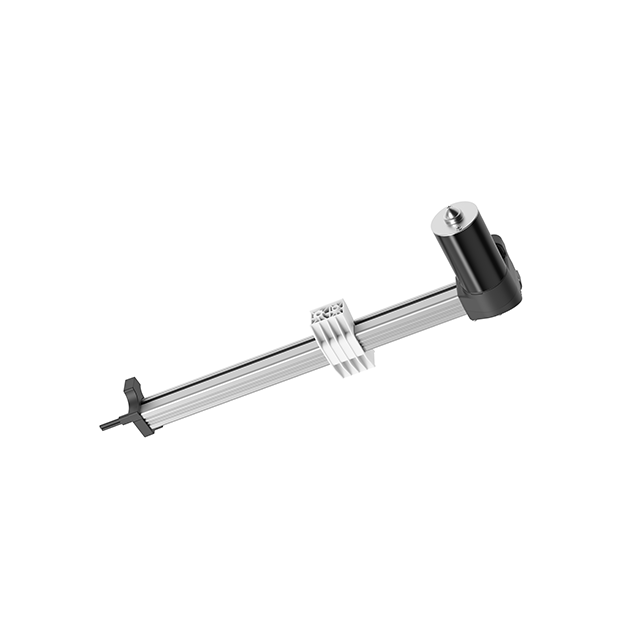

Linear Actuator​ JC35L81

Input Voltage(VDC): 29

Rated Power(W): 100W

Dynamic Load Push(N): 2000N

Dynamic Load Pull(N): 1500N

Self-locking Force(N): ＞1200

Load Noise: <50dB (Ambient Noise ≤40dB)

Installation Dimension（mm): L+S+30

Speed：8-28mm/Optional (Under Load)

Stroke Length(mm)：50-500

Weight: Approx. 2kg (varies by stroke/mounting distance)

Standard Color: Black

Service Life：≥13,000 Times

Hall Feedback：Optional

Protection Class：IP20
