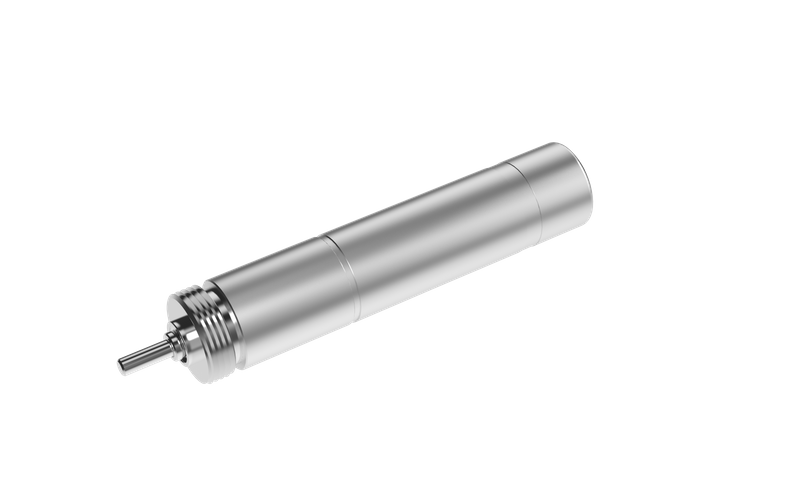

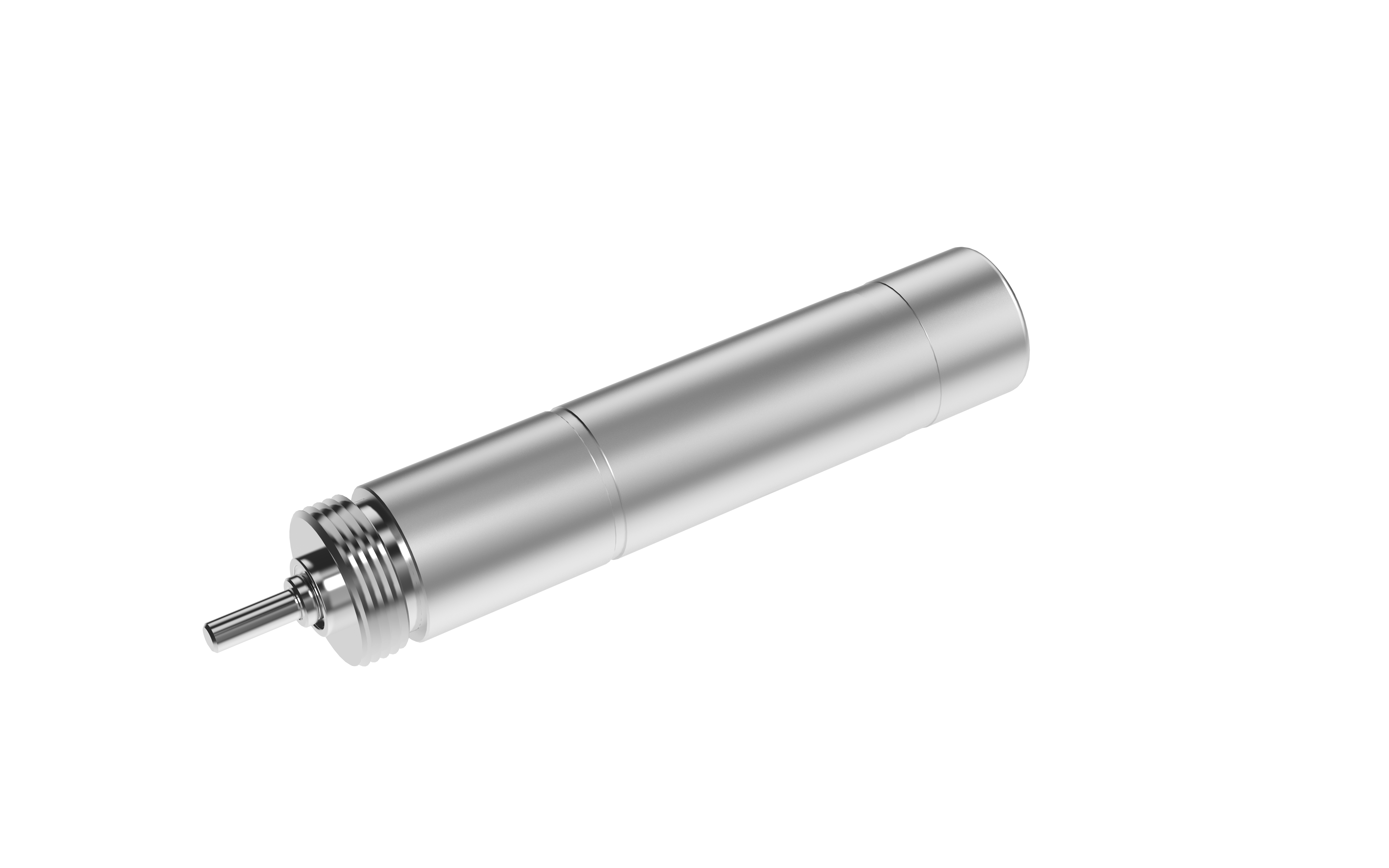

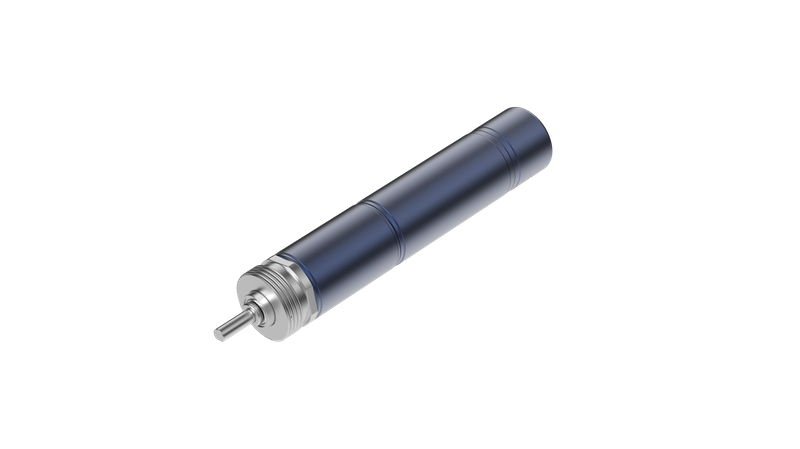

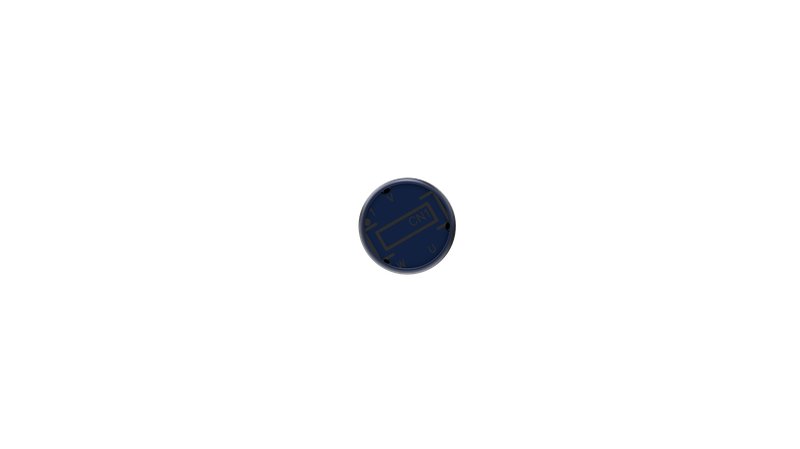

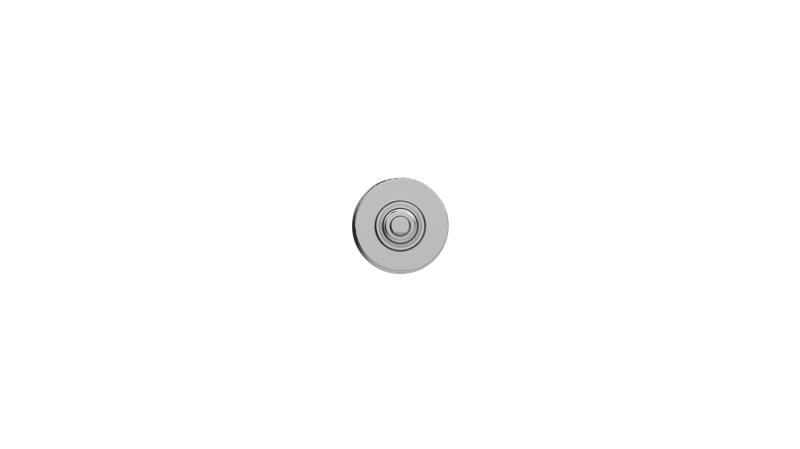

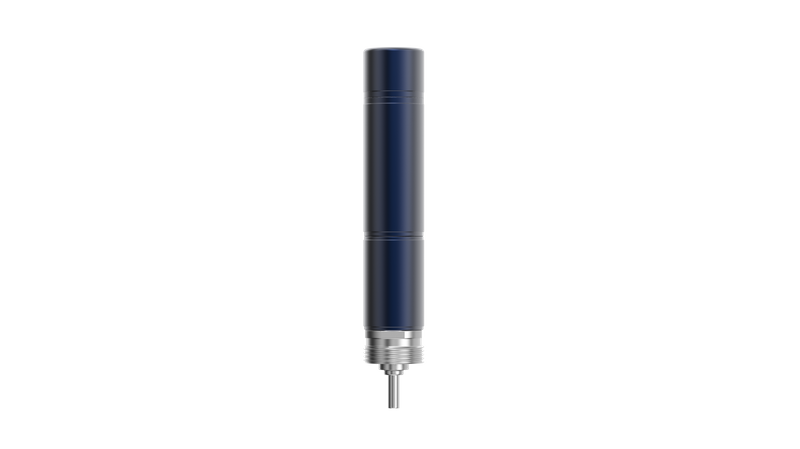

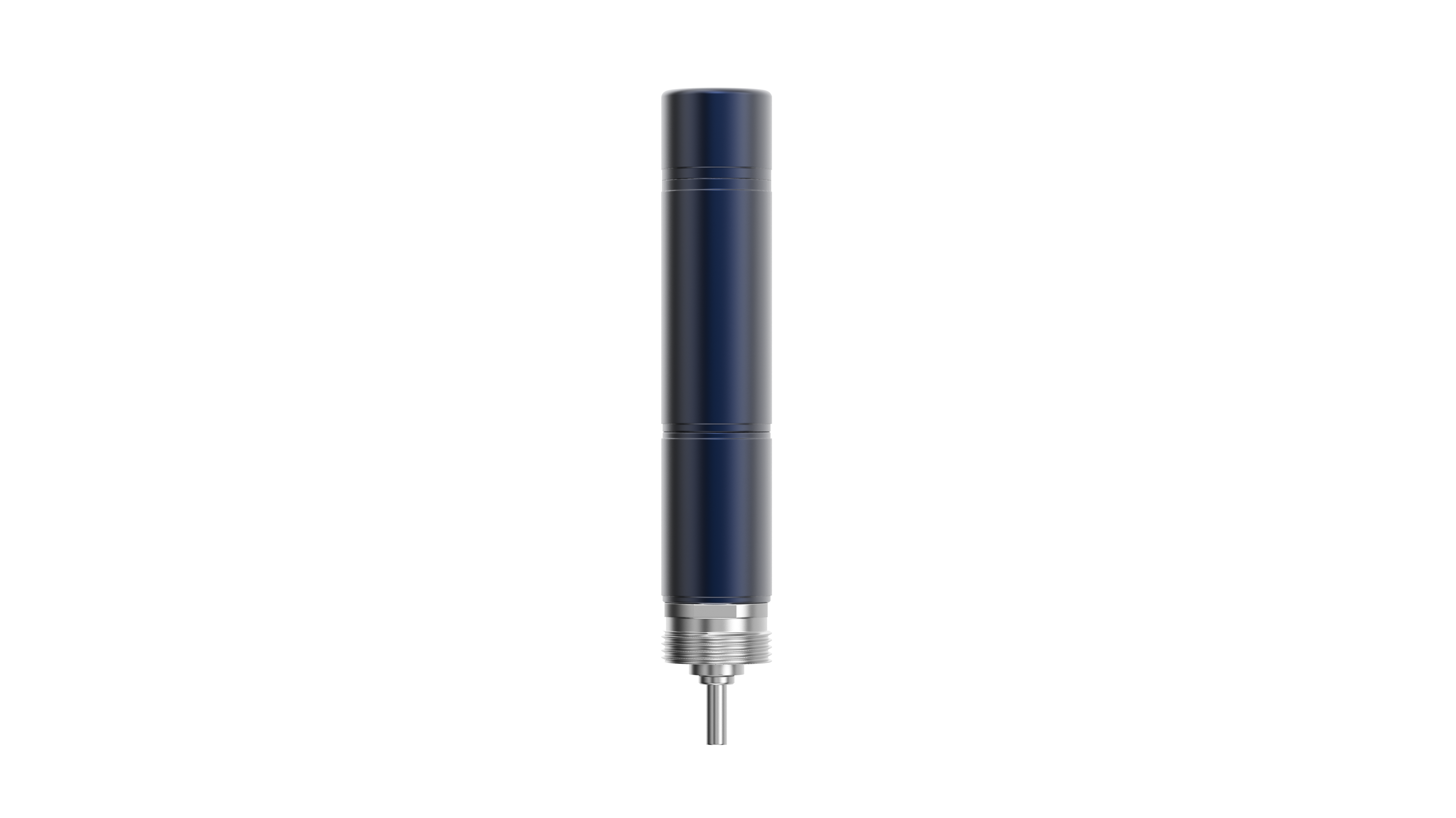

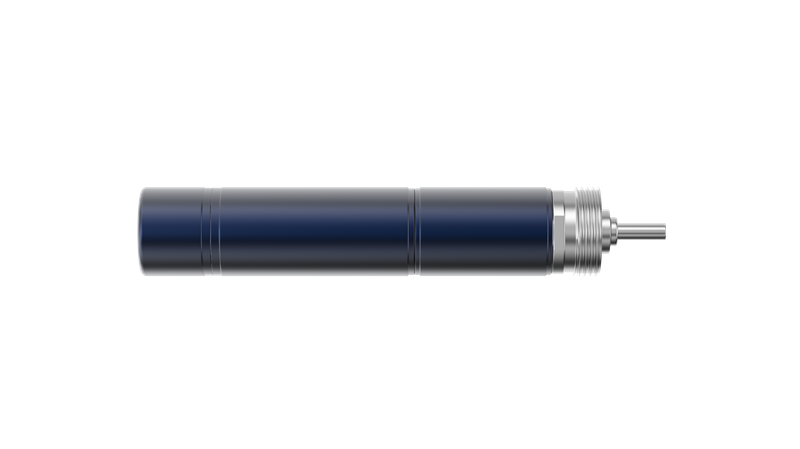

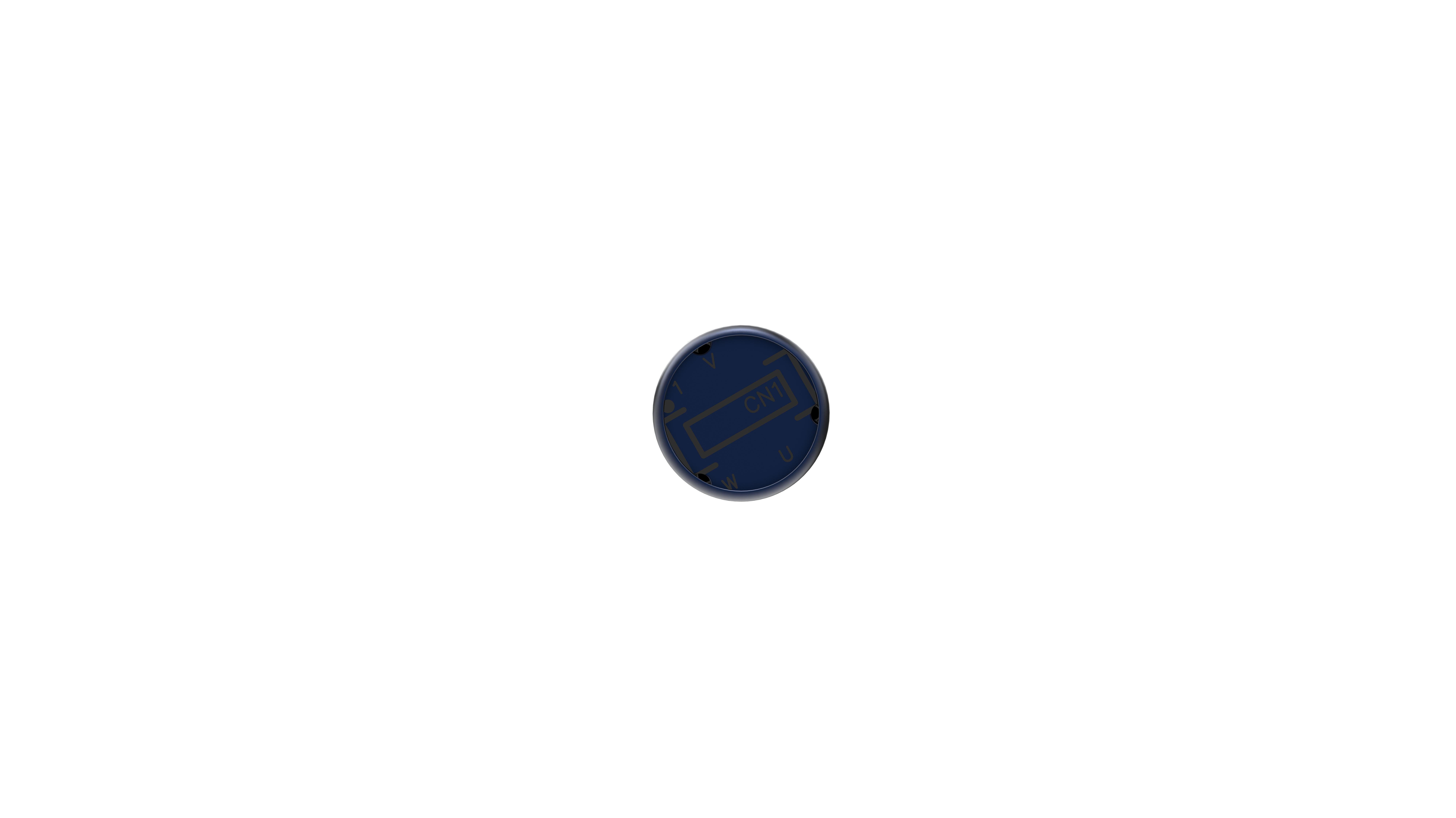

Coreless Motor Assembly JCCA08
Gear Stages：1~4
Reduction Ratio：4~256
Torque：0.004~0.08(Nm)
Load Speed：120~9000(RPM)Availability: Motor Parameters
JCCM082343700H12
JCCM082342200H24
JCCM082735000H24
Length L1(mm)
23
23
27
Rated Voltage(VDC)
12
24
12
No-Load Speed(rpm)
43700
42200
35000
No-Load Current(mA)
105
33.2
70
Rated Speed(rpm)
30000
30000
25000
Rated Torque(mNm)
1
0.877
1.26
Rated Current(A)
0.59
0.198
0.5
Efficiency at Rated Point(%)
>50
>50
> 55
Stall Torque(mNm)
5.8
3.92
4.25
Stall Current(A)
1.5
0.755
1.35
Stator Winding
Temperature Rise(S1)K
＜110
＜110
＜110
Motor Parameters
JCCM082343700H12
JCCM082342200H24
JCCM082735000H24
Length L1(mm)
23
23
27
Rated Voltage(VDC)
12
24
12
No-Load Speed(rpm)
43700
42200
35000
No-Load Current(mA)
105
33.2
70
Rated Speed(rpm)
30000
30000
25000
Rated Torque(mNm)
1
0.877
1.26
Rated Current(A)
0.59
0.198
0.5
Efficiency at Rated Point(%)
>50
>50
> 55
Stall Torque(mNm)
5.8
3.92
4.25
Stall Current(A)
1.5
0.755
1.35
Stator Winding
Temperature Rise(S1)K
＜110
＜110
＜110
Gear Stages
1-Stage
2-Stage
3-Stage
4-Stage
Reduction Ratio
4
16
64
256
Continuous Output Torque(Nm)
0.01
0.02
0.06
0.08
Instantaneous Allowable Torque(Nm)
0.015
0.03
0.09
0.12
Efficiency(%)
90
81
73
65
No-Load Backlash(°)
1.8
2
2.2
2.5
Length(mm)
6
8.5
11
13.5
Output Shaft Axial Play(mm)
≤0.1
≤0.1
≤0.1
≤0.1
Max Axial Load(N)
5
5
5
5
Max Radial Load (at 6mm)(N)
8
8
8
8
Max Mounting Force(N)
5
5
5
5
Gearbox Mass(g)
2.6
3.2
3.8
4.4
Operating Temperature Range(℃)
-40~100
-40~100
-40~100
-40~100
Gear Stages
1-Stage
2-Stage
3-Stage
4-Stage
Reduction Ratio
4
16
64
256
Continuous Output Torque(Nm)
0.01
0.02
0.06
0.08
Instantaneous Allowable Torque(Nm)
0.015
0.03
0.09
0.12
Efficiency(%)
90
81
73
65
No-Load Backlash(°)
1.8
2
2.2
2.5
Length(mm)
6
8.5
11
13.5
Output Shaft Axial Play(mm)
≤0.1
≤0.1
≤0.1
≤0.1
Max Axial Load(N)
5
5
5
5
Max Radial Load (at 6mm)(N)
8
8
8
8
Max Mounting Force(N)
5
5
5
5
Gearbox Mass(g)
2.6
3.2
3.8
4.4
Operating Temperature Range(℃)
-40~100
-40~100
-40~100
-40~100
Mode
Rated
Voltage(V)
No-Load Data
Load Data
Total
LengthL
(mm)
Continuous
Output
Torque(Nm)
Instantaneous
Allowable
Torque(Nm)
Reduction Ratio
No-Load
Speed(rpm)
No-Load
Current(mA)
Load
Speed(rpm)
Load
Current(A)
Torque (Nm)
JCCA0829004H24-4
12
10925
105
7500
0.59
0.004
29
0.01
0.015
4
JCCA0832013H24-16
12
2731
105
1875
0.59
0.013
31.5
0.02
0.03
16
JCCA0834045H24-64
12
683
105
469
0.59
0.045
34
0.06
0.09
64
JCCA0837080H24-256
12
171
105
117
0.45
0.080
36.5
0.08
0.12
256
Notes:
1.The above parameters of the coreless motor module are based on the JCCM082343700H12 motor. When using other motors, please consult the manufacturer for module parameters.
2."H" denotes the inclusion of a Hall effect sensor.
Mode
Rated
Voltage(V)
No-Load Data
Load Data
Total
LengthL
(mm)
Continuous
Output
Torque(Nm)
Instantaneous
Allowable
Torque(Nm)
Reduction Ratio
No-Load
Speed(rpm)
No-Load
Current(mA)
Load
Speed(rpm)
Load
Current(A)
Torque (Nm)
JCCA0829004H24-4
12
10925
105
7500
0.59
0.004
29
0.01
0.015
4
JCCA0832013H24-16
12
2731
105
1875
0.59
0.013
31.5
0.02
0.03
16
JCCA0834045H24-64
12
683
105
469
0.59
0.045
34
0.06
0.09
64
JCCA0837080H24-256
12
171
105
117
0.45
0.080
36.5
0.08
0.12
256
Notes:
1.The above parameters of the coreless motor module are based on the JCCM082343700H12 motor. When using other motors, please consult the manufacturer for module parameters.
2."H" denotes the inclusion of a Hall effect sensor.
