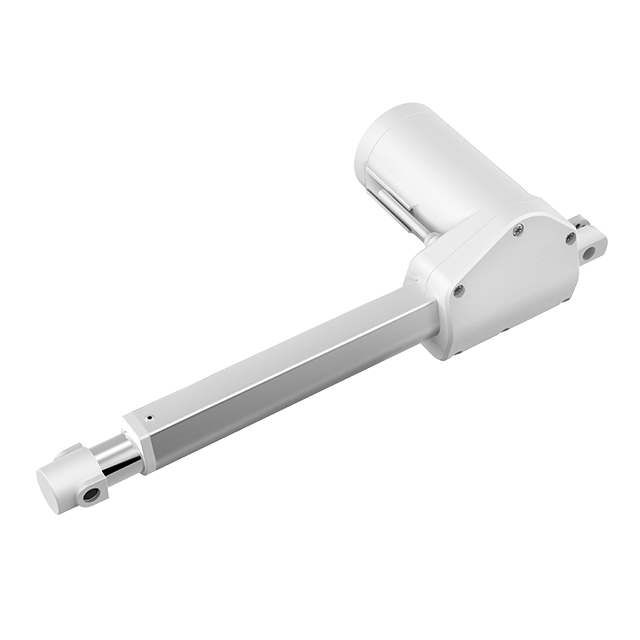

JC35L22

· Max. load:6000N
· IP grade: Max. IP66
Availability:

  • Load in push: 6000N、4000N、2500N

  • Load in pull: 4000N、2000N

  • Color: grey /black

  • IP grade: Max. IP66

  • Stroke length:


    6000N:25-200mm  in steps of 4mm

    4000N:25-200mm  in steps of 4mm

    2500N:200-415mm  in steps of 4mm

  • Installation dimensions

    6000N/4000N:

    L=225 (25≤S<50)

    L=S+175 (50≤S<200);

    2500N(Long stroke, only used in heli-helical applications):

    L=225 (25≤S<50)

    L=S+175 (50≤S<200);

    L=S+185(200≤S≤415)

  • Noise level: ≤48dB (environmental noise≤40dB)

  • Only push: optional

  • Hall sensor: optional

  • Signal switch : optional

  • Built-in electrical limit switch

  • Static bending moment: lateral load is not allowed
