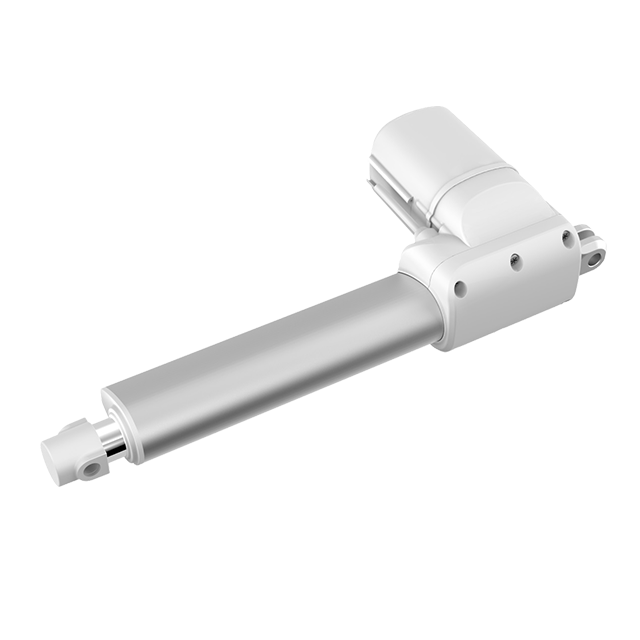

JC35L9

· Max. load:6000N
· IP grade: Max. lPX6
Availability:


  • Load in push:6000N,4000N

  • Color: Gray /Black

  • IP grade:  Max. IPX6

  • Input voltage: 24VDC

  • Stroke length:

    6000N:50-250mm (in steps of 4mm)

    4000N:50-500mm (in steps of 4mm)

  • Installation dimensions:

    L=225(S≤50)

    L=S+175(50<S≤200)

    L=S+185(200<S≤300)

    L=S+195(300<S≤400)

    L=S+205(400<S≤500)

  • Noise level: ≤48dB, ( environmental noise≤40dB)according to DS/EN ISO3743-1

  • Safety nut: optional

  • Hall sensor : optional

  • Only push : optional

  • Built-in electrical limit switch.

  • Weight: About 2kg (different stroke length and installation dimensions with different weight )

  • Static bending moment: lateral load are not allowed.
