Home / Products / Wheelchair motor / Scooter brush controller S45-D1

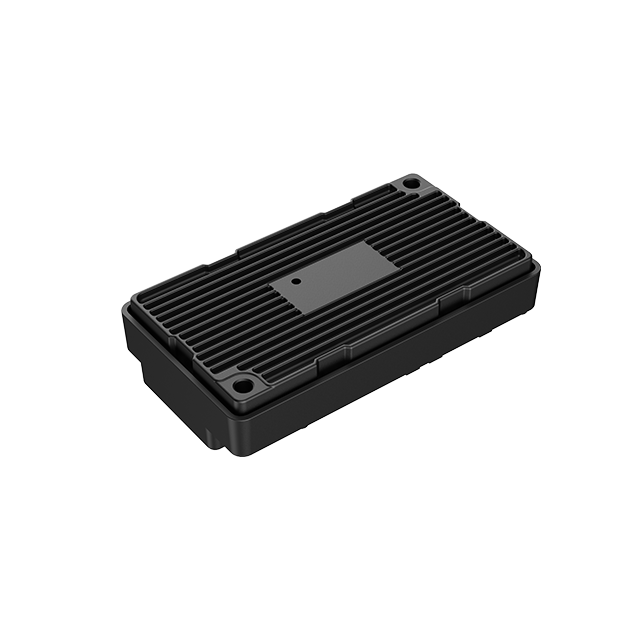

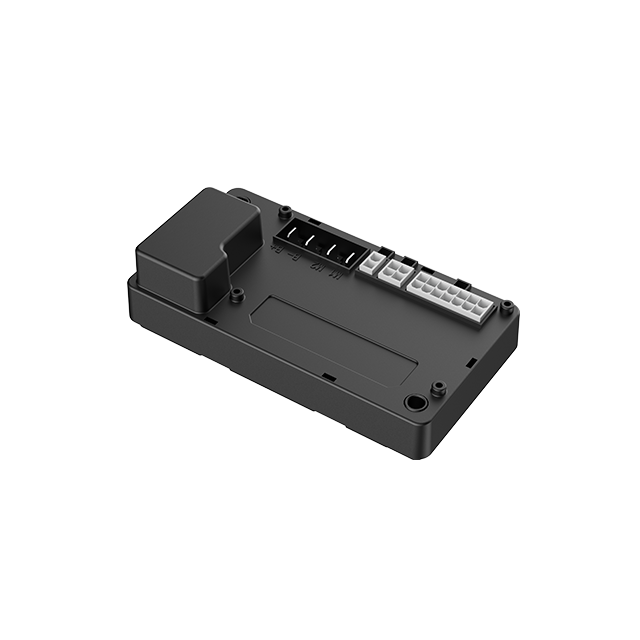

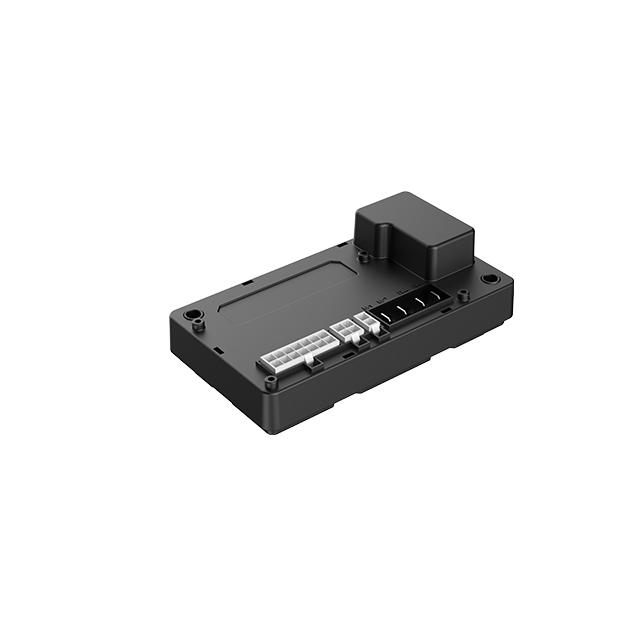

Scooter brush controller S45-D1

· Input voltage: 24V
· PWM operating frequency: 16K


Availability:
  • Advanced driving algorithms and intelligent control ensure that the scooter is safer and more comfortable when driving in any environment;

  • IR compensation technology and boost current are used to ensure that the scooter maintains stable speed when crossing obstacles or climbing hills;

  • Bring the vehicle to a complete stop before applying electromagnetic braking, ensuring safe parking under any circumstances; ◆    Anti-rollback/forward-roll function provides smooth and safe vehicle control on slopes;

  • Equipped with protection functions such as overvoltage, undervoltage, overcurrent, overload and overheating to ensure that the mobility scooter is more reliable and safer;

  • The power-off protection function ensures that once the power is cut off during driving, the scooter can be controlled and can slowly decelerate to a stop;

  • Optional speed inhibit input provides flexibility to reduce speed or prevent certain drive conditions;

  • Optional automatic deceleration for fast turns to prevent rollover;

  • The high-speed downhill automatic deceleration function and coasting speed limit function effectively reduce the occurrence of accidents;

  • The controller has a self-diagnosis function, making the factory installation and debugging of the scooter more convenient and faster;

  • Equipped with a dedicated programmer, it is convenient for vehicle manufacturers to program and debug to meet the various needs of different users.


Input voltage

24V

PWM operating frequency

16K

Output current

45A

B+,B- logic port current

<9A

KSI input current

<150mA

Logic terminal input current

1mA

Warning output current

15mA

BDI output voltage

0-5V

LED status light driving current

15mA

Electromagnetic brake voltage

24V

Operating lever signal

0-5KΩ/0-5V

Operating lever type

Single ended/unidirectional/bidirectional

Working environment temperature

-25℃-50℃

Storage environment temperature

-40℃-65℃

Sealing

IPX5

Weight

0.3kg

Size

72*131*39mm
