Complete Guide to Hospital Patient Lift Solutions

With the development of society, the issue of aging has become increasingly severe, especially in the healthcare and nursing fields, where caring for and looking after patients has become more and more important. The mobility and daily care of patients have become great challenges for family members and caregivers, requiring immense physical and mental effort. In order to alleviate these pressures, the Patient Lift System has become an essential auxiliary device in the nursing industry.

The Patient Lift System provides great convenience for the mobility of patients. It not only improves the comfort of patients but also ensures the safety of caregivers and family members. Through precise and stable lifting technology, patients can transfer their positions without external pulling, thereby reducing the risk of physical strain for both caregivers and patients.

This article will provide a detailed introduction to the Patient Lift System, including its definition, types, and application scenarios, hoping to offer some reference and help for families and healthcare institutions in need.

What is a Patient Lift?

A patient lift usually is a medical mechanical device used to lift and move a patient safely from one place to another, such as from a bed to a wheelchair, chair, stretcher, or bath.They are handy for patients with limited mobility due to age, illness, or disability.   It can be powered or manual, and common setups include floor-mounted and ceiling/overhead systems. It is not the same as a stair lift or elevator.

Types of Patient Lift

1. Bath Lifts

Bath lifts are designed to help users enter and exit a bathtub safely. They are usually compact, water-resistant, and easy to operate. Some models are powered, while others are manual.

Features:
Bath lifts are often lightweight, foldable, and made with moisture-resistant materials. They allow a patient to lower into and rise out of the bath with less physical effort.

Suitable for:
Bath lifts are ideal for elderly users, people with limited balance, and individuals recovering from surgery who still want to maintain personal hygiene independently or with minimal assistance.

2. Toilet Lifts

A toilet lift supports a patient when sitting down on or standing up from a toilet. This type of lift is especially helpful for people with weak leg strength or joint pain.

Features:

Toilet lifts are usually space-saving and designed for daily bathroom use. Some models integrate a lifting seat, while others are used with a sling or support frame.

Suitable for:
They are a good choice for seniors, patients with arthritis, post-operative users, and people with mobility restrictions who need extra support in the bathroom.

3. Ceiling-Mounted Lifts

A ceiling-mounted lift, also called an overhead lift, is installed on a rail system fixed to the ceiling. It moves patients smoothly between different transfer points, such as bed to wheelchair or wheelchair to bathroom.

Features:
This type of lift saves floor space, offers smooth movement, and is often used in long-term care facilities or accessible homes. It can support a wide range of transfer tasks with less manual handling.

Suitable for:
Ceiling-mounted lifts are ideal for patients with severe mobility limitations, people who need frequent transfers, and care environments where space efficiency is important.

4. Electric Patient Lifts

Electric patient lifts use a motor to raise and lower the patient, making transfers easier for both the patient and the caregiver.

Features:
They are simple to operate, reduce physical strain, and often come with rechargeable batteries, emergency stop functions, and adjustable lifting arms. Electric models are widely used because they offer consistent and controlled lifting.

Suitable for:
These lifts are suitable for elderly patients, disabled users, bariatric patients, and care settings where frequent lifting is required.

5. Floor Lifts

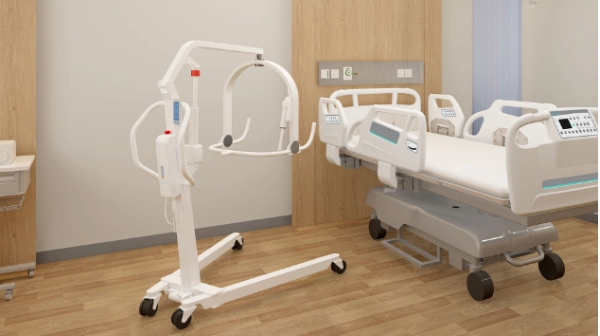

A floor lift is a mobile patient lift that moves on casters and can be positioned anywhere in the room. It is one of the most common patient lift types in hospitals and home care.

Features:
Floor lifts are flexible, easy to move, and capable of transferring patients from the bed, chair, floor, or toilet area. They are available in manual and electric versions.

Suitable for:

Floor lifts are ideal for home caregivers, nursing staff, and patients who need safe transfer support but do not require a fixed overhead system.

6. Lift Slings

Although not a lift by themselves, lift slings are a critical part of the patient lifting system. They support the patient’s body during the transfer process.

Features:
Lift slings come in different sizes and materials, including full-body slings, toileting slings, and bathing slings. The right sling improves comfort, safety, and stability.

Suitable for:
Lift slings are used for nearly all patients who rely on mechanical lifting, especially those who cannot support their own weight during transfers.

7. Pool Lifts

Pool lifts are designed to help users enter and exit swimming pools safely. They are commonly found in rehabilitation centers, hotels, public pools, and therapy facilities.

Features:
Pool lifts are often rust-resistant, waterproof, and built for safe movement around wet environments. Many models are powered and can rotate the patient into the water.

Suitable for:
They are best for people with disabilities, elderly users, and patients receiving aquatic therapy or rehabilitation.

8. Hoyer Lifts

A Hoyer lift is a well-known type of patient lift, often used as a general term for mechanical transfer lifts. It can be manual or powered and is commonly used to move patients between bed, chair, commode, or wheelchair.

Features:
Hoyer lifts are known for their sturdy frame, sling support, and ability to handle different transfer situations. They are available in many configurations for home and clinical use.

Suitable for:
Hoyer lifts are suitable for patients with very limited mobility, individuals recovering from serious illness or surgery, and caregivers who need a dependable transfer solution.

9. Stand-Up Patient Lifts

Stand-up patient lifts help patients who can bear some weight but need support when rising to a standing position.

Features:
These lifts typically include knee support, a secure handle, and a lifting mechanism that assists with standing and short transfers. They are more active-assist devices than full-body lifts.

Suitable for:
They are ideal for patients with partial mobility, stroke survivors, rehabilitation users, and elderly individuals who can stand with assistance.

10. Bariatric Lifts

Bariatric lifts are heavy-duty patient lifts designed for larger patients who require stronger support and wider lifting capacity.

Features:
These lifts have reinforced frames, higher weight limits, and wider slings. They are built for safety, durability, and stable transfers.

Suitable for:
Bariatric lifts are best for overweight or bariatric patients who need a stronger and more reliable lifting solution.

JIECANG’s Role in the Patient Lift System

JIECANG provides the motion and control core for patient lift systems. According to JIECANG’s official patient lift solution, the system is built around linear actuators, control boxes, and controls/handsets to deliver smooth, safe, and quiet patient transfer in home care and medical environments. JIECANG also offers a dedicated ceiling lift system for overhead transfer applications.

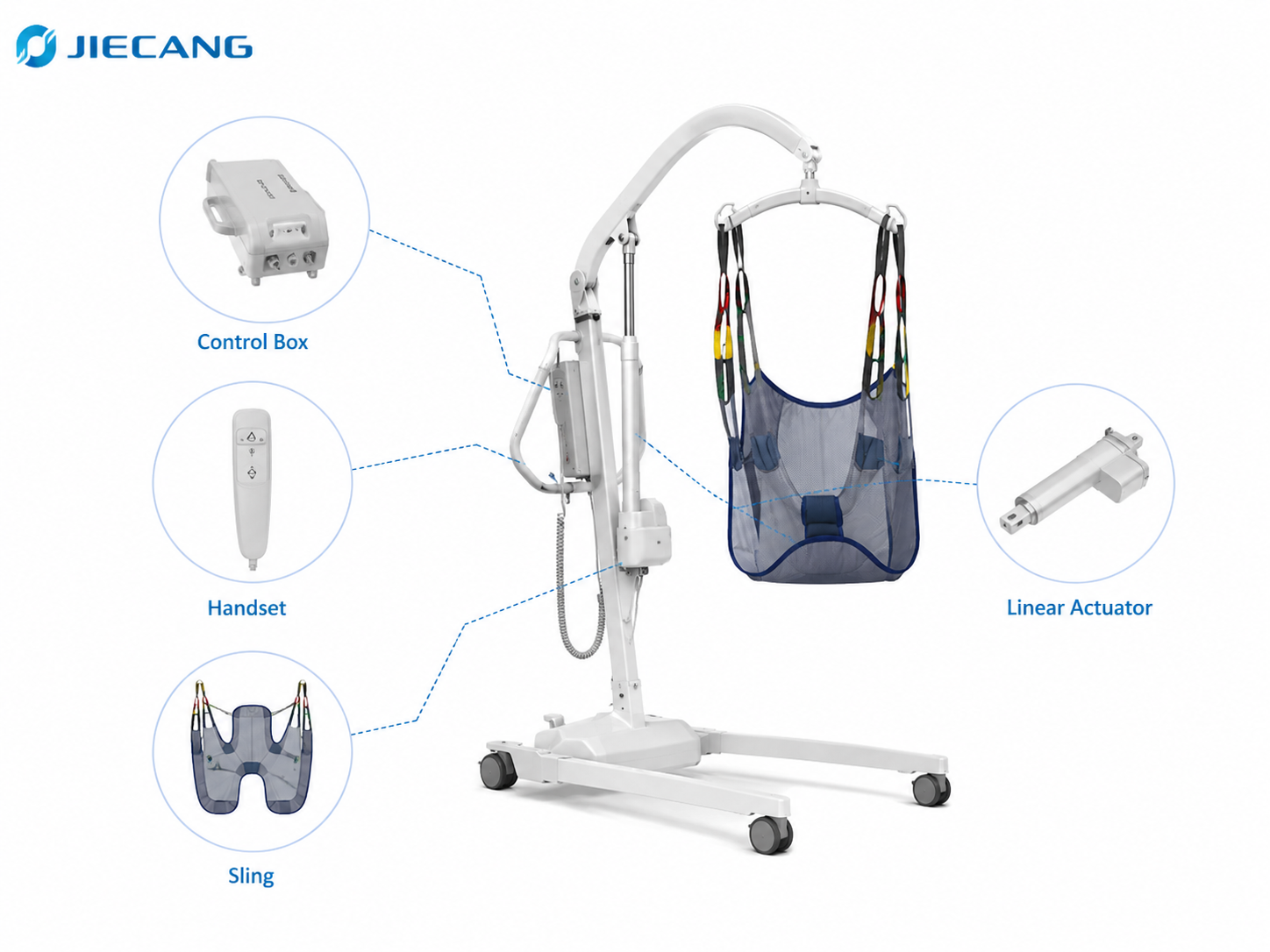

Main JIECANG Components in a Patient Lift System

1) Control Box
JIECANG’s JCB35K2-B is a control box targeted for patient lifts. It supports 1–2 actuator outputs, includes emergency stop, low-voltage alarm, and over-current protection, and is designed for safe lifting control. JIECANG also lists JCB35K3 as part of its patient lift solution.

2) Linear Actuator — the lifting drive
For the lifting motion itself, JIECANG offers heavy-duty actuators such as JC35L28, which is available in a patient lift version with a stroke of 50–400 mm, a max load of 10,000 N, and IPX6 protection. JIECANG also offers JC35EN3A for medical care applications, with up to 6000 N load capacity and 24V operation.

3) Overhead / Ceiling Lift Module

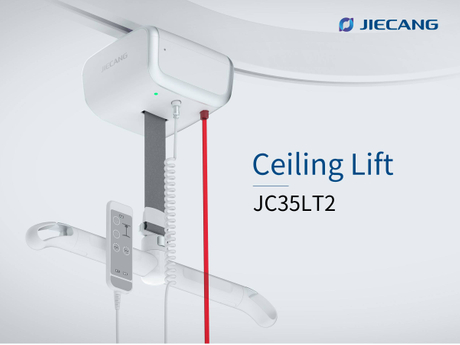

For ceiling-mounted transfer systems, JIECANG’s JC35LT2 overhead patient lift is designed for daily patient transfer. It supports a 200 kg load, has a 2100 mm stroke, and uses battery plus electronic control systems for smooth movement.

4) Control / Handset
JIECANG’s patient lift solution also includes controls such as JCH35A10, which help caregivers operate the system and adjust the height or position of the transfer device. The official solution page describes the control side as enabling seamless operation and precise sling positioning.

5) Sling and transfer accessories
In a complete patient lift system, the sling is a key supporting part. JIECANG’s patient lift guide states that a typical system usually consists of an electric push rod, control box, remote control, and sling.

Benefits of Patient Lift

The most important reason for using a patient lift is to protect the safety of both patients and healthcare workers. Manually lifting or transferring a patient can place a heavy physical burden on caregivers and increase the risk of injury. A patient lift helps reduce this strain, allowing caregivers to focus on the patient without worrying about their own safety.

Patient transfer lifts are equipped with safety features such as safety straps and locking mechanisms to keep the patient secure during transfer and minimize the risk of injury.

In operating rooms, ceiling lift systems allow surgical staff to move and position patients efficiently and safely for surgery and treatment, while also reducing the risk of staff injury.

If you want to learn more about patient lift, watch this video:Patient Mobility: Using the Maxi Move Powered Patient Lift

Conclusion

In conclusion, the patient lift is an important tool in modern nursing, which not only helps caregivers improve work efficiency and reduce physical strain but also provides better care experiences for patients. Whether in hospitals, nursing homes, or homes, the Patient Lift System can greatly improve the quality of care and ensure the safety of patients.
