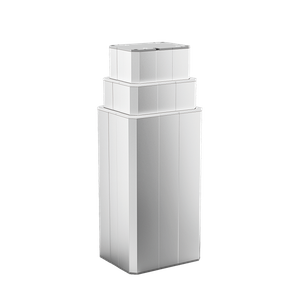

Lifting Column JC35EA3C

Input Voltage: 29VDC

Max. Dynamic Load Push(N):: 2500N

Stroke Length: 100≤S≤400

Installation Dimension: L=S/2+150(L≥250)

Current At No Load≤2.5A

Current At Full Load:

3C≤5.0A

3C-R≤7.0A

Speed At No Load：19mm/s±10%

Speed At Full Load：

3C：16mm/s±10%

3C-R：14mm/s±10%

Static Bending Moment:

3C: 500NM

3C-R:700NM

Dynamic Bending Moment:

3C:250NM

3C-R: 350NM

Colour: Aluminium//White/Black

Protection Class: Max. IPX6(Inverted), requires sealing 4 mounting‑hole screw threads.

Self-locking force: mechanical self-locking 2000N, electronic self-locking 2500N

Weight: about 10.8kg (Stroke/mounting distance: 400/350mm, different stroke/mounting distance, weight difference)
