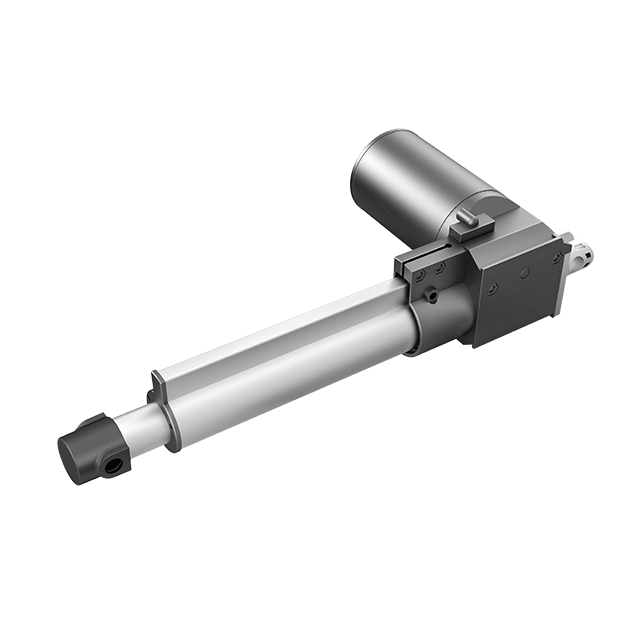

JC35D

· Max. load: 6000N
· IP grade: lP43
Availability:


  • Load in push: 6000N;4000N; 3000N; 2000N; 1500N; 1000N; 750N

  • Color: gray /black

  • IP grade: IP43

  • Stroke length:

    6000N:50-400mm;

    4000N:50-400mm;

    3000N:50-600mm;

    2000N:50-600mm;

    1500N:50-600mm;

    1000N:50-600mm;

    750N:50-600mm;

  • Installation length:


    L=S+195(S≥400)

    L=225(S≤50)

    L=S+175(50<S<400)

  • Noise level: non load≤48dB,( environmental noise≤40dB)

  • Only push no pull: optional

  • Hall sensor: optional

  • Reed switch: optional

  • Built-in electronic limit switches

  • Weight: About 1.5kg (different stroke/retracted length with different weight )

  • Static bending moment: lateral load are not allowed



JC35D规格书封面

Datasheet

Preview/Download
