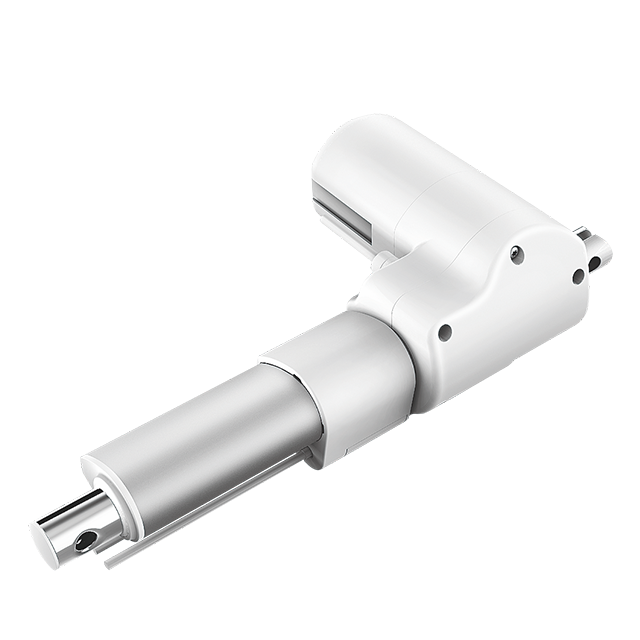

JC35L10

· Max. load: 4000N
· IP grade: IP54
· Quick release
Availability:


  • Load in push:4000N, 3000N

  • Color: Gray

  • IP grade: IP54

  • Stroke length:

    4000N:30-400mm (in steps of 4mm)

    3000N:30-400mm (in steps of 4mm)

  • Installation dimensions:

    L=235(S≤50)

    L=S+185(50<S≤400)

  • Noise level: ≤48dB, ( environmental noise≤40dB)

  • Safety nut: optional

  • Hall sensor : optional

  • Only push : optional

  • Built-in electrical limit switch.

  • Weight: About 1.5kg (different stroke length and installation dimensions with different weight )

  • Static bending moment: lateral load are not allowed



JC35L10规格书封面

Datasheet

Preview/Download
