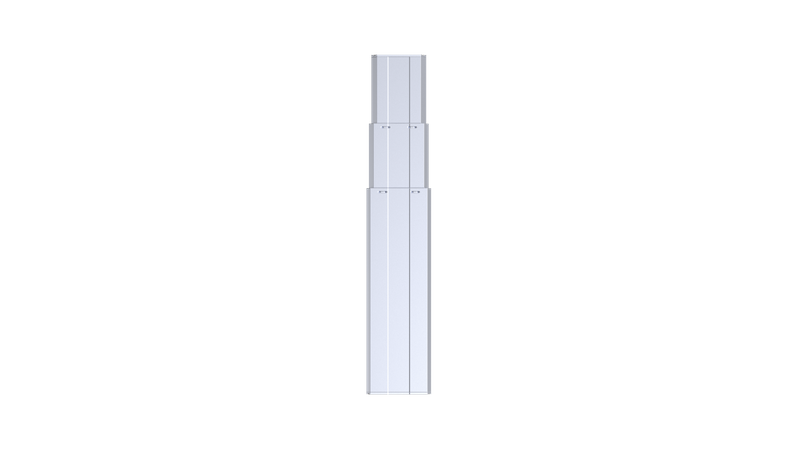

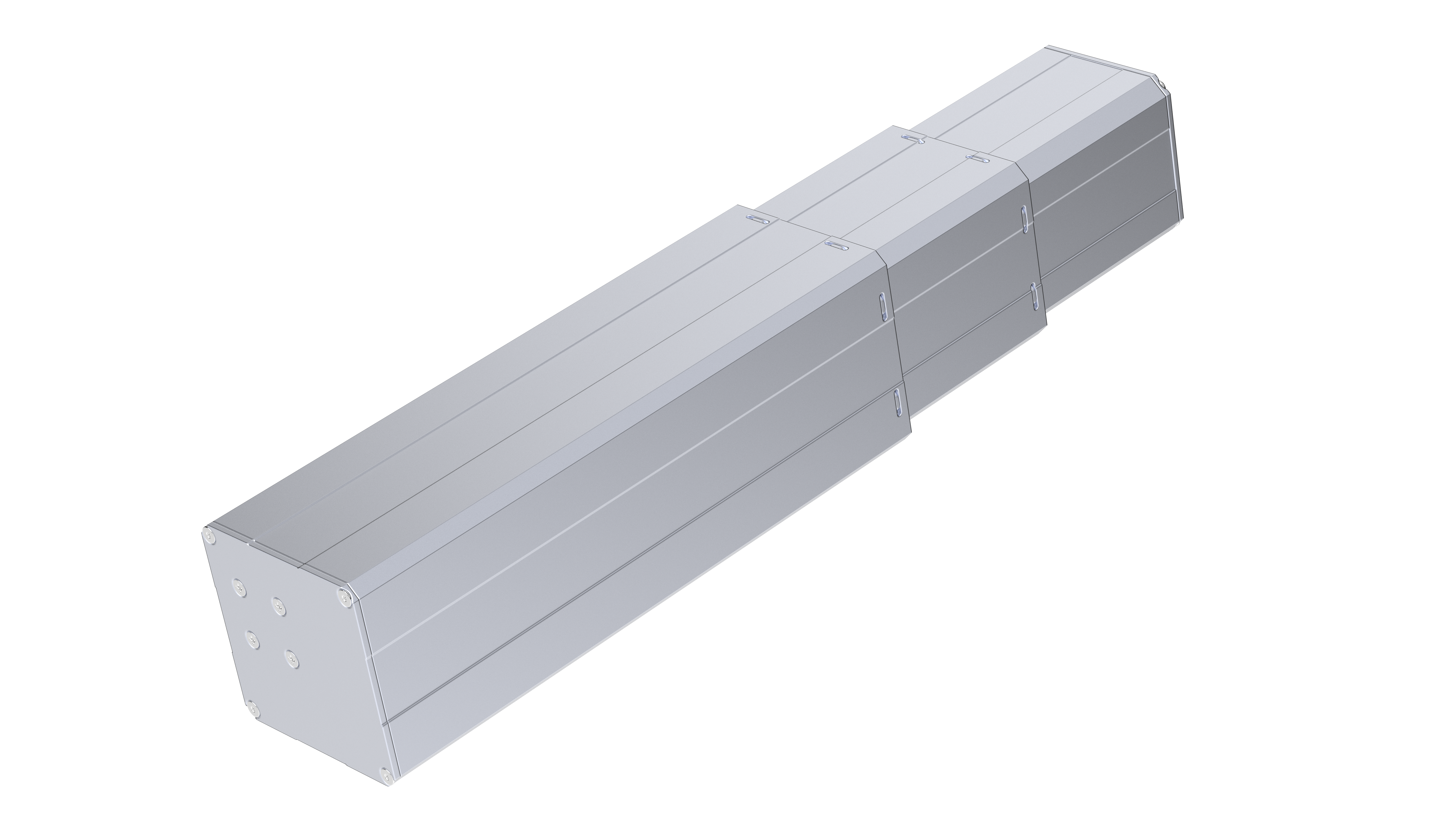

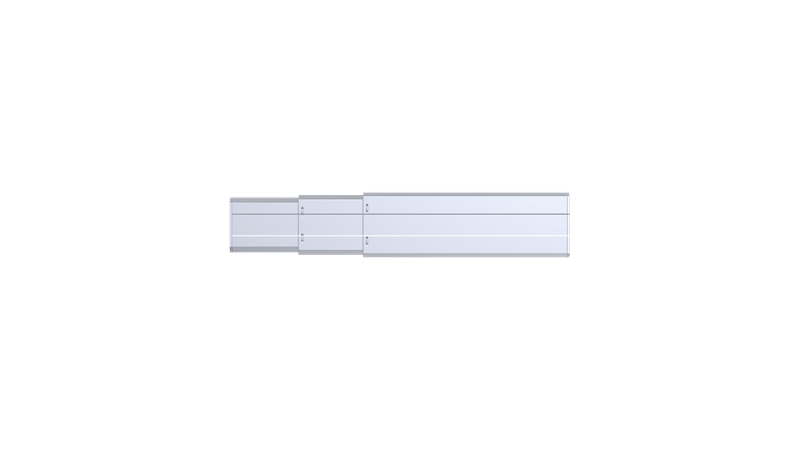

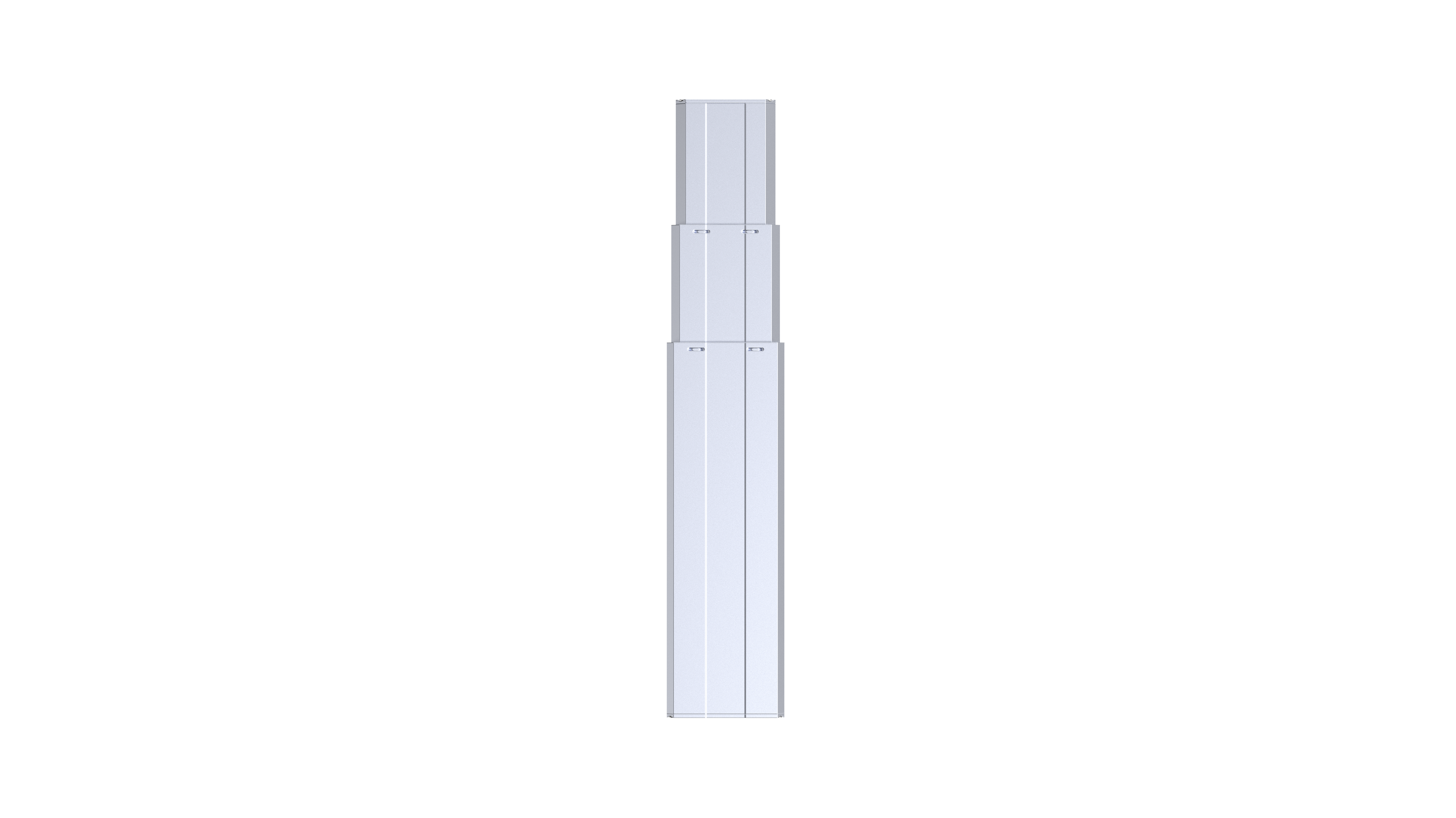

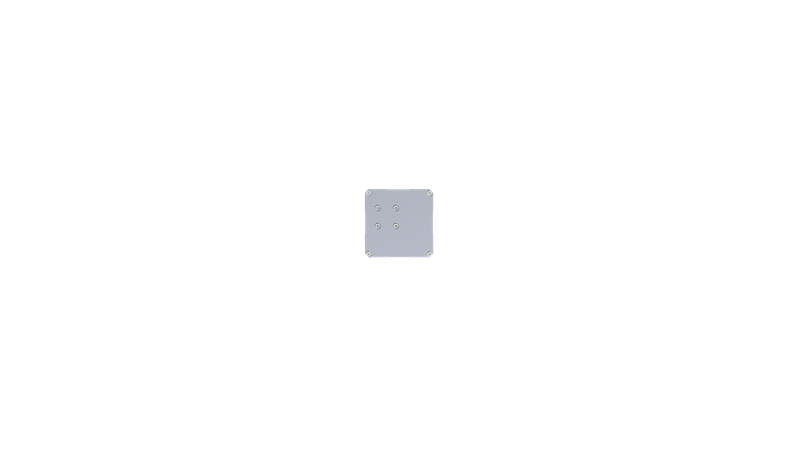

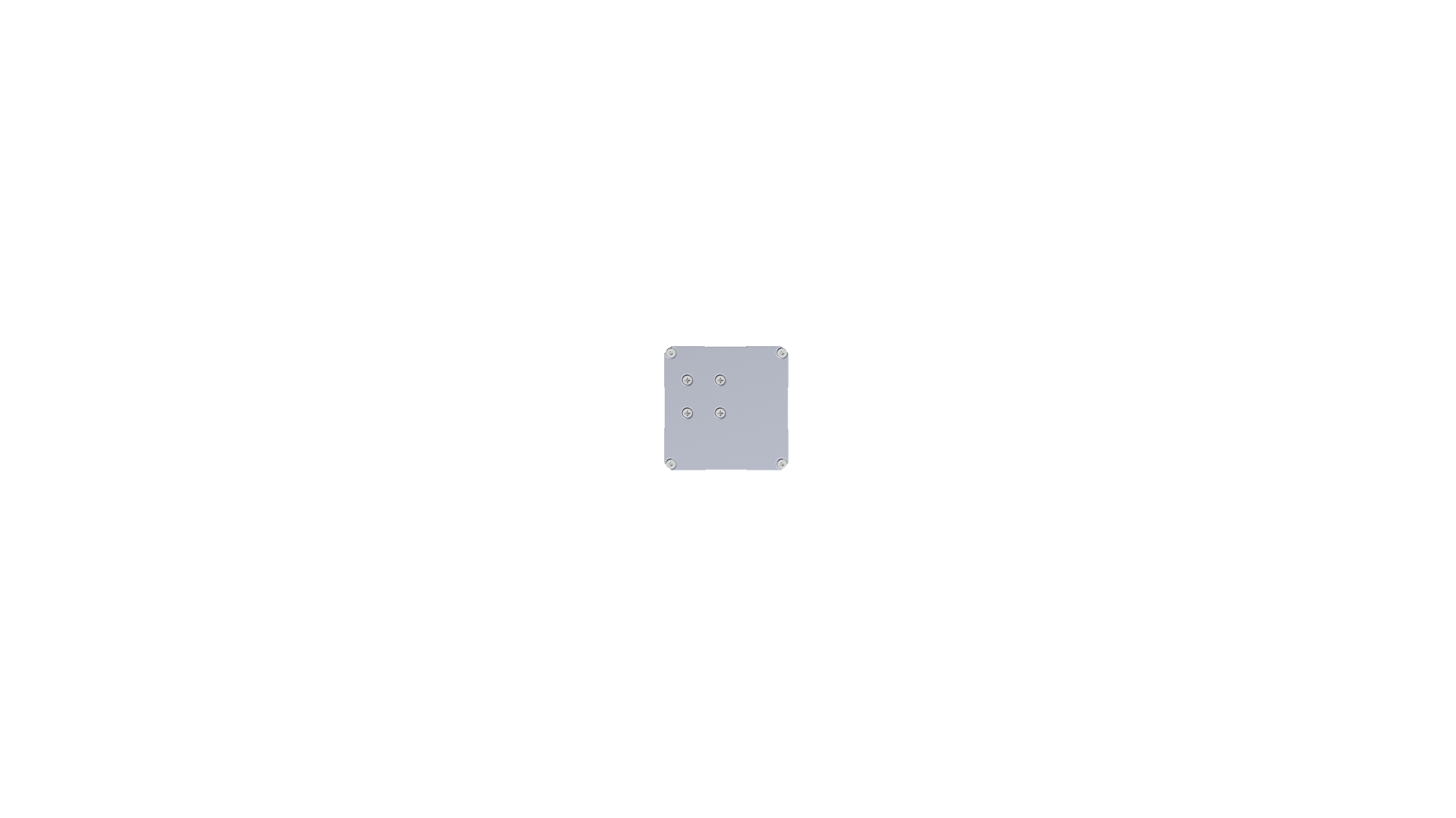

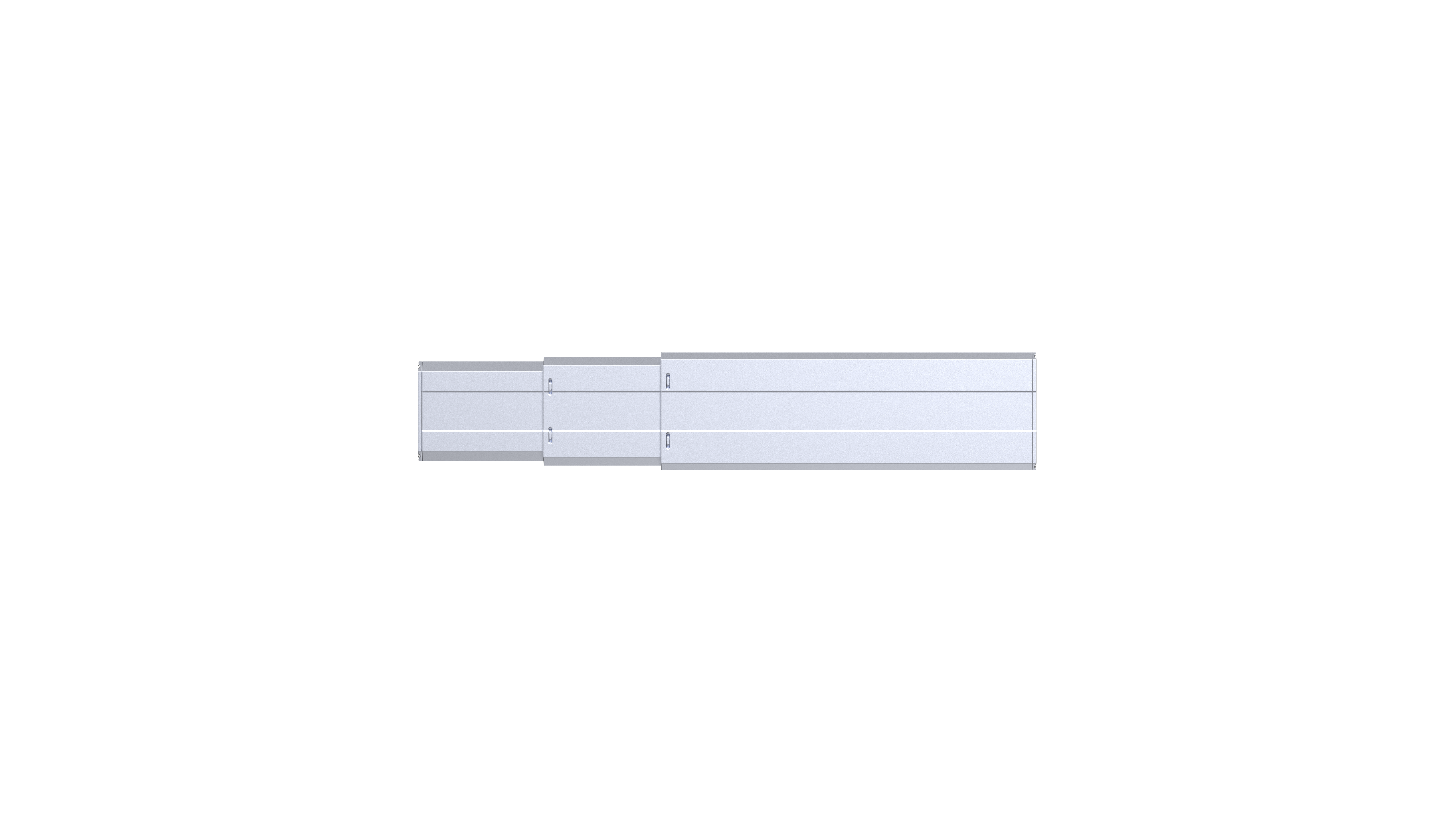

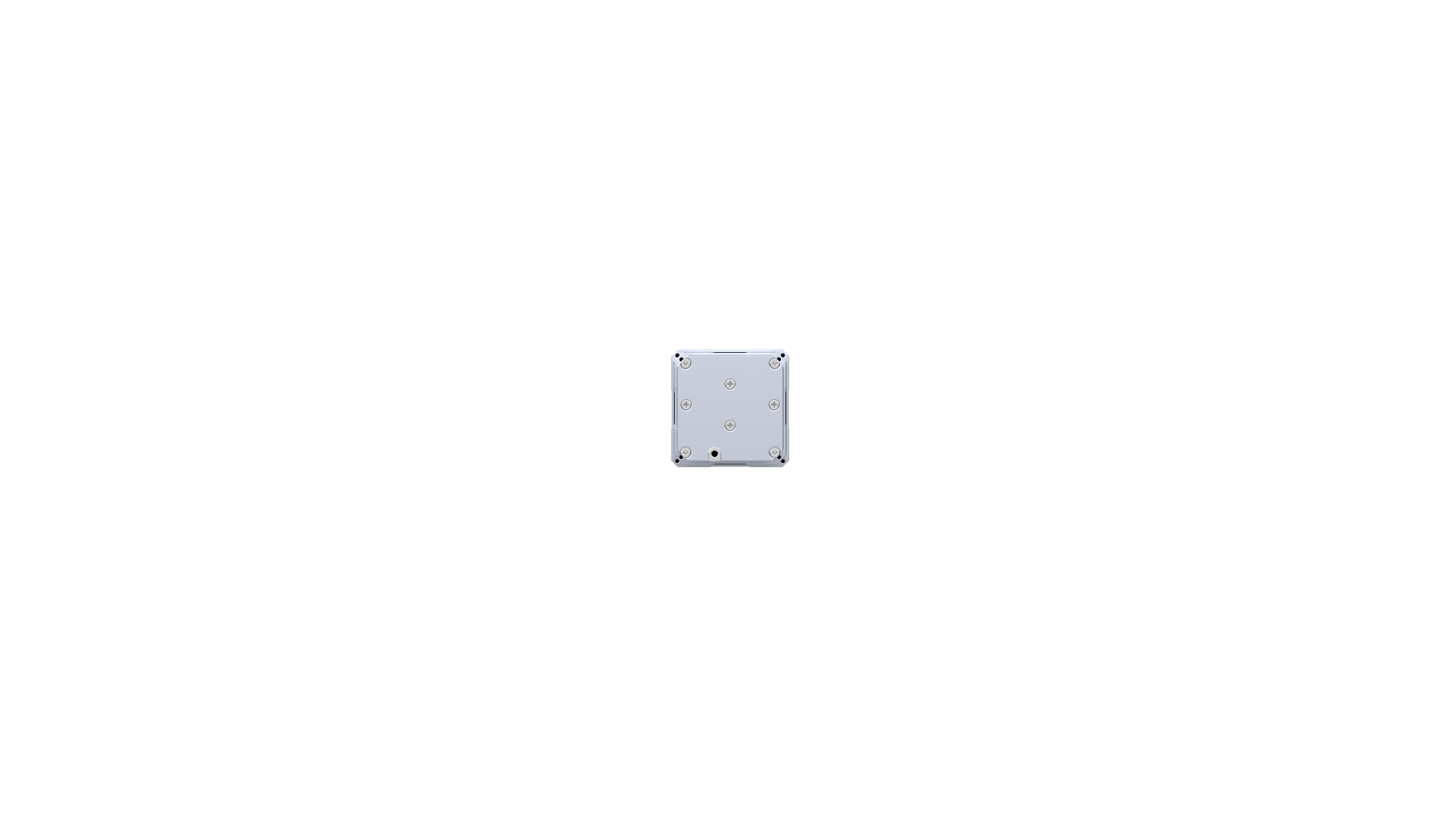

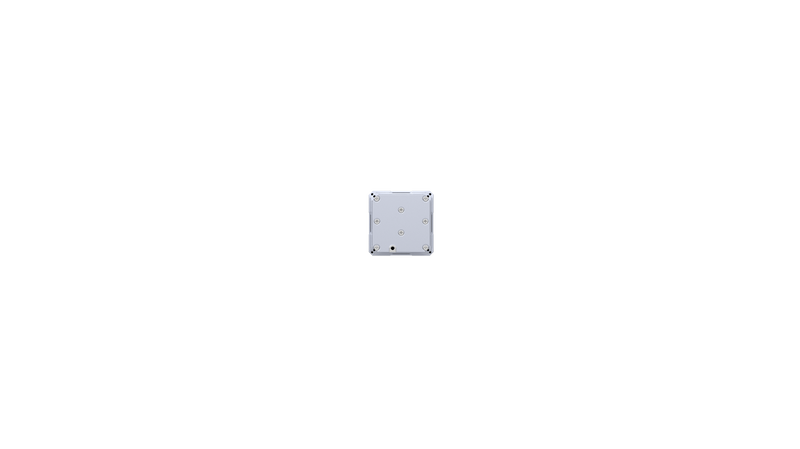

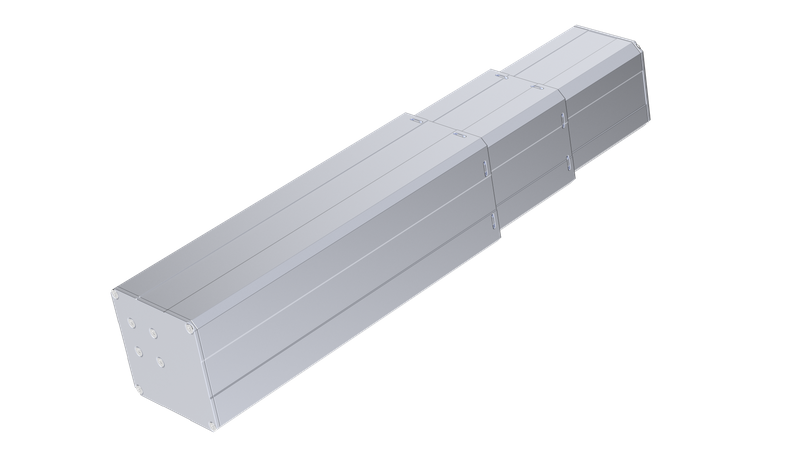

Lifting Column JCLCTN-3

Max. Static Load(N)

1000

Max. Speed(mm/s)

60

Stroke / Mounting Distance(mm)

L=200+S/2(100≤S≤800)

Voltage(V)

48 / 24

Operating Temperature(℃)

-10～＋55

Signal Feedback

EtherCAT / 485

Max. Overall Dimensions(mm)

150*150 / 129*129 / 120*120

Motor Type

Servo Motor
