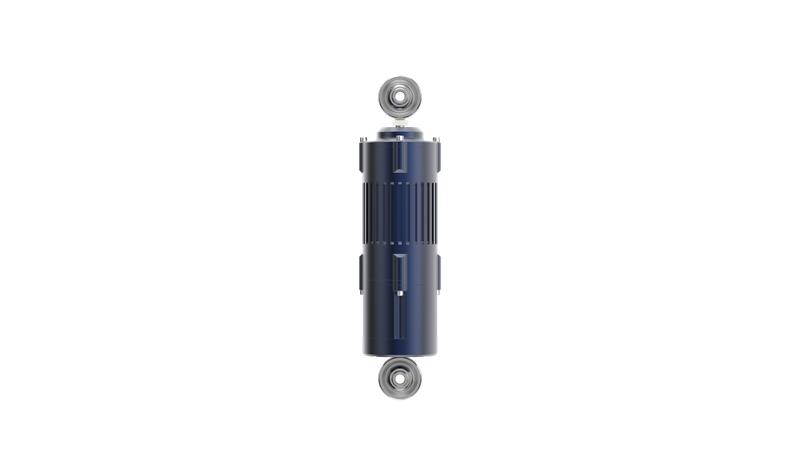

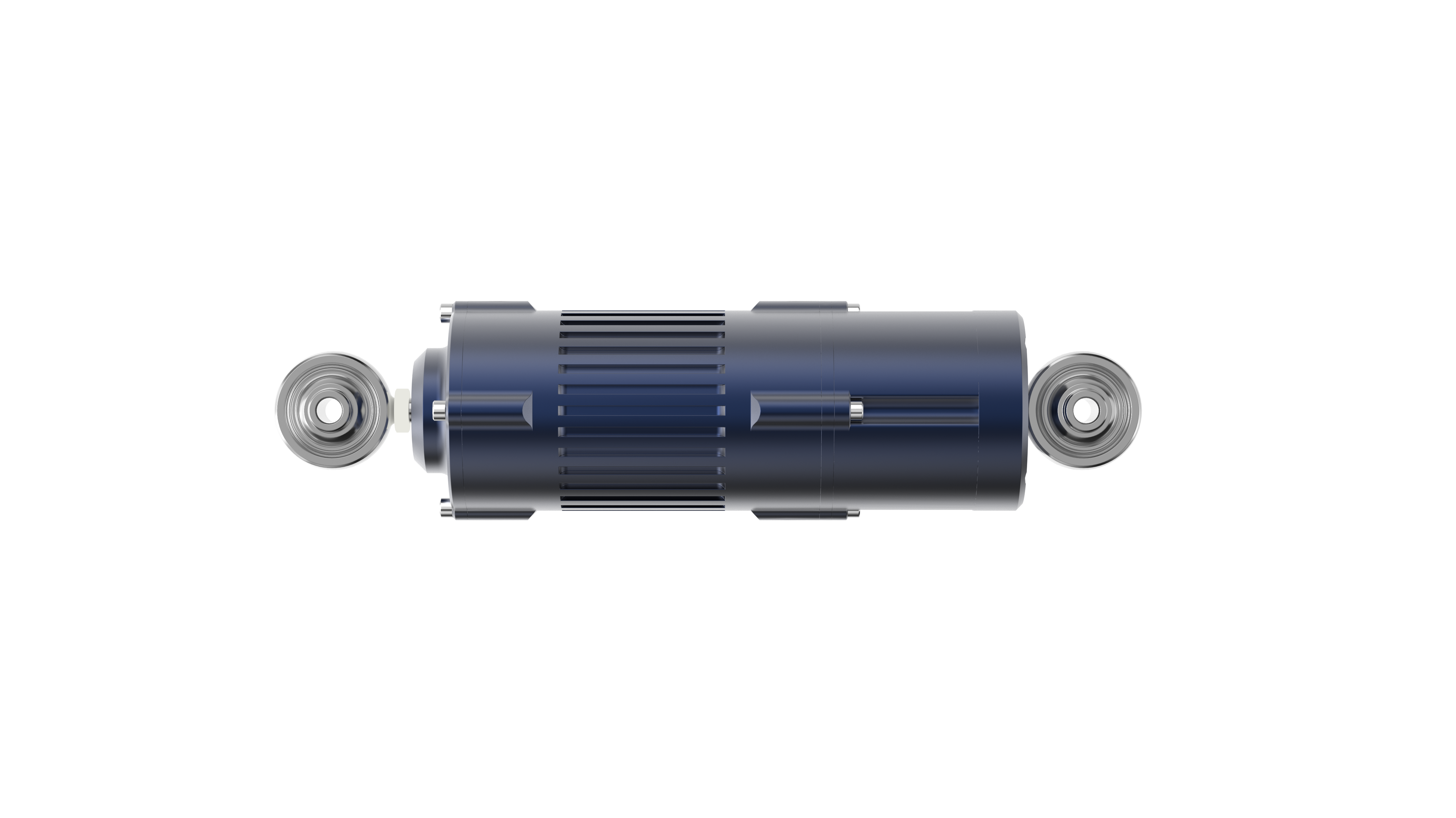

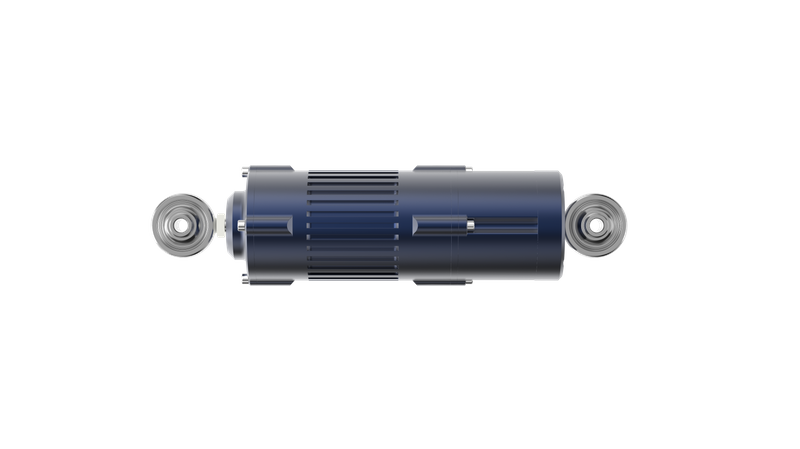

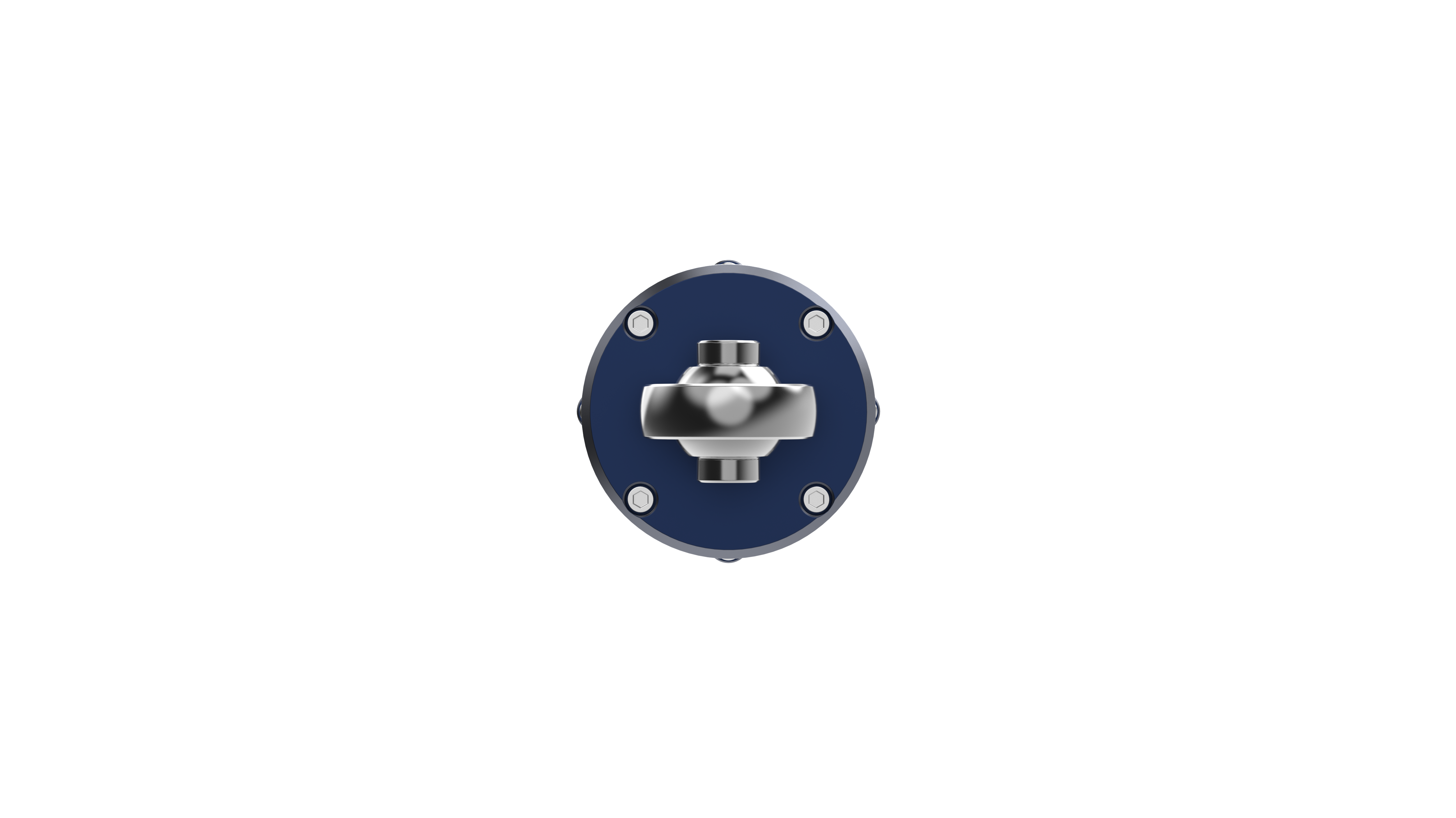

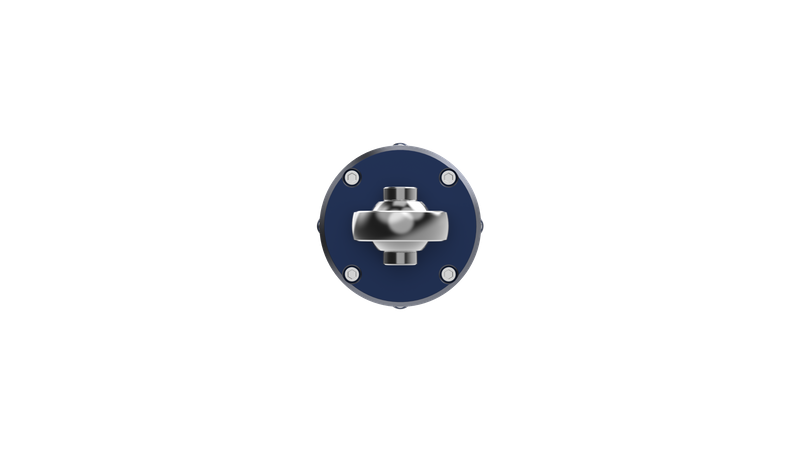

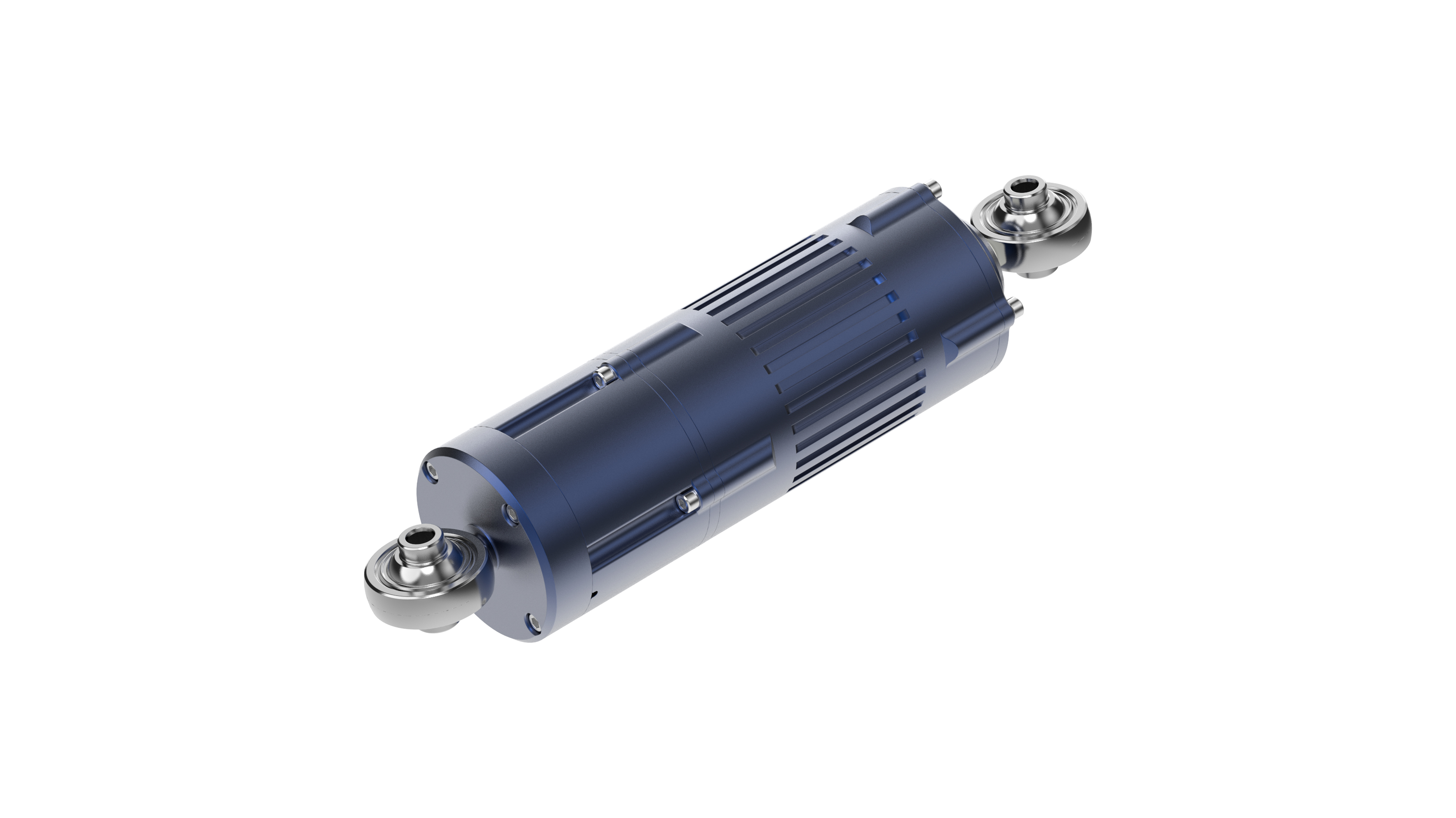

Linear Actuator JCLA-32-120

Max. Thrust(N)

300

Axial Play(mm)

0.02

Rated Linear Speed(mm/s)

100

Electrical

Parameters

Rated Voltage(VDC)

48

Max. Linear Speed(mm/s)

200

Rated Output Power(W)

25

Stroke(mm)

45

Rated Torque(N·m)

0.07

Encoder Type

Magnetic Encoder

Instantaneous

Max. Torque(N·m)

0.15

Encoder Resolution

17-bit

Rated Current(A)

0.9

Weight(kg)

≈0.4

Instantaneous

Max. Current(A)

1.8

Mounting

Dimensions

Axial Mounting

Distance(mm)

120

Rated Speed(rpm)

3000

Fixed End Mounting

Hole Diameter(mm)

φ4

Max. Speed(rpm)

6000

Moving End Mounting

Hole Diameter(mm)

φ4

Number of Rotor Pole Pairs
