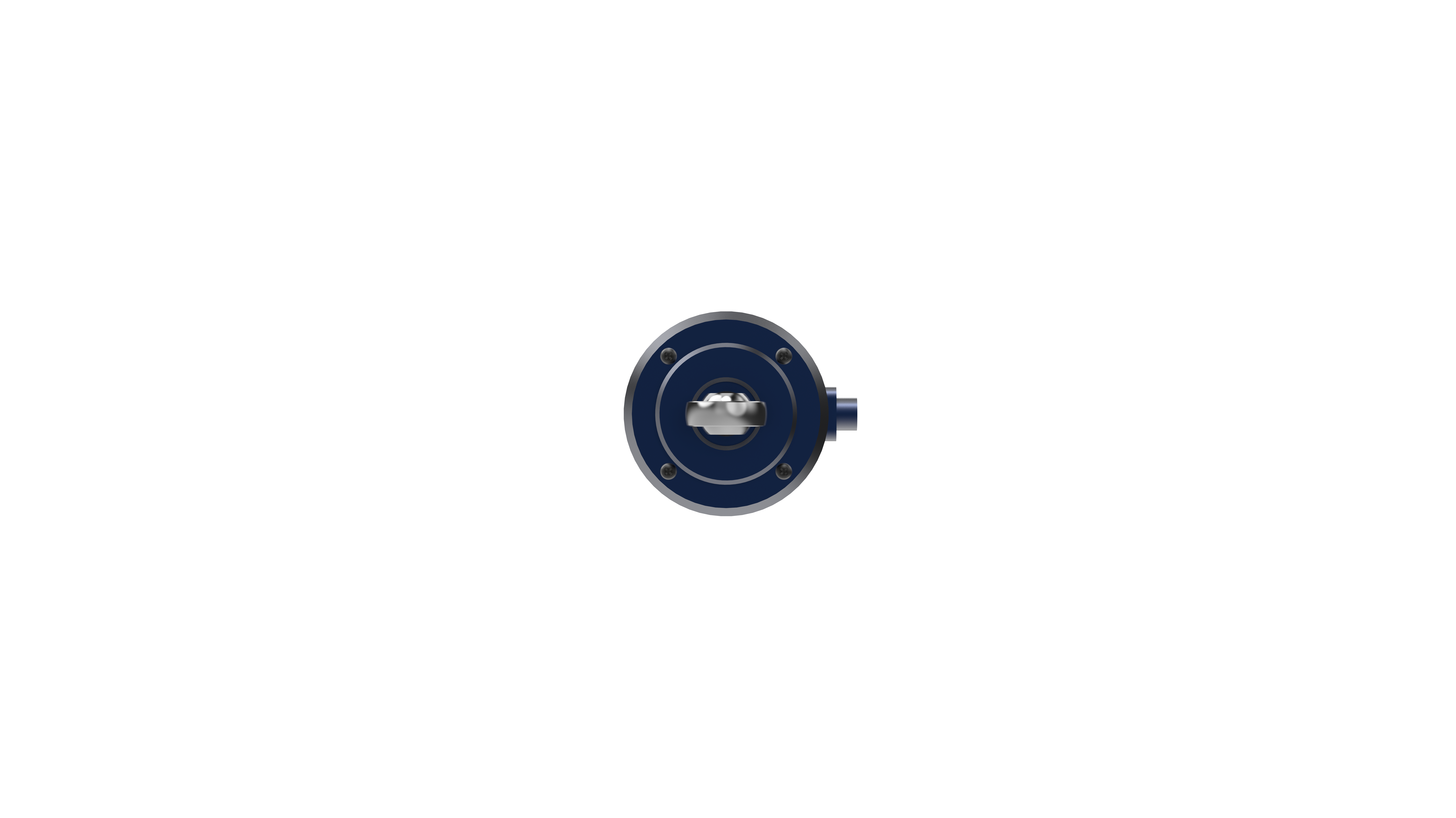

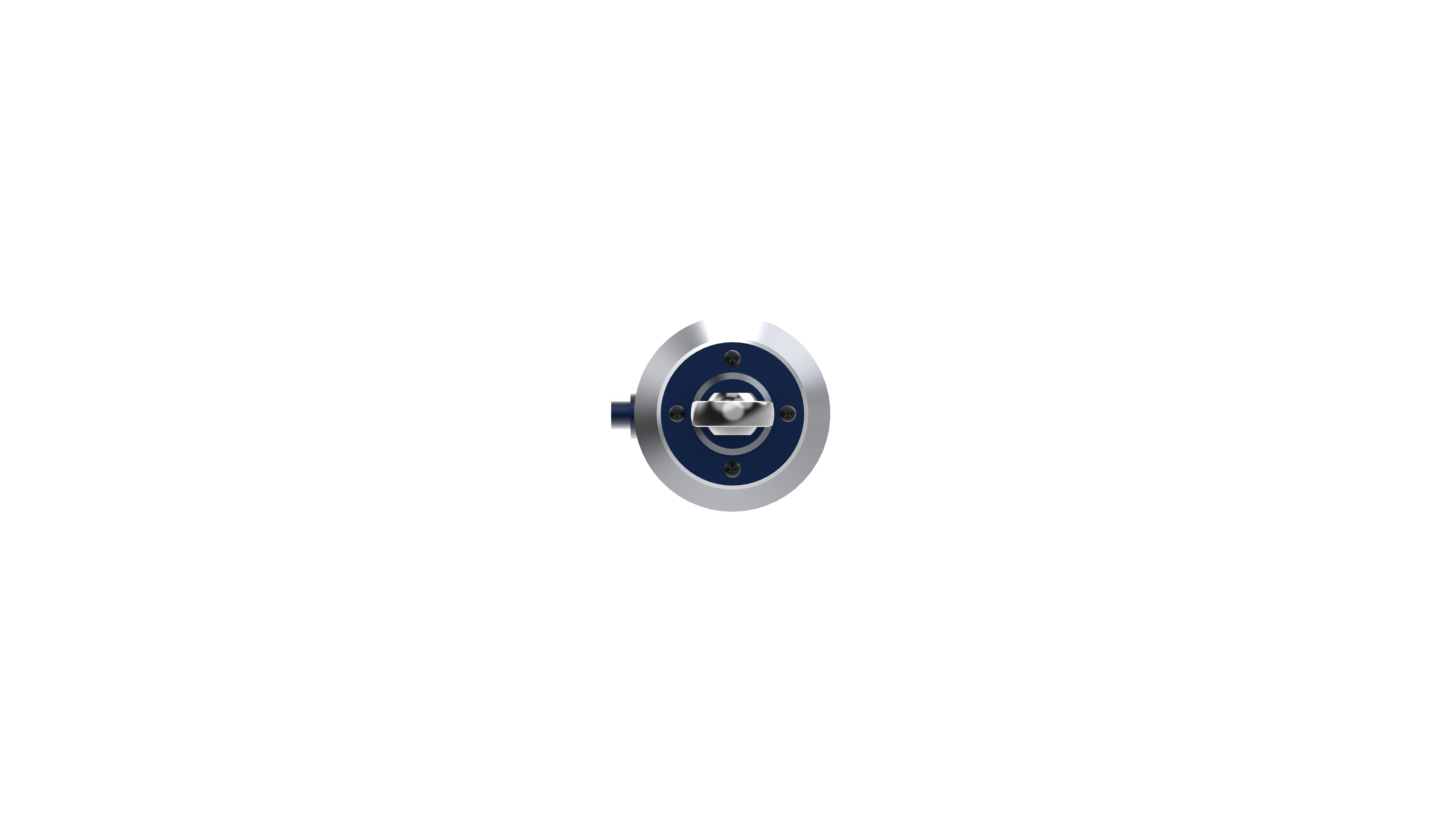

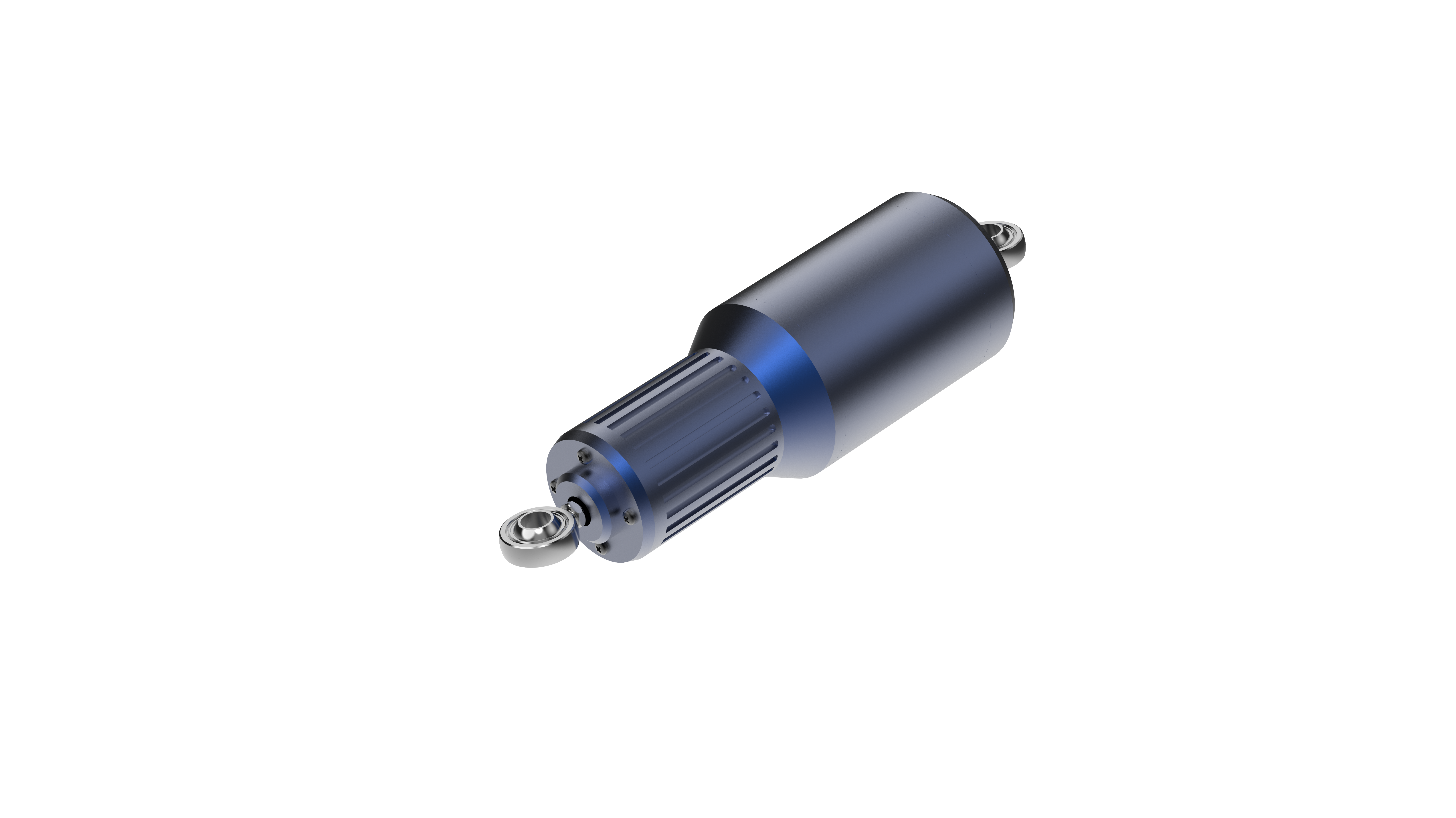

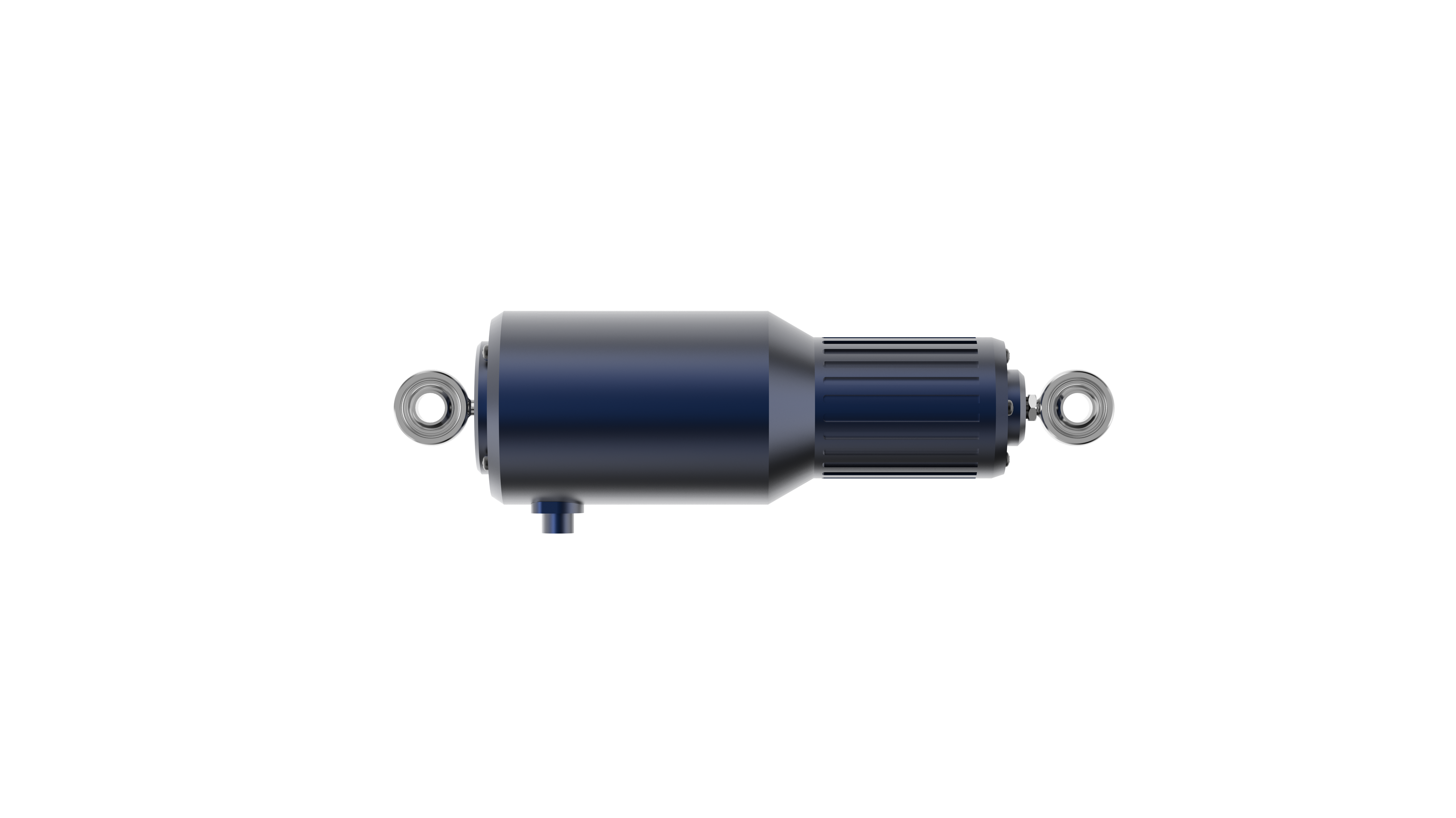

Actuator
Parameters
Rated Thrust(N)
150
Transmission
Lead Screw Type
Ball Screw
Max. Thrust(N)
500
Axial Play(mm)
0.02
Rated Linear Speed(mm/s)
125
Electrical
Rated Voltage(VDC)
48
Max. Linear Speed(mm/s)
200
Rated Output Power(W)
30
Stroke(mm)
45
Rated Torque(N.m)
0.09
Encoder Type
Magnetic Encoder
Instantaneous
Max. Torque(N.m)
0.3
Encoder Resolution
17-bit
Rated Current(A)
2
Weight(kg)
≈0.6
Max. Current(A)
5
Mounting
Dimensions
Axial Mounting
Distance(mm)
160
Rated Speed(rpm)
3000
Fixed End Mounting
Hole Diameter(mm)
φ4
Max. Speed(rpm)
5000
Moving End Mounting
Number of Rotor Pole Pairs
7
