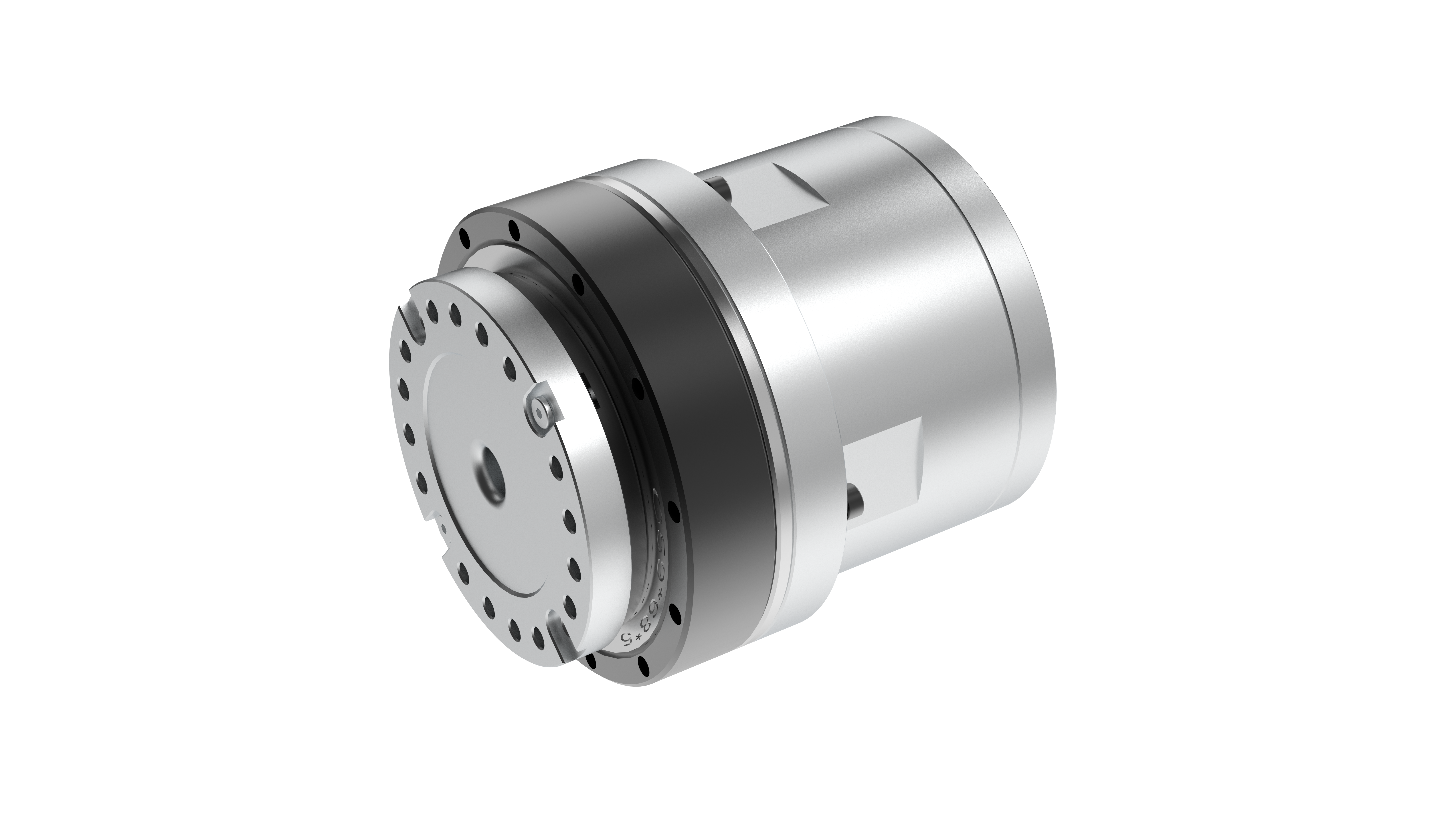

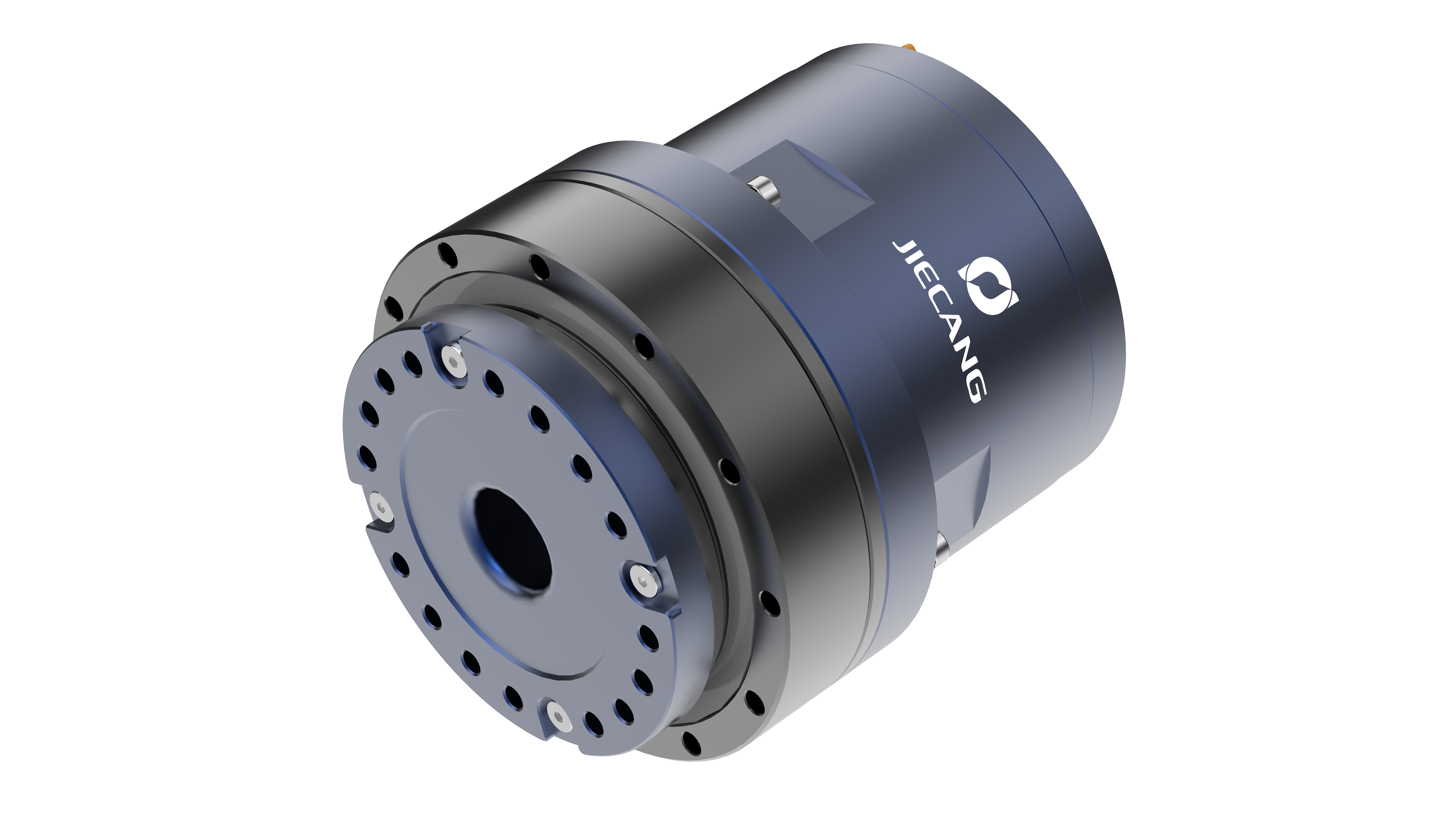

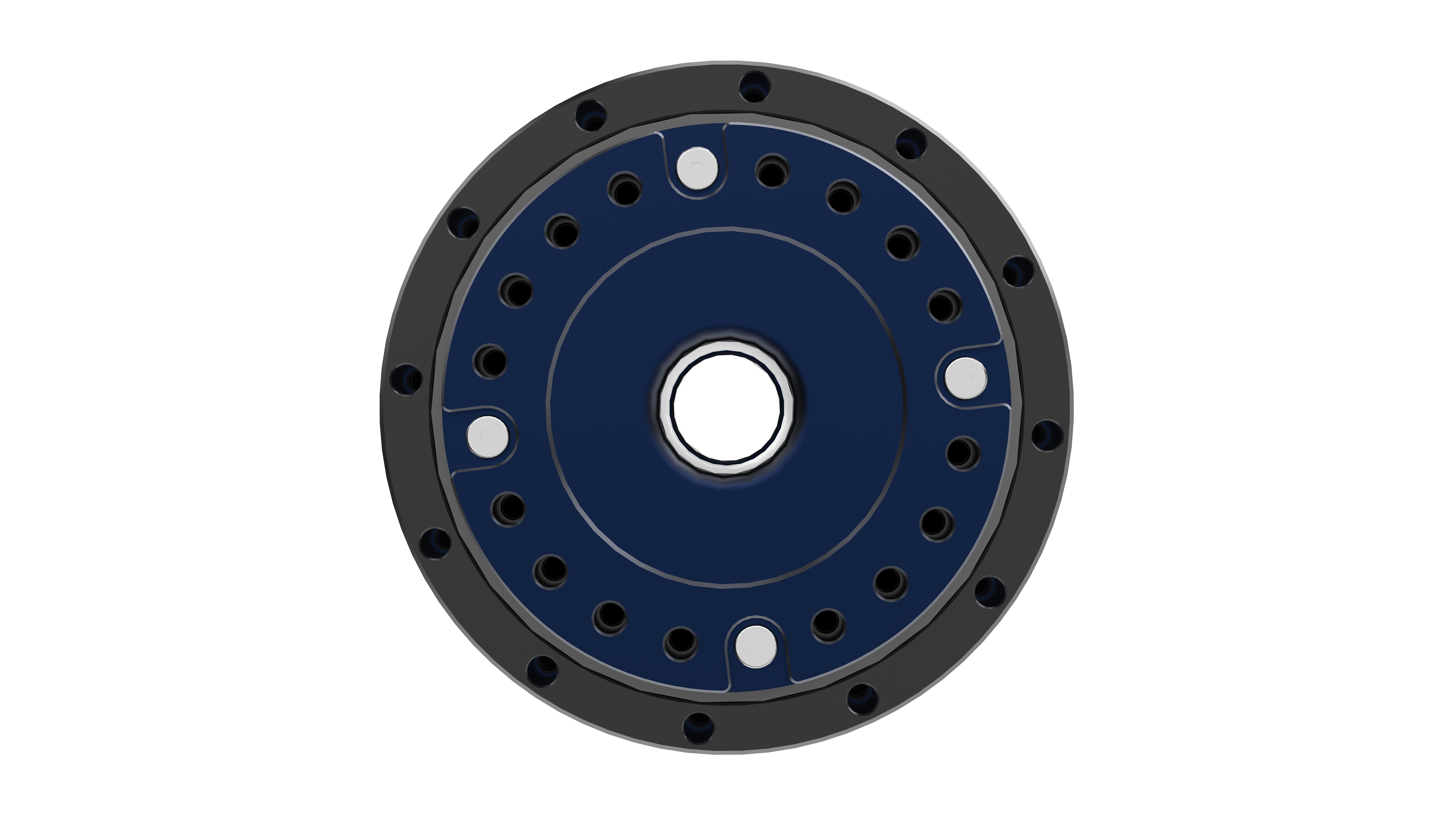

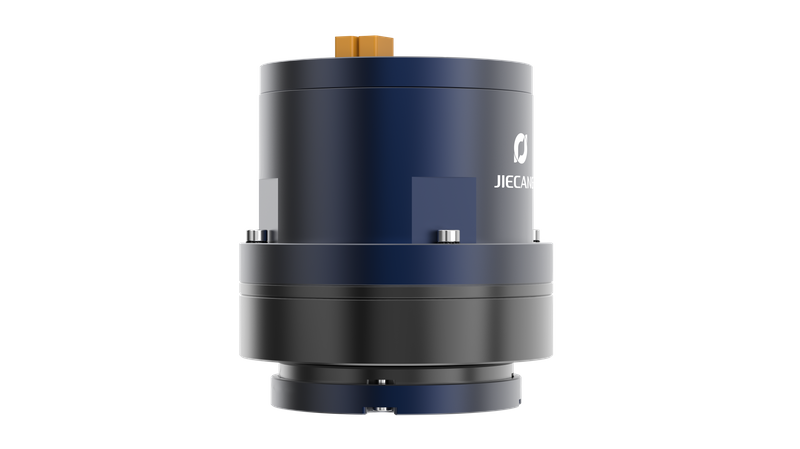

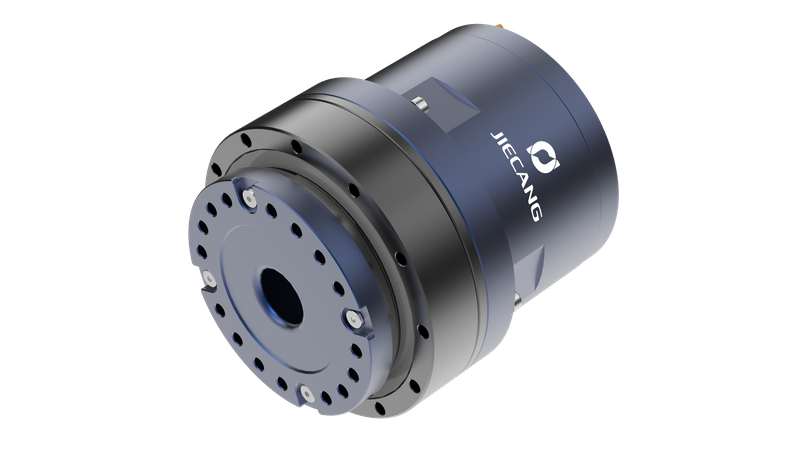

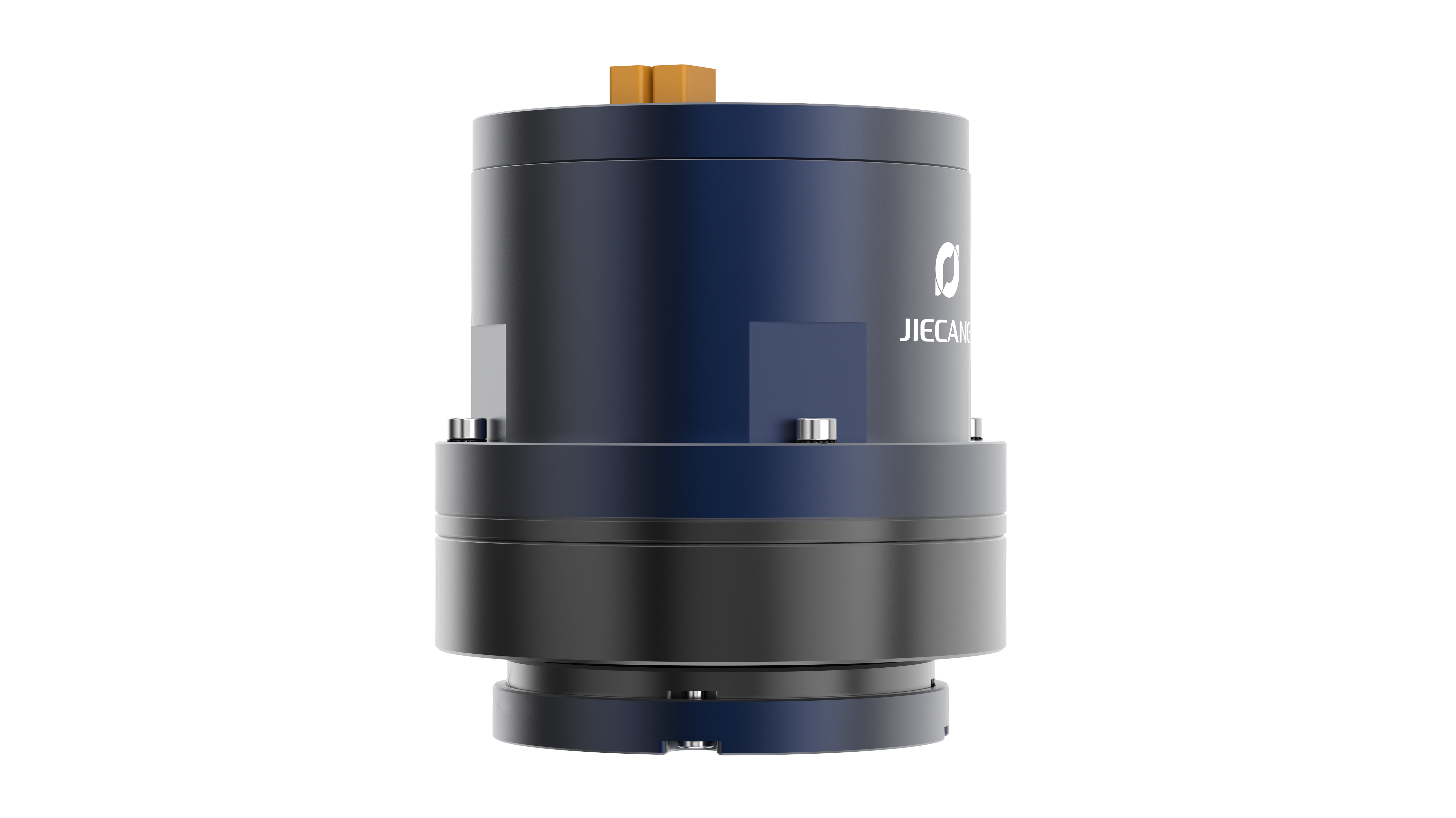

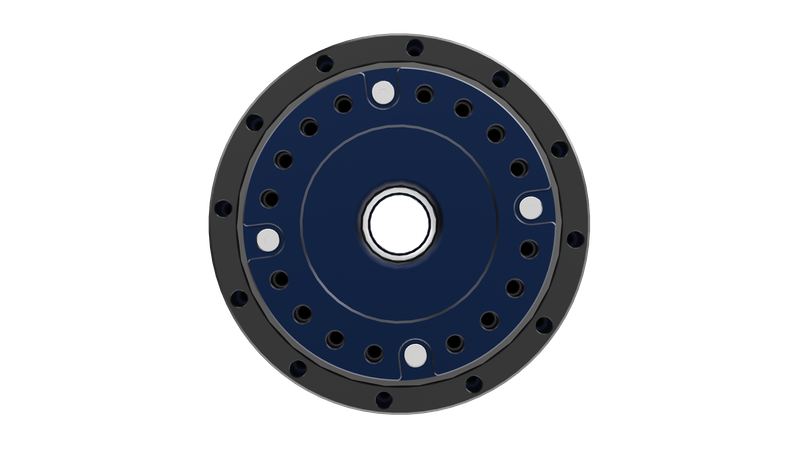

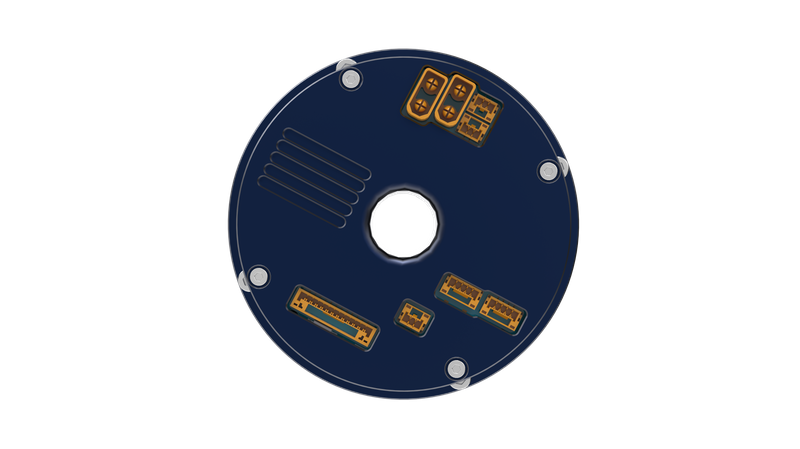

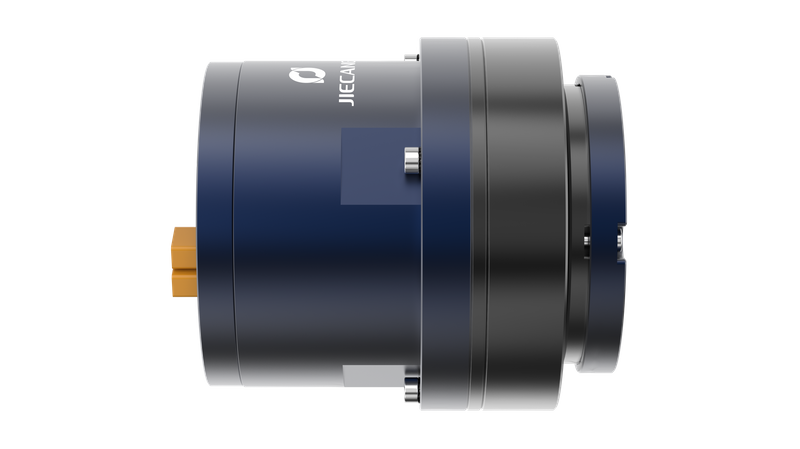

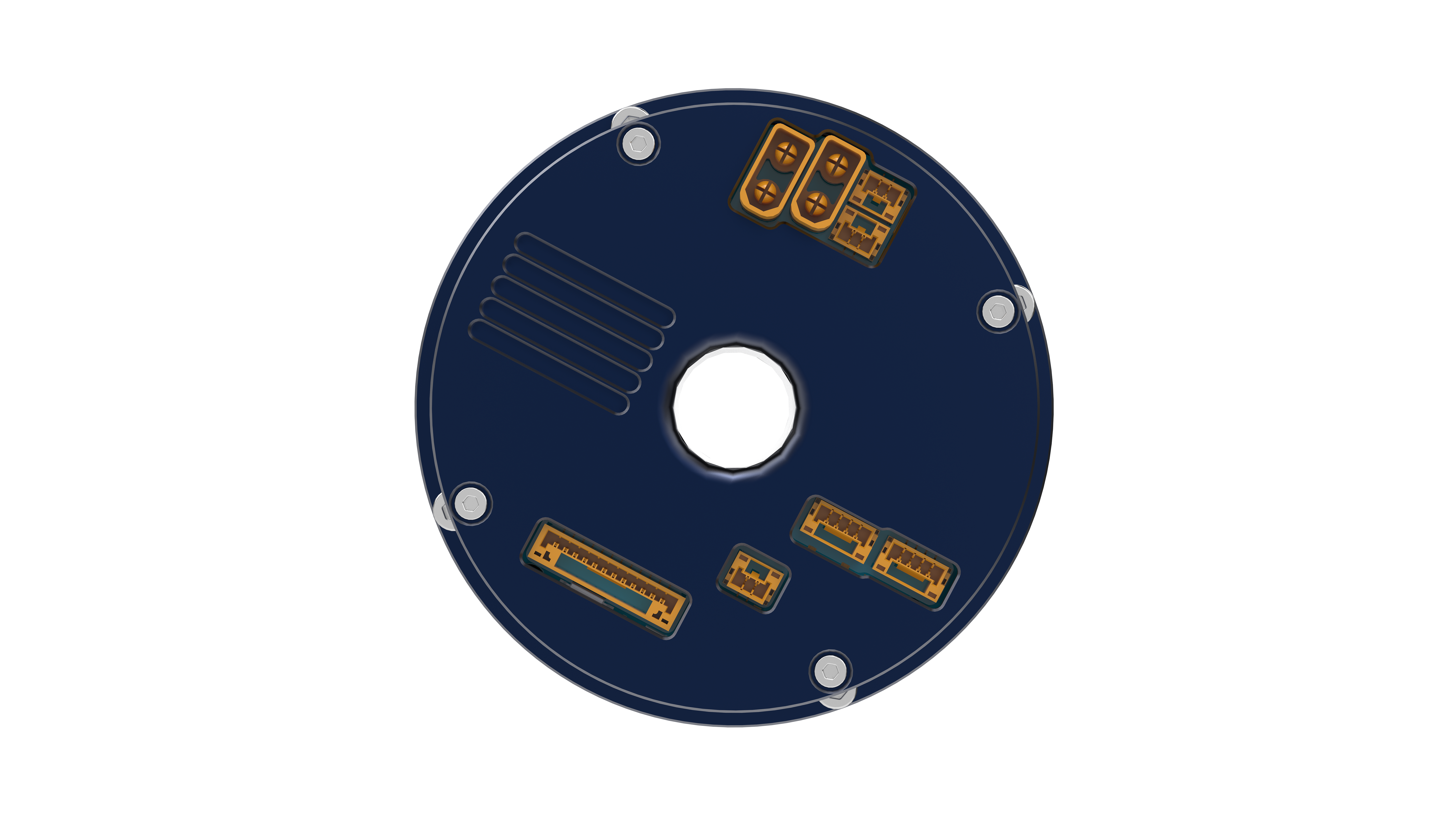

Rotary Module JCRM80

Peak Torque(Nm)

70

Reduction Ratio

100

Instantaneous

Max. Allowable

Torque(Nm)

140

Outer Diameter(mm)

80

Rated Torque(Nm)

31

Length(mm)

86

Rated Current(A)

9 / 4.5

Weight(kg)

1.3

Rated Speed(rpm)

32

Wiring Hole

Diameter(mm)

14

Module Power(W)

103

Positional Accuracy

(Output Side)

Repeatability: ±10 arc-sec

Absolute Accuracy: ±25 arc-sec
