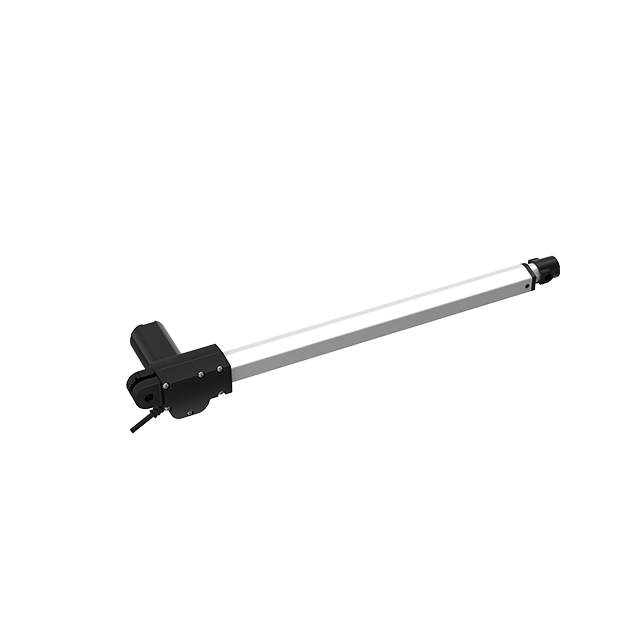

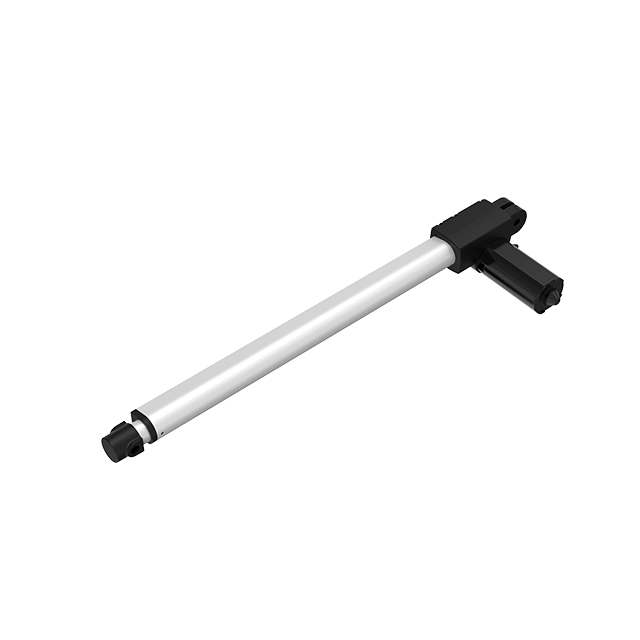

Linear Actuator​ JC35L80

Load in push：500N, 800N, 1000N

Load in pull：500N, 800N, 800N

Color: Black

Protection class: IP20

Stroke Length:50–400mm

Installation dimensions: 50-400mm

Noise Level: ≤45dB (no-load)— ambient noise ≤40dB

Hall sensor : optional

Only push no pull option : optional

Built-in electrical limit switch

Weight: About 2kg (different stroke length and installation dimensions with different weight )

Static bending moment: lateral load are not allowed
