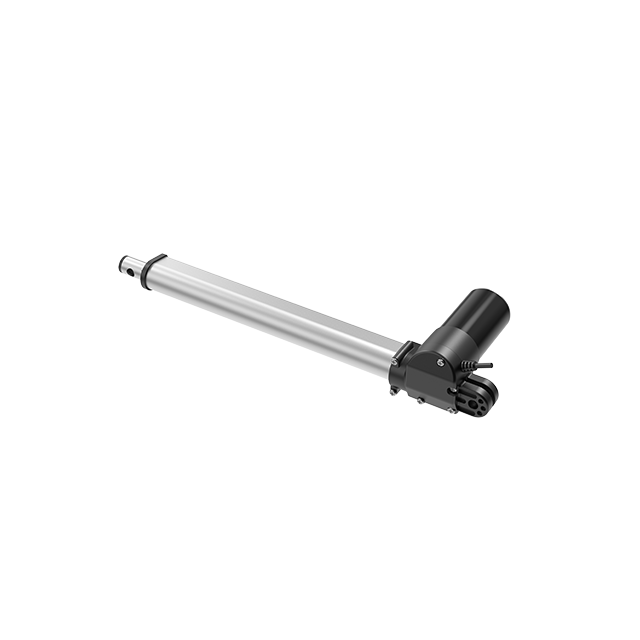

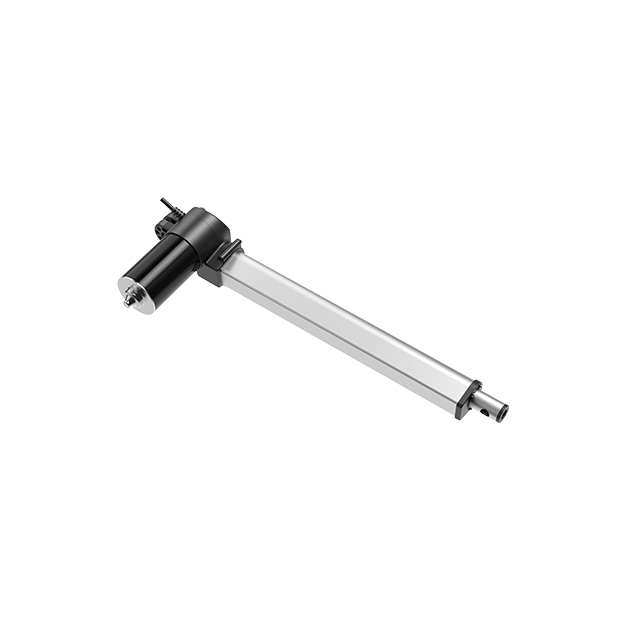

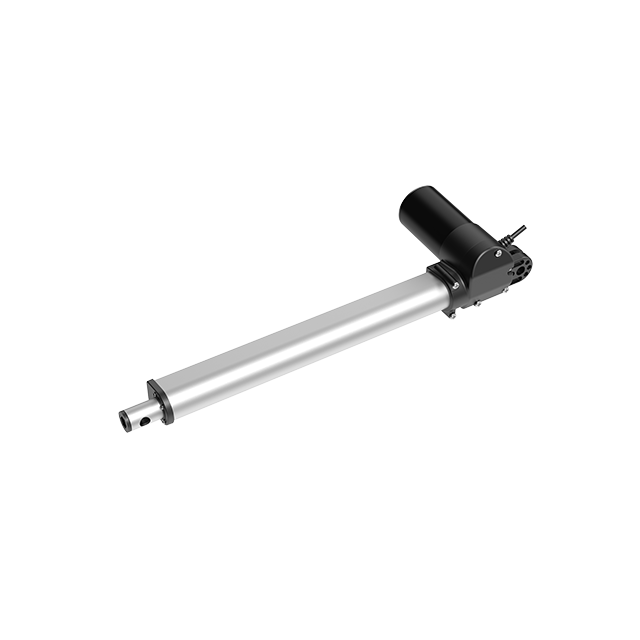

Linear Actuator​ JC35L82

Load in push：1200N,1500N,2000N

Load in pull：1000N,1500N

Color: Black

Protection class: IP20

Stroke Length:

2000N：25-300mm

1200N/1500N：25-500mm

Installation dimensions:

1200N/1500N: L=S+145 (25<S≤500) — front limit required for stroke ≥200mm (vertical lift only)

2000N: L=S+145 (25<S≤300)

Hall sensor : optional

Built-in electrical limit switch

Weight: About 2kg (different stroke length and installation dimensions with different weight )

Static bending moment: lateral load are not allowed

Noise Level: ≤45dB (no-load), ≤50dB (loaded) — ambient noise ≤40dB
