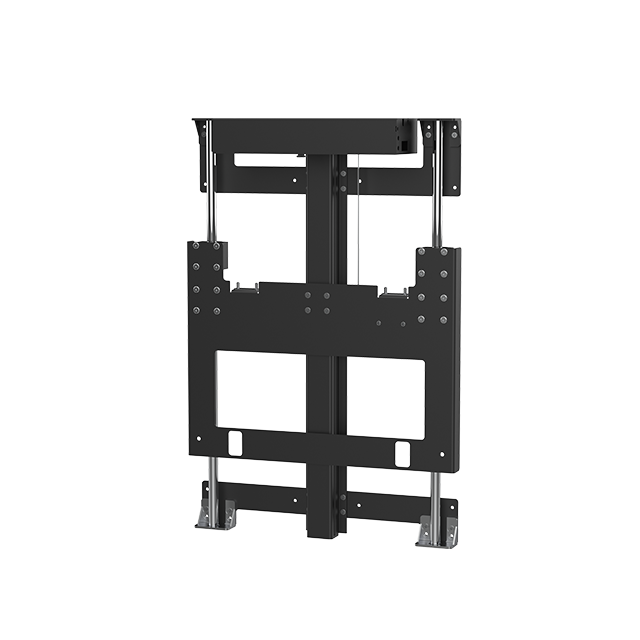

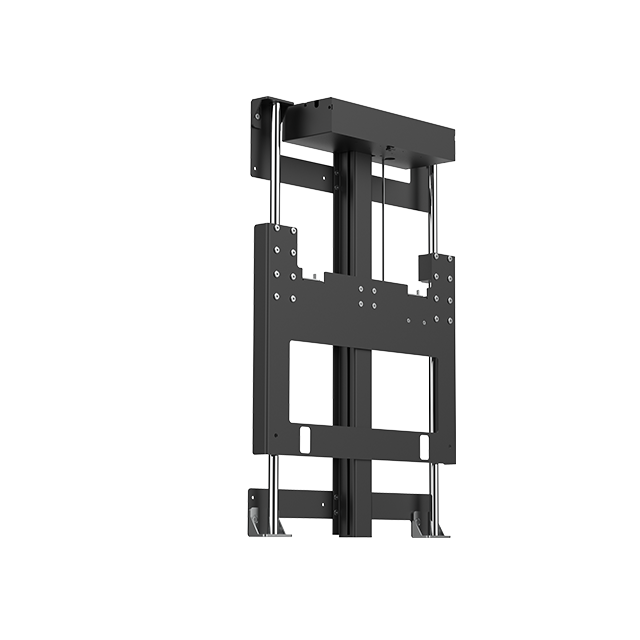

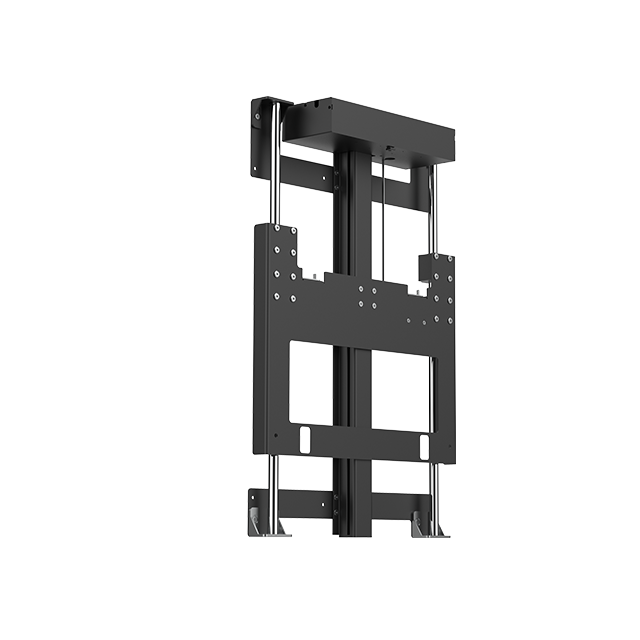

Name: Lift Cabinet Base JC37B5S
Rating: 5.0 (21 reviews)

Home / Products / SMART HOME SOLUTION / Lift Cabinet Base JC37B5S

The JC37B5S is a next-generation lifting drive system designed for overhead cabinet applications. It delivers stable, smooth, and safe operation. Building on the previous version, it now features an integrated piezoelectric sensing module, significantly enhancing its anti-pinch capability

QUICK LINKS

COMPONENTS

SYSTEMS

Add: No.2 Laisheng Road, Provincial High-tech industrial park, Xinchang county, Zhejiang province, China

Tel: 400-6666-358
If the call is not answered, please leave a message and we will reply immediately once we receive it.

Input Voltage: 220VAC	Rated Power: 58W
Maximum Push-Pull Force: 35KG (including cabinet body)	Maximum Stroke: 540/640±3mm
Load Noise: Below 52dB	Installation Distance: 670/770±3mm
No-Load Speed: 30mm/s	Load Speed: 30mm/s
Ambient Temperature: 5℃+50℃	Relative Humidity: Below 95% (non-condensing)
Control Method: R2 remote control	Self-Locking Function: Yes
Overload Protection: Yes	Protection Rating: IP20
Descending Anti-Collision: Yes	Package Dimensions: 890576167 790576167
Product Gross Weight: 13 KG	Product Net Weight: 11.5 KG
Outlet Mode: IEC C7 (Figure-8) power cord + adapter
