Lifting Column JS36DR4-3-S-HC-2
-
JIECANG
Product Features

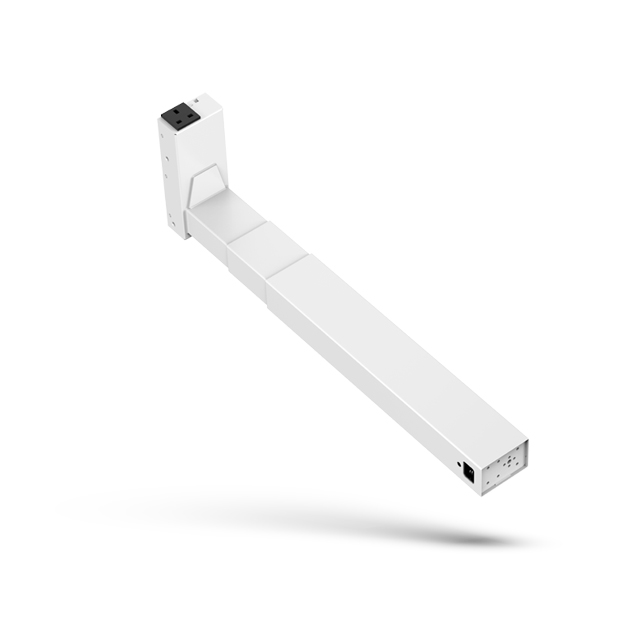

The JS36DR4-3-S-HC-2 is a rectangular, 3 stage, standard column with an integrated power system. Unlike conventional columns, it features a built-in power cord and includes an additional power outlet to meet diverse customer application requirements.
Sleek, Integrated Design
Internal cable routing results in a clean aesthetic, compact structure, and broad applicability.
Superior Performance
Offers exceptional overall performance characterized by low noise operation, high load capacity, and outstanding stability. Features universal mounting holes compatible with standard frames.
Advanced Safety
The built-in anti-collision function significantly reduces the risk of damage if the table encounters an obstruction during descent.
Features
Configurable with sockets for five major international standards: UK, US, AU, EU, and China
Rated loading: 800N
Max. speed: 35mm/s
Noise: ＜48dB
Max. lateral moment: 150N.m
Standard Installation Distance: 580 mm
Stroke: 600mm
Column Dimensions: Outer Tube: 95 x 65 mm; Middle Tube: 90 x 60 mm; Inner Tube: 85 x 55 mm
Motor: High-power JIECANG motor with dual-Hall feedback
Surface Finish: Powder coating; standard colors include White, Black, and Grey
Certified to IEC 60335
