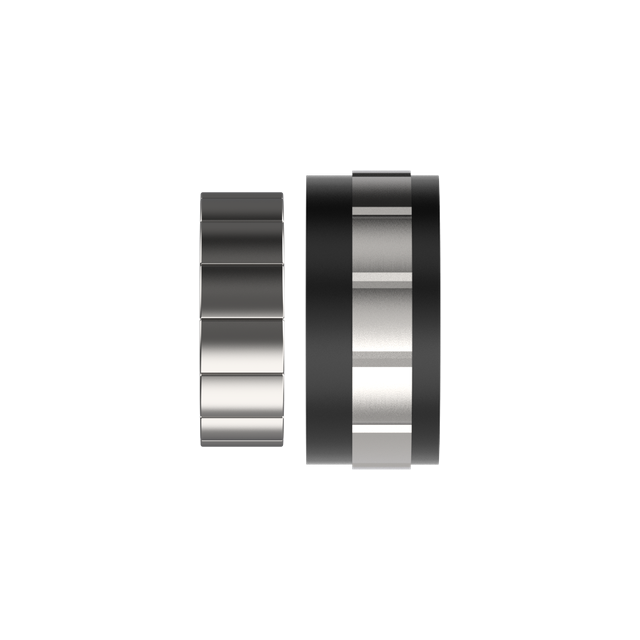

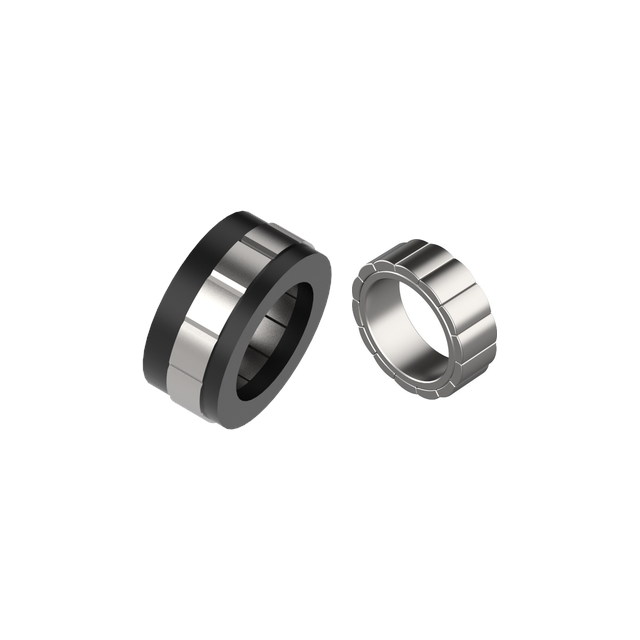

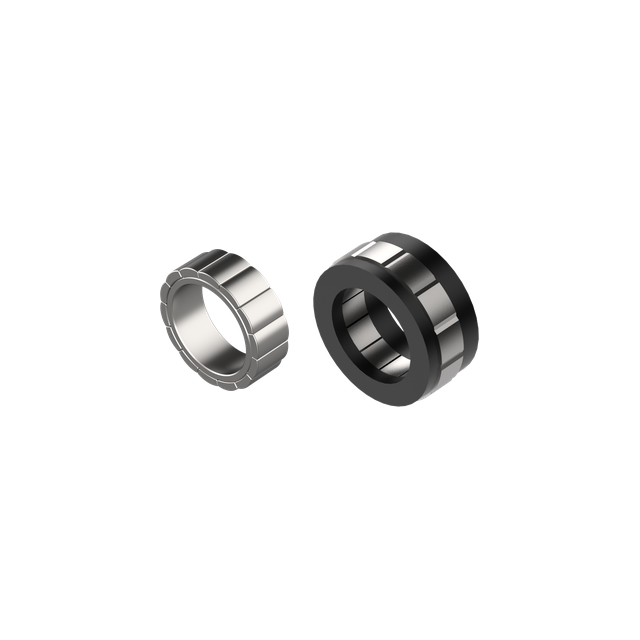

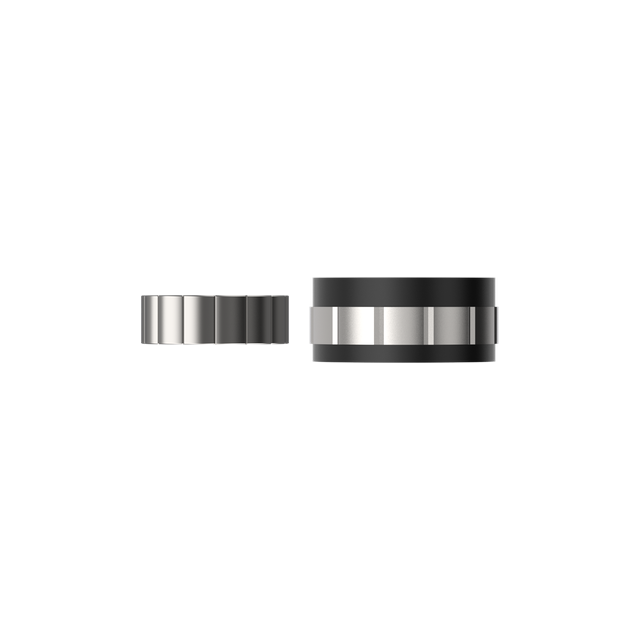

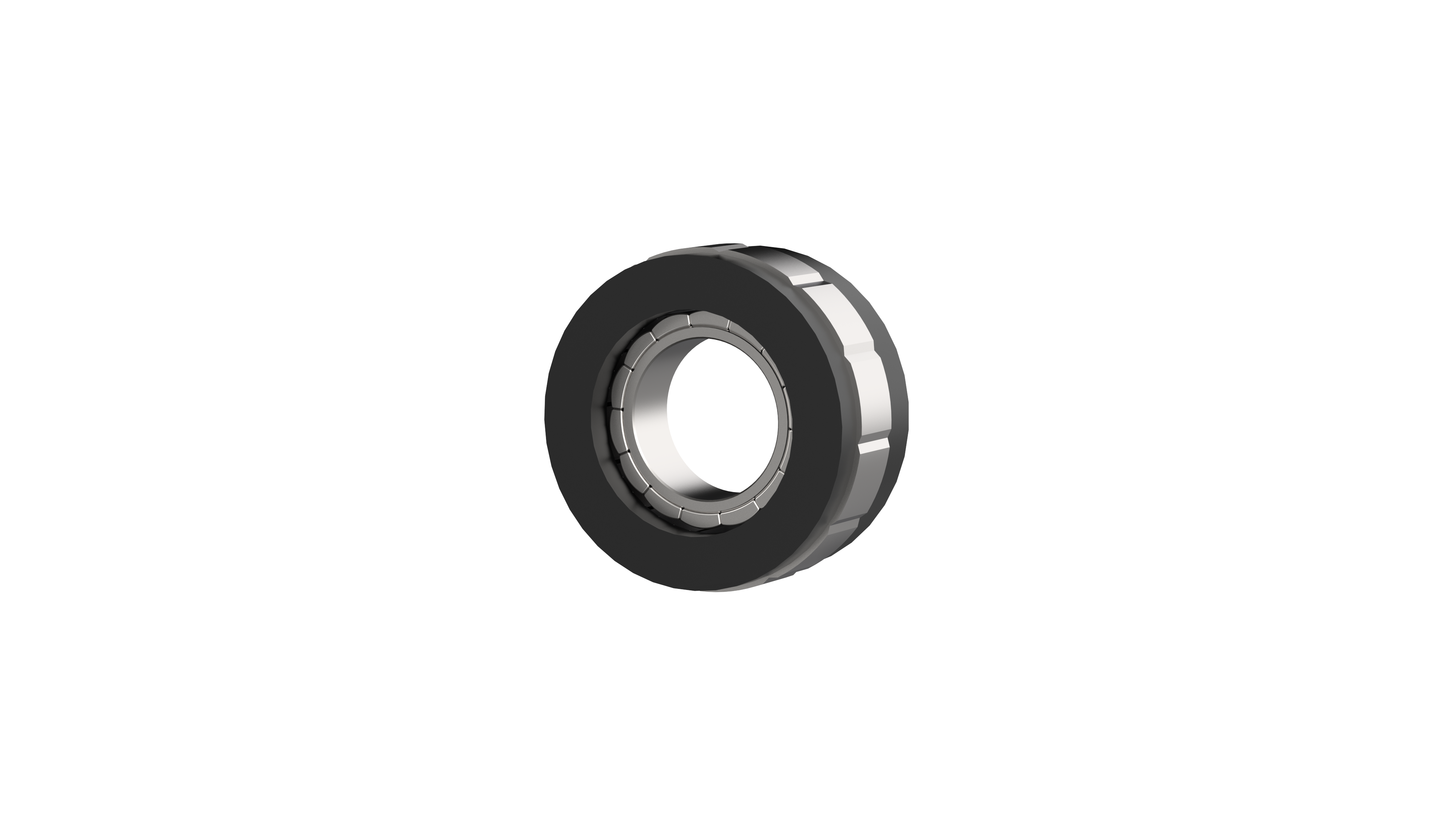

Frameless Torque Motor JCTM38

Freeload Speed(rpm)

6400±10%

Total Loss(W)

15.15

Rated Power(W)

59.41

Torque Constant(N·m/A)

0.084

Rated efficiency η(%)

78

Pole Pairs

7

Rated Torque(N·m)

0.13

Rotor Moment of inertia J

(Kgcm2)

0.015

Rated Speed(rpm)

4364

Cogging Torque(mNm)

6

Peak Torque(N·m)

0.38

Torque Ripple Factor(%)

2

Line Resistance(Ω)

3.4±10%

Temperature Sensor

NTC(100k)

Line Inductance(mH)

2.7±20%

Total Weight(Kg)

0.061

Winding Connect Method

Y

Value

37.2Max

38

7.5

Name

Potting Adhesive Height

Rotor Inner DIM

Rotor Height

Value

17Max

18

8
