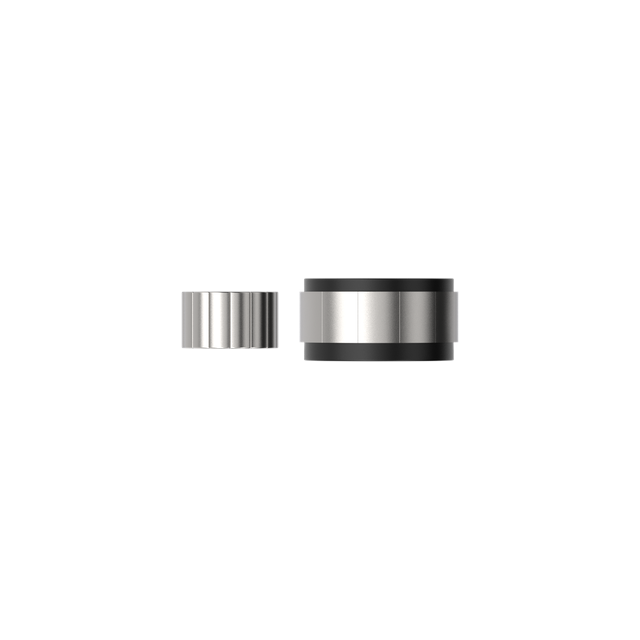

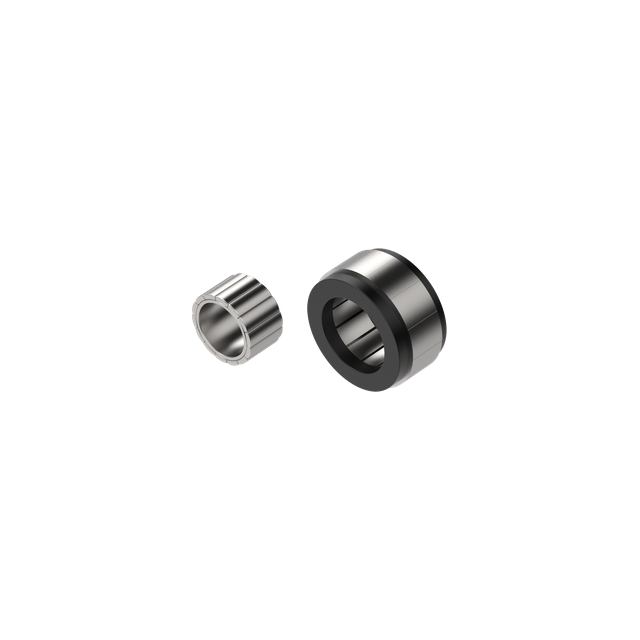

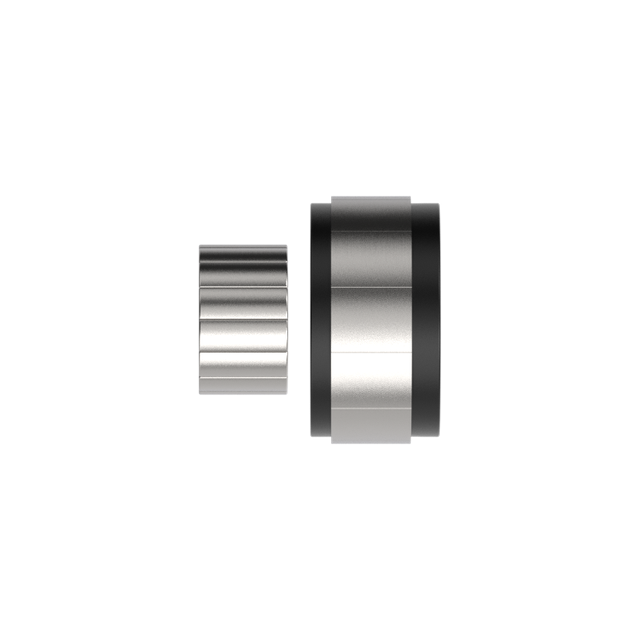

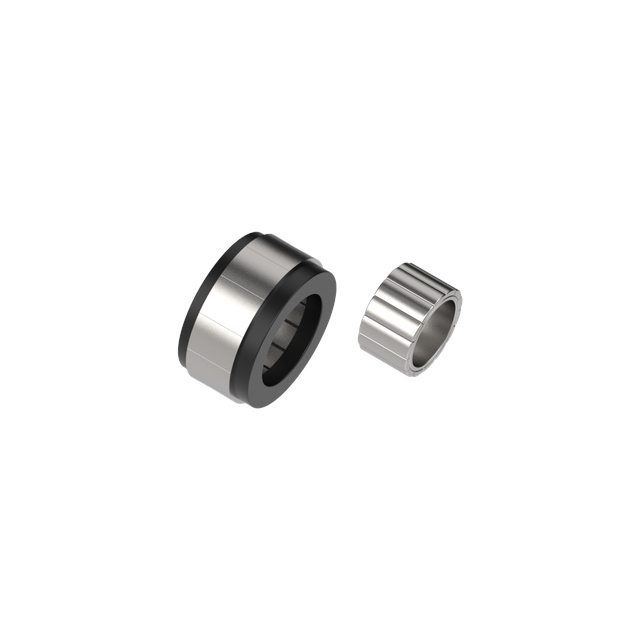

Frameless Torque Motor JCTM25

Freeload Speed(rpm)

13800±10%

Total Loss(W)

14

Rated Power(W)

69.37

Torque Constant(N·m/A)

0.039

Rated efficiency η(%)

72

Pole Pairs

7

Rated Torque(N·m)

0.063

Rotor Moment of inertia J

(Kgcm2)

0.0025

Rated Speed(rpm)

10500

Cogging Torque(mNm)

2

Peak Torque(N·m)

0.204

Torque Ripple Factor(%)

1.53

Line Resistance(Ω)

3.3±10%

Temperature Sensor

NTC(100k)

Line Inductance(mH)

0.85±20%

Total Weight(Kg)

0.026

Winding Connect Method

Y

Value

23.6Max

25

8

Name

Potting Adhesive Height

Rotor Inner DIM

Rotor Height

Value

13Max

11.5

9
