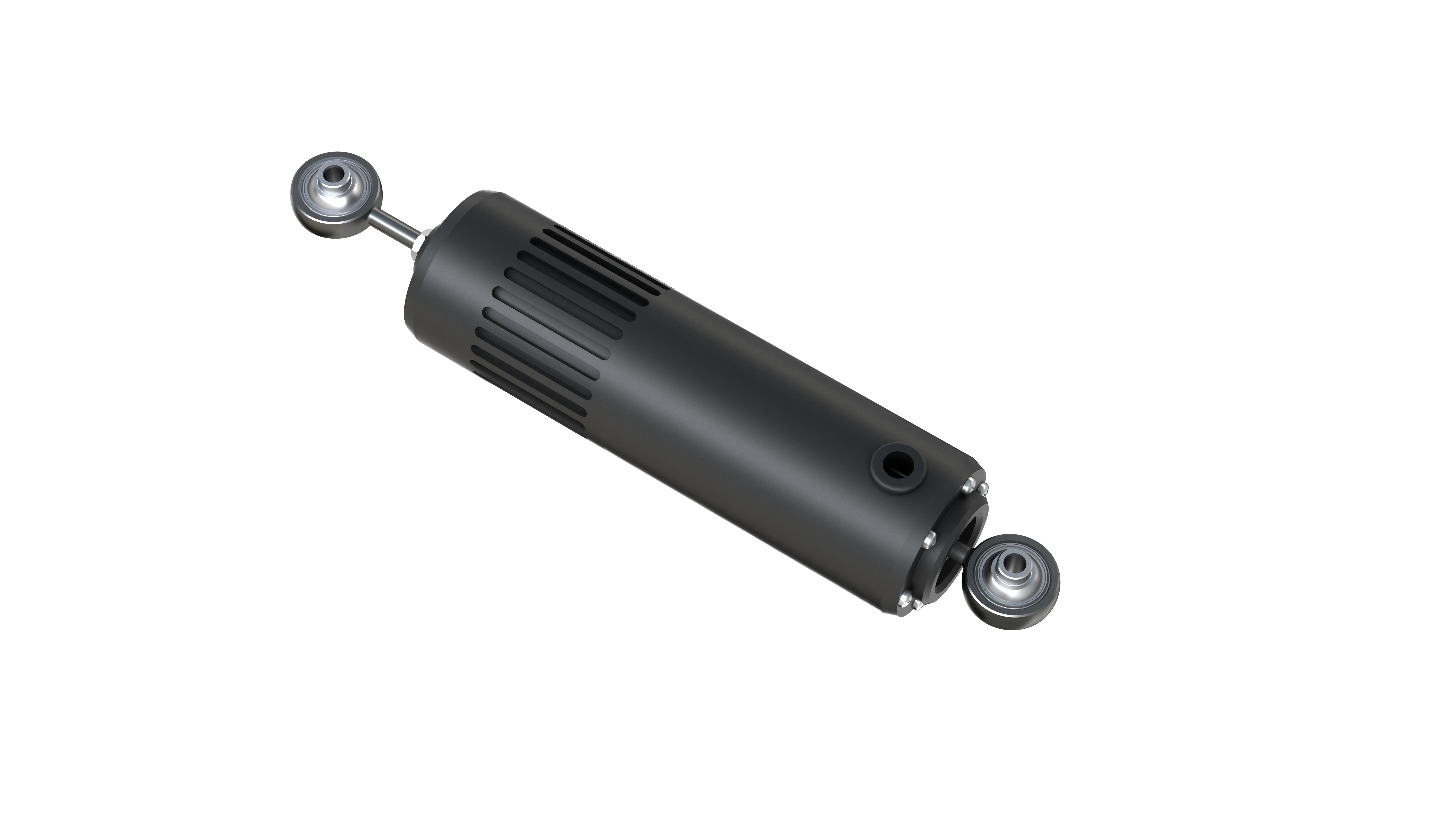

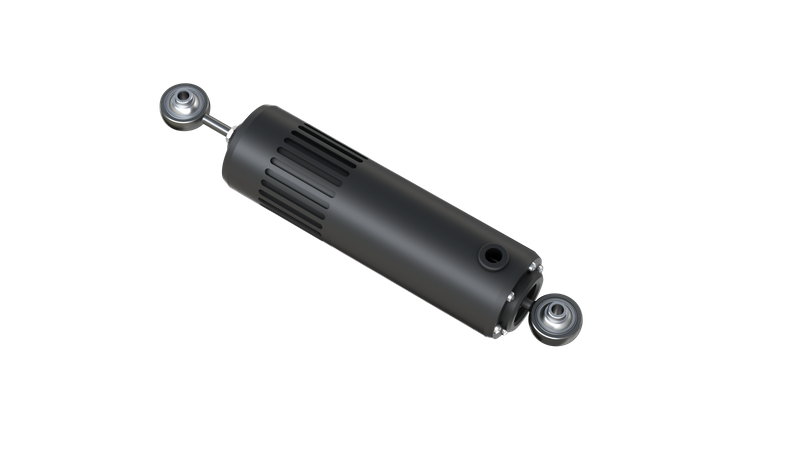

Linear Actuator JCLA-35-150

Max Thrust(N)

500

Moving End Mounting Hole Diameter(mm)

φ4

Rated Linear Speed(mm/s)

125

Rated Voltage(VDC)

48

Max Linear Speed (mm/s)

200

Rated Output Power(W)

23.58

Stroke(mm)

45

Rated Torque(N.m)

0.075

Encoder Type

Multi-Turn Absolute Magnetic Encoder

Instantaneous Max

Torque(N.m)

0.18

Encoder Resolution

17-bit

Rated Current(A)

3

Weight(kg)

/

Instantaneous  Max Current (A)

9

Screw Type

Ball Screw

Rated Speed(rpm)

3000

Axial Play(mm)

/

Max Speed(rpm)

5000

Axial Mounting Distance(mm)

150

Rotor Pole Pairs

7
