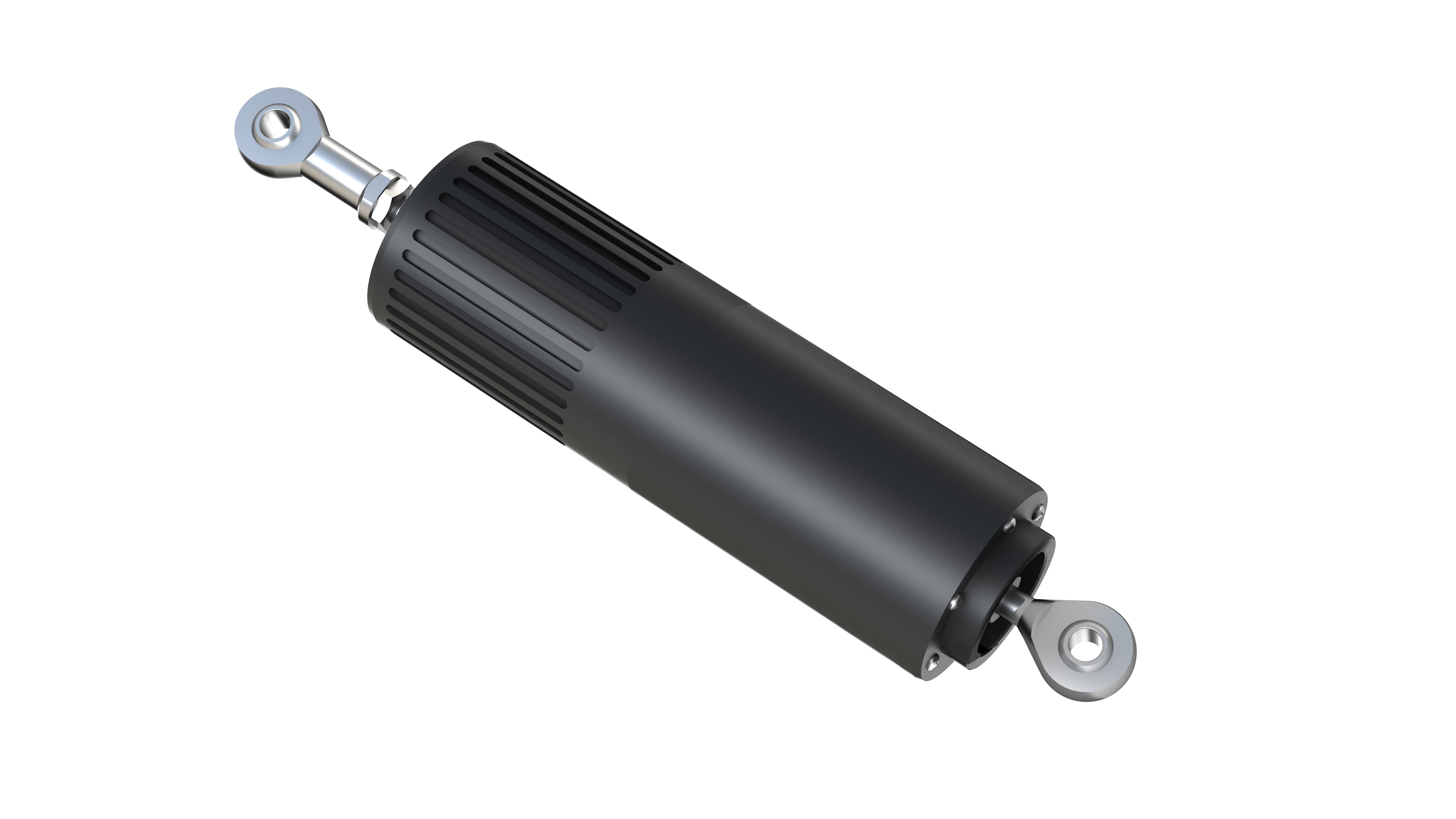

Home / Products / Linear Actuator JCLA-55-250

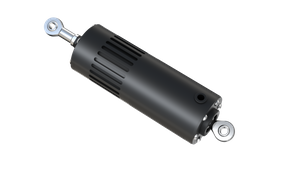

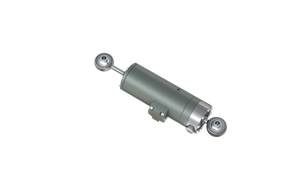

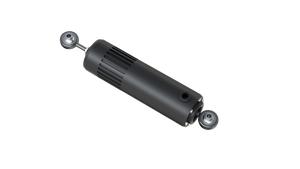

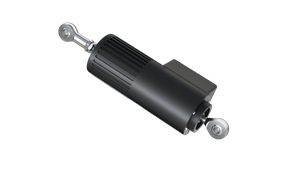

Related Products

QUICK LINKS

COMPONENTS

SYSTEMS

Add: No.2 Laisheng Road, Provincial High-tech industrial park, Xinchang county, Zhejiang province, China

Tel: 400-6666-358
If the call is not answered, please leave a message and we will reply immediately once we receive it.

Rated Thrust(N)	650	Fixed End Mounting Hole Diameter(mm)	φ8
Max Thrust(N)	4000	Moving End Mounting Hole Diameter(mm)	φ8
Rated Linear Speed(mm/s)	225	Rated Voltage(VDC)	48
Max Linear Speed (mm/s)	330	Rated Output Power(W)	220
Stroke(mm)	65	Rated Torque(N.m)	0.7
Encoder Type	Multi-Turn Absolute Magnetic Encoder	Instantaneous Max Torque(N.m)	4.2
Encoder Resolution	17-bit	Rated Current(A)	8.2
Weight(kg)	/	Instantaneous Max Current (A)	52
Screw Type	Planetary Roller Screw	Rated Speed(rpm)	3000
Axial Play(mm)	0.02	Max Speed(rpm)	4500
Axial Mounting Distance(mm)	250	Rotor Pole Pairs	5

Rated Thrust(N)	650	Fixed End Mounting Hole Diameter(mm)	φ8
Max Thrust(N)	4000	Moving End Mounting Hole Diameter(mm)	φ8
Rated Linear Speed(mm/s)	225	Rated Voltage(VDC)	48
Max Linear Speed (mm/s)	330	Rated Output Power(W)	220
Stroke(mm)	65	Rated Torque(N.m)	0.7
Encoder Type	Multi-Turn Absolute Magnetic Encoder	Instantaneous Max Torque(N.m)	4.2
Encoder Resolution	17-bit	Rated Current(A)	8.2
Weight(kg)	/	Instantaneous Max Current (A)	52
Screw Type	Planetary Roller Screw	Rated Speed(rpm)	3000
Axial Play(mm)	0.02	Max Speed(rpm)	4500
Axial Mounting Distance(mm)	250	Rotor Pole Pairs	5
