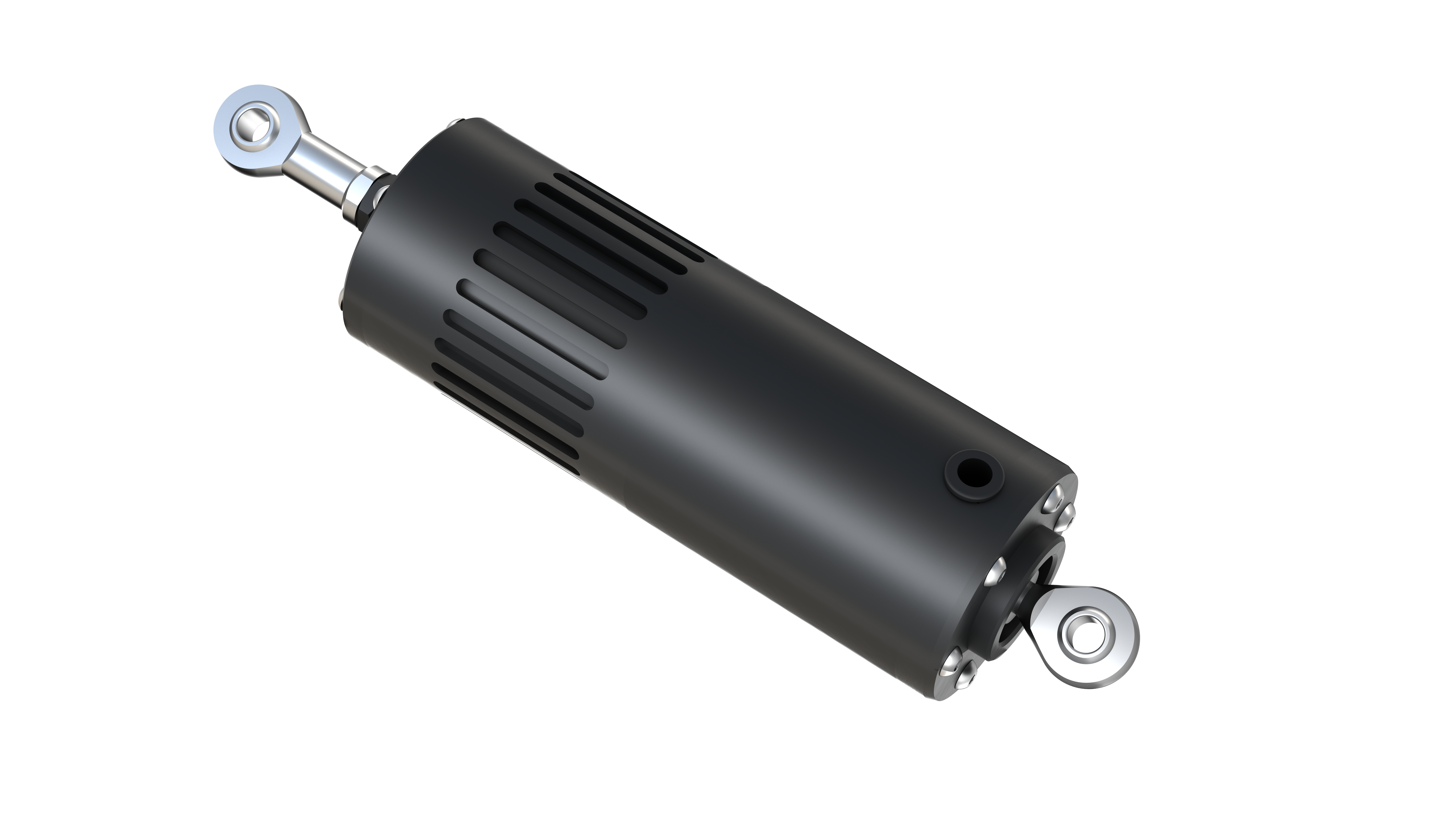

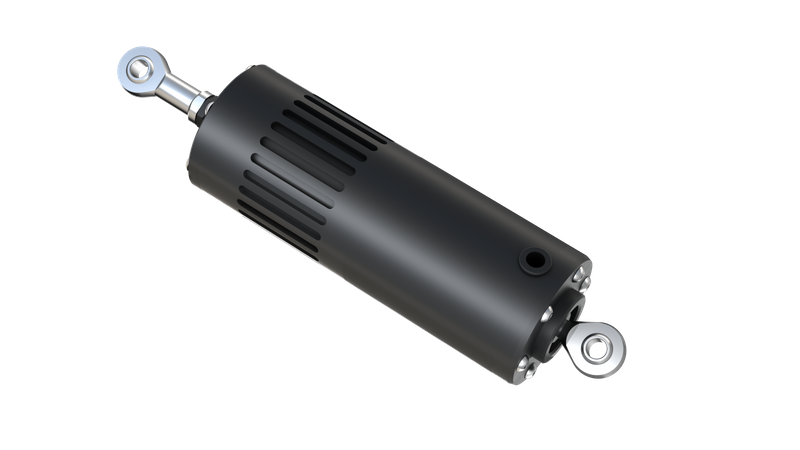

Linear Actuator JCLA-75-290

Max Thrust(N)

8000

Moving End Mounting Hole Diameter(mm)

φ10

Rated Linear Speed(mm/s)

180

Rated Voltage(VDC)

48

Max Linear Speed (mm/s)

330

Rated Output Power(W)

470

Stroke(mm)

85

Rated Torque(N.m)

1.8

Encoder Type

Multi-Turn Absolute Magnetic Encoder

Instantaneous Max

Torque(N.m)

8.5

Encoder Resolution

17-bit

Rated Current(A)

22

Weight(kg)

/

Instantaneous  Max Current (A)

100

Screw Type

Planetary Roller Screw

Rated Speed(rpm)

2500

Axial Play(mm)

0.02

Max Speed(rpm)

4500

Axial Mounting Distance(mm)

290

Rotor Pole Pairs

5
