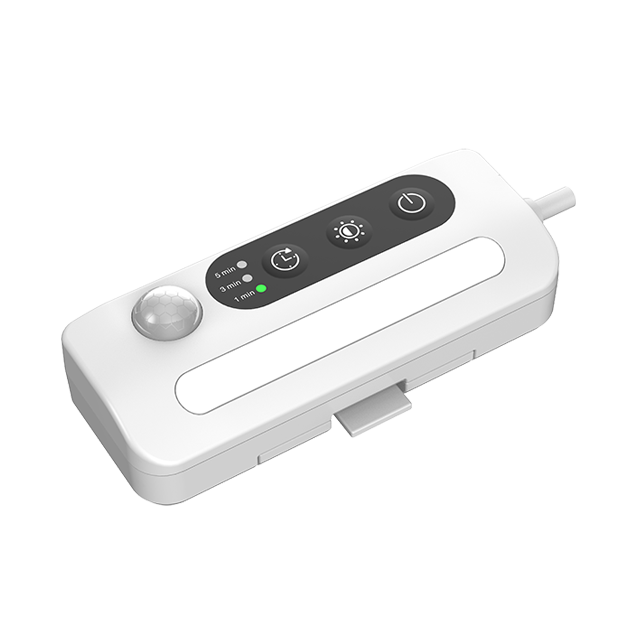

JCP35E3 Sensor Under Bed Light integrates lighting with a digital PIR sensor that activates when motion is detected. The automatic light brings ideal solution for hospital beds, nursing beds and homecare beds. Its dual intelligence adapts to ambient light (activates below 2.5 lux) and detects motion within a 140° wide range.
When light is poor and movement are detected, it gently illuminates the floor under the bed—guiding movement, preventing fall accidents or bumping risks in the dark. The product meets medical safety standards, offers flexible installation, and serves as a core safety feature for home care, senior living, and hospitals.
JCP35E3 Sensor Under Bed Light integrates lighting with a digital PIR sensor that activates when motion is detected. The automatic light brings ideal solution for hospital beds, nursing beds and homecare beds. Its dual intelligence adapts to ambient light (activates below 2.5 lux) and detects motion within a 140° wide range.
When light is poor and movement are detected, it gently illuminates the floor under the bed—guiding movement, preventing fall accidents or bumping risks in the dark. The product meets medical safety standards, offers flexible installation, and serves as a core safety feature for home care, senior living, and hospitals.
Protection Class: Max. IPX6
Colour: Gray(RAL7035)
Flame Retardant Grade:V0
Supporting Control Box: Jiecang Control boxes
Input Voltage: 5 V–36 V
Standby Power: 2 mA–20 mA
Operating Power: 40 mA–90 mA
Side-mount detection angle: 140°, detection range: ≥3 m
Under-bed-mount detection angle: 140°, detection range: ≥0.5 m
Installation height: ≥0.4 m
Supports customization with different light intensities and multi-colour options (RGB)
Brightness:
Low (20 % output): up to 190 lux
Medium (60 % output): up to 315 lux
High (100 % output): up to 450 lux
Protection Class: Max. IPX6
Colour: Gray(RAL7035)
Flame Retardant Grade:V0
Supporting Control Box: Jiecang Control boxes
Input Voltage: 5 V–36 V
Standby Power: 2 mA–20 mA
Operating Power: 40 mA–90 mA
Side-mount detection angle: 140°, detection range: ≥3 m
Under-bed-mount detection angle: 140°, detection range: ≥0.5 m
Installation height: ≥0.4 m
Supports customization with different light intensities and multi-colour options (RGB)
Brightness:
Low (20 % output): up to 190 lux
Medium (60 % output): up to 315 lux
High (100 % output): up to 450 lux
