Why Are Small Linear Actuators Gaining Popularity?

In today’s world, as technology continues to advance and industries increasingly demand greater precision, intelligence, and space efficiency, small linear actuators are rapidly becoming indispensable in various sectors. From medical devices and consumer electronics to micro-robotics, small actuators are playing a critical role in numerous applications. Their compact size, efficient performance, and adaptability are driving innovation in fields like smart manufacturing, precision healthcare, and robotics. With the maturation of miniaturization and integration technologies, these small actuators not only meet the needs of increasingly compact equipment but also offer performance capabilities that rival traditional actuators. This trend is poised to continue, opening up unprecedented opportunities and challenges across industries

.

1. What is a Small Linear Actuator?

A small linear actuator is a precise device typically used to measure and adjust the linear position or angle of an object. It generally consists of sensors, control systems, and display units, capable of capturing minute displacement changes with high accuracy. Small linear actuators are commonly used in fields such as precision machining, laboratory research, or automated production, especially in applications that demand high-precision positioning, such as machine tools, measurement instruments, and optical devices. Their compact design makes them ideal for environments with limited space.

2. Differences Between Small Linear Actuators and Traditional Linear Actuators

The key differences between small linear actuators and traditional linear actuators can be outlined in several aspects:

As the name suggests, small linear actuators are compact, lightweight, and designed for applications where space and weight are critical factors. They are commonly used in precision instruments or small mechanical systems.

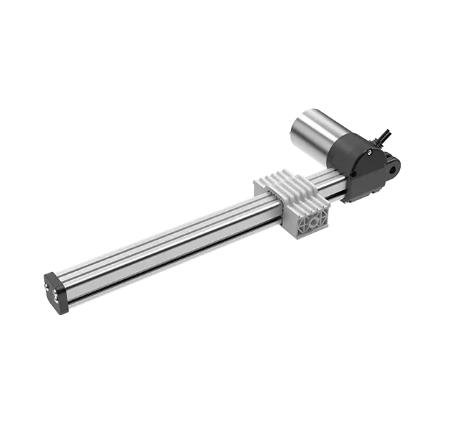

This is a micro linear actuator(JC35J1). It features a compact design, making it suitable for use in environments with limited space. Its installation size ranges from 115 to 300mm, and it weighs approximately 2kg, making it easy to install and operate in tight spaces. Due to its small size and low noise (standard noise ≤ 50dB, silent version ≤ 42dB), it is ideal for applications in smart furniture, nursing beds, massage chairs, and other scenarios that require compact, efficient, and low-noise operation.

Traditional Linear Actuators are typically larger and require more installation space. The larger size provides higher load capacity and a wider range of motion, making it ideal for system integration where greater spatial requirements are needed.

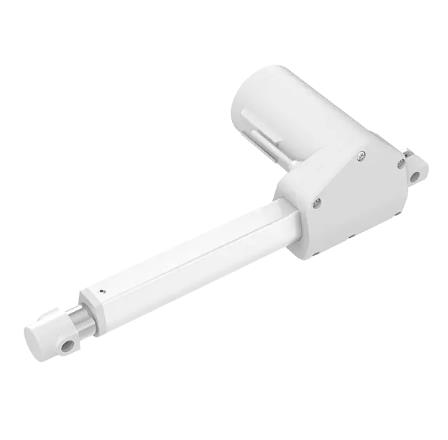

JC35L22 linear actuator is a robust and compact solution designed especially for medical and care line applications where durability and power are crucial. With a maximum thrust of up to 6000N, this actuator features a larger build to accommodate high load capacities and extended stroke lengths, making it ideal for systems that require significant spatial capacity. Its substantial size ensures enhanced stability and strength, suitable for demanding environments that cannot tolerate lateral loads. The actuator also offers excellent protection with an IP66 rating and operates quietly under 48dB, blending power and reliability for large-scale, high-performance applications.

Precision and Measurement Range Small Linear Actuators: Despite their small size, these actuators maintain high precision, often reaching micron-level accuracy. They are typically used in environments requiring fine displacement measurements.

While also highly precise, traditional actuators are usually designed to handle larger measurement ranges and more extensive operating environments, such as those involving heavier mechanical loads.

Small Linear Actuators are widely used in precision manufacturing, microelectronics, automated production lines, and research applications that demand both high space efficiency and precision.

Traditional Linear Actuators  are more commonly found in conventional industrial equipment, automation machinery, and heavy-duty mechanical processes, with applications often covering a larger measurement range.

Many small linear actuators utilize modern sensor technologies like laser sensors, inductive sensors, and photoelectric sensors to achieve precise linear measurements within confined spaces.

Traditional Linear Actuators  tend to employ mechanical structures, optical scales, or electronic rulers suited to industrial applications with wider measurement scopes.

In summary, the differences between small linear actuators and traditional linear actuators primarily revolve around size, weight, application areas, and the technology used.

3. Advantages of Small Linear Actuators

Small linear actuators are known for their compact, lightweight design, making them ideal for environments with space limitations. They can be seamlessly integrated into narrow or complex spaces, which is crucial for modern mechanical and automation systems, especially in applications like precision instruments or robotic systems. In medical devices or micro-robotics, where space is often extremely limited,mini linear actuator offer a practical solution to save space and ensure system flexibility.

These actuators also provide high precision and fast response speeds, enabling quick and accurate small displacements. This makes them particularly suitable for applications requiring fine control and frequent adjustments, such as precision positioning systems, automated assembly lines, and fine-tuning devices.

Another notable advantage is their light weight, which helps reduce the overall weight of the equipment. This is especially beneficial for applications requiring mobility, such as robotics, aerospace, and portable devices. In robotic and automation systems, the lightweight nature of small linear actuators contributes to enhanced movement efficiency and extended battery life.

Small linear actuators also tend to have high energy efficiency due to their small size and low power requirements. This feature is especially valuable in devices that need to run for extended periods with minimal energy consumption. For example, in home automation systems, the use of miniature linear actuators not only saves space but also helps reduce overall energy usage.

4. Applications of Small Linear Actuators

Due to their compact, precise, and lightweight characteristics, small linear actuators are widely used in various industries and applications.

Small linear actuators are commonly used in robotic systems, especially in micro-robots, industrial robots, and collaborative robots (cobots). They are employed to control the movement, gripping, and placement of robot arms.They provide precise positioning and fast response, enabling efficient operation in confined spaces.

In automated production lines, small linear actuators are used for material handling, transportation, processing, and assembly tasks. They provide precise displacement and force control, making them ideal for light-load automation equipment.Their compact size allows them to save space and improve overall flexibility and efficiency in the production line.

Small linear actuators are widely used in the medical field, particularly in medical devices, surgical robots, and rehabilitation equipment. For example, surgical robots require precise control of instruments' positioning, and adjustable beds or diagnostic devices often use actuators for automatic adjustments.Their high precision, low noise, and compact design make them perfect for environments that require both space efficiency and high accuracy.

Small linear actuators are used in aerospace systems, such as wing adjustments, seat adjustments, landing gear operations, and fine adjustments in satellites and spacecraft.In aerospace applications, the actuators' lightweight, compact, and highly reliable nature is essential to meeting stringent requirements.

Small linear actuators are widely used in smart home systems, such as automated curtains, window opening mechanisms, lock controls, and adjustable furniture. They can also be used in home automation devices like smart beds and TV brackets.Due to their small size and high integration, small actuators can be combined with other smart devices to offer more personalized and flexible automation experiences.

Small linear actuators are used in precision machinery and instruments, such as microscopes, laboratory equipment, and precise tool adjustment.Their ability to control minute movements and offer precise displacement makes them perfect for laboratory and precision instrument applications.

Small linear actuators are used in automotive systems for seat adjustments, electric windows, automatic trunks, and seat heating control. They are also used in autonomous driving systems for precise control.Their efficient performance, precise control, and reliability make them an essential component in the automotive industry.

Some wearable devices, like smart wristbands and smart braces, use micro linear actuator to perform micro-adjustments and adaptive functions, such as adjusting comfort in smart fitness gear.Their small size and lightweight nature make them ideal for integration into wearable devices, offering both comfort and efficient performance.

5. The Future of Small Linear Actuators

The future of small linear actuators looks incredibly promising. As technology continues to advance, particularly in automation, intelligence, miniaturization, and energy efficiency, small linear actuators are expected to play an even more significant role across various fields. Here are some potential future trends:

Higher Precision and Control Capabilities Future Trend: With advancements in sensor technology, control algorithms, and motor technology, small linear actuators will offer even higher precision and faster response speeds. They will be able to achieve more accurate micro-displacement control for increasingly complex and delicate applications.

Fields like precision manufacturing, micro-robotics, and medical surgeries will benefit from the enhanced precision of small actuators, especially in devices that require extremely fine operations.

Smaller Sizes and Higher Integration Future Trend: As miniaturization technology evolves, small linear actuators will continue to shrink in size, potentially reaching the nano-scale. Additionally, their integration levels will increase, with multiple functions (such as sensors, feedback systems, etc.) possibly being integrated into a single module, enhancing efficiency and reliability.

These miniaturized actuators will open up applications in areas such as minimally invasive surgery and micro-sensor systems.

Intelligent and Automated Control Future Trend: Small linear actuators will increasingly integrate with AI (artificial intelligence) and IoT (Internet of Things) technologies, becoming smarter. For example, they could seamlessly integrate with sensors, remote control systems, and automation platforms, allowing for self-diagnosis, status monitoring, and intelligent decision-making.

In smart homes, intelligent factories, and autonomous vehicles, the capabilities of these actuators will offer enhanced automation control, improving system flexibility and reliability.

Conclusion

Small linear actuators, with their compact, precise, and efficient characteristics, have become an integral part of modern automation and intelligent devices. Their size, light weight, and adaptability make them ideal for space-constrained applications like medical equipment, smart furniture, robotics, and automated production lines. Beyond their size advantage, many small linear actuators also feature low noise, fast response times, and high-precision control, providing stable performance. As technology advances, small linear actuators will continue to evolve in precision control, intelligence, energy efficiency, and multifunctional integration, driving the proliferation and enhancement of automation and intelligent systems across industries.

Whether it's a compact linear actuator or a traditional one, the choice should always be based on your specific application needs. Industry leaders like JIECANG offer a wide range of linear actuator products, making them a reliable option if you're considering a purchase.

Adjustable Bed Frame  FAQs：

1.How to choose the appropriate thrust and stroke for a small linear actuator?

The choice of thrust and stroke depends on the load requirements and working range of the application. The thrust should be able to withstand the maximum load, while the stroke should match the movement range of the device.

2.What are the power requirements for a small linear actuator?

 Small linear actuators typically use DC power, with a voltage range from 12V to 24V, depending on the actuator’s model and application needs. Some high-power actuators may also require higher voltages.

3. Can small linear actuators be compatible with other automation systems?

Yes, small linear actuators are generally compatible with various automation control systems, such as PLC systems, sensors, remote control devices, etc. Many actuators also support integration with smart home systems and industrial automation platforms.

4. What are the maintenance requirements for small linear actuators?

Maintenance requirements for small linear actuators include regular cleaning to ensure there is no dust or debris buildup, checking electrical connections and wear of moving parts, and adding lubricants when necessary to reduce friction and extend lifespan.

5. Are small linear actuators suitable for outdoor environments?

 Many small linear actuators are designed for outdoor use, featuring waterproof and dustproof capabilities. However, for extreme climates or harsh environments (such as high humidity, high temperatures, or salt mist), it is necessary to select actuators with specific protection ratings (such as IP66 or IP67).

6. How does the load capacity of a small linear actuator affect its performance?

The load capacity directly affects the performance of the small linear actuator. Under high load conditions, the actuator may require more time to complete its movement and could generate more heat. Overloading the actuator may lead to premature damage.

7.Does a small linear actuator require an external controller?

 Many small linear actuators require an external controller for operation, such as adjustments through switches, potentiometers, or PLC control systems. However, some actuators may also have basic control functions built-in, such as limit switches or sensors, to provide independent control capabilities.
