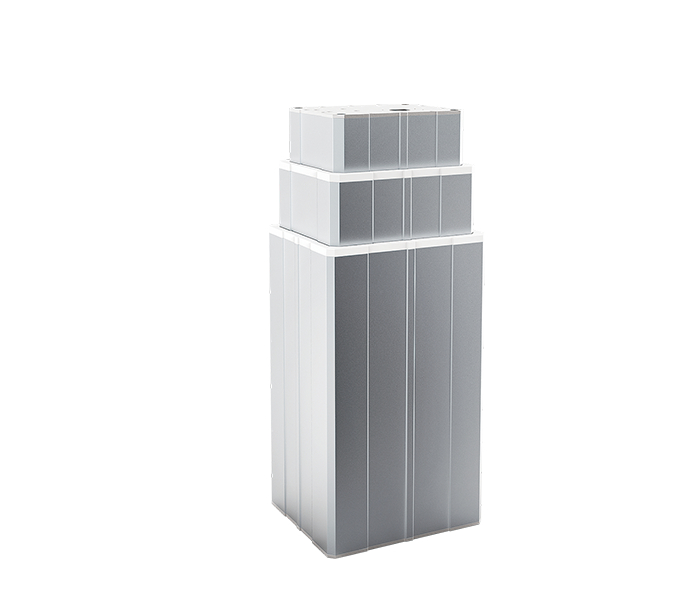

Name: JC35EM3
Rating: 5.0 (61 reviews)

This product has been off the shelf!

1. Motor: 24VDC

2. Built-in dimension: 350mm(+/-4)

3. Stroke length: Max 400mm(+/-4)

4. Load in push: 2000N

5. EM3 has three types: EM3-E(small)and EM3-F(large)

6. Static bending moment: 500

7. Dynamic bending moment: 250NM

8. Protection class: IP54

9. Colour:anodised aluminium

10. Built-in electrical limited switch-not adjustable

11. Noise level: 48dB

Dynamic Load Push(N)	2000
Static Load Push *(N)	2000
Input(VDC)	24
Off-center load capacity	Max.1000N at 500mm lever arm length
Speed at Full Load(mm/s)	10
Stroke Length(mm)	100~400 (option >400)
Colour	Sliver
Mounting	By screws on the top and bottom plate
Overload Protection	Yes
Limit Switch	Build-in
Duty Cycle	10%,max.2min. continuous use
IP Grade	IP54
Operation Temperature	+5℃~ +40℃
Optional Feature	Hall sensor option
Standard	CE

Dynamic Load Push(N)	2000
Static Load Push *(N)	2000
Input(VDC)	24
Off-center load capacity	Max.1000N at 500mm lever arm length
Speed at Full Load(mm/s)	10
Stroke Length(mm)	100~400 (option >400)
Colour	Sliver
Mounting	By screws on the top and bottom plate
Overload Protection	Yes
Limit Switch	Build-in
Duty Cycle	10%,max.2min. continuous use
IP Grade	IP54
Operation Temperature	+5℃~ +40℃
Optional Feature	Hall sensor option
Standard	CE
