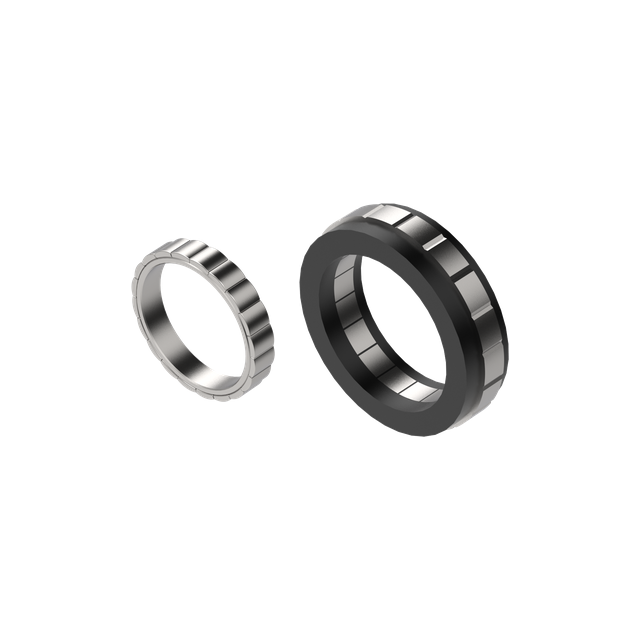

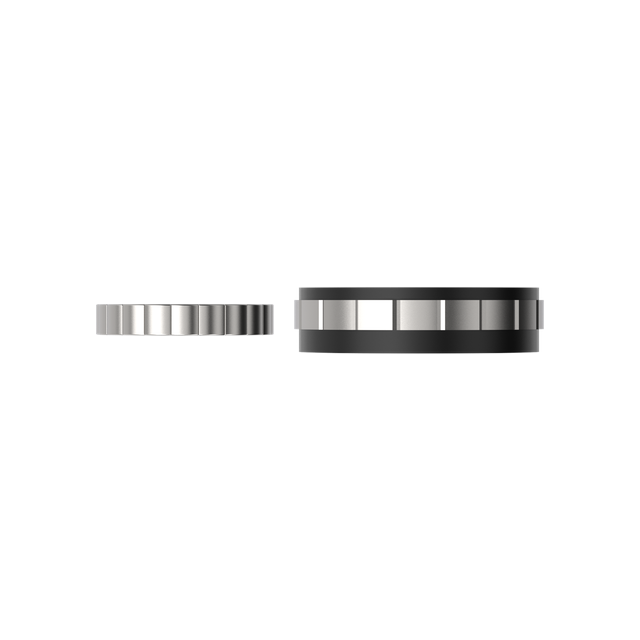

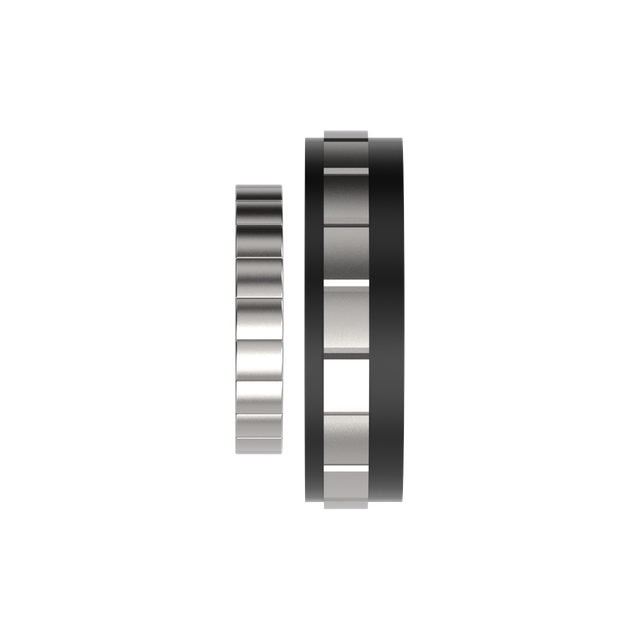

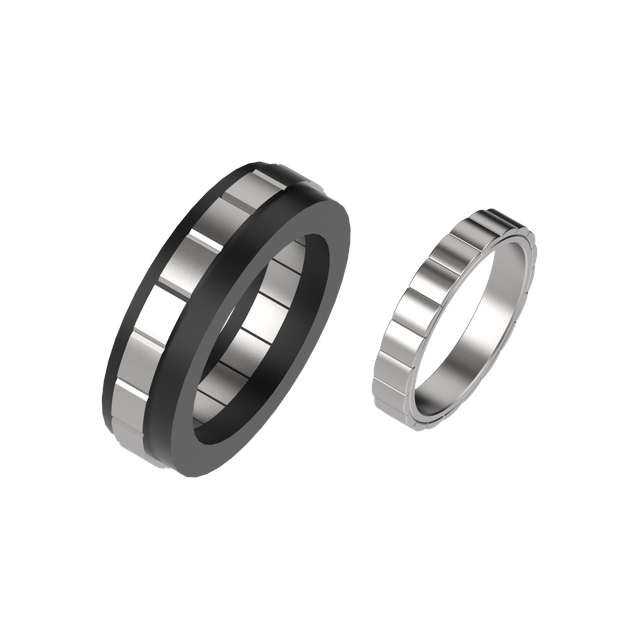

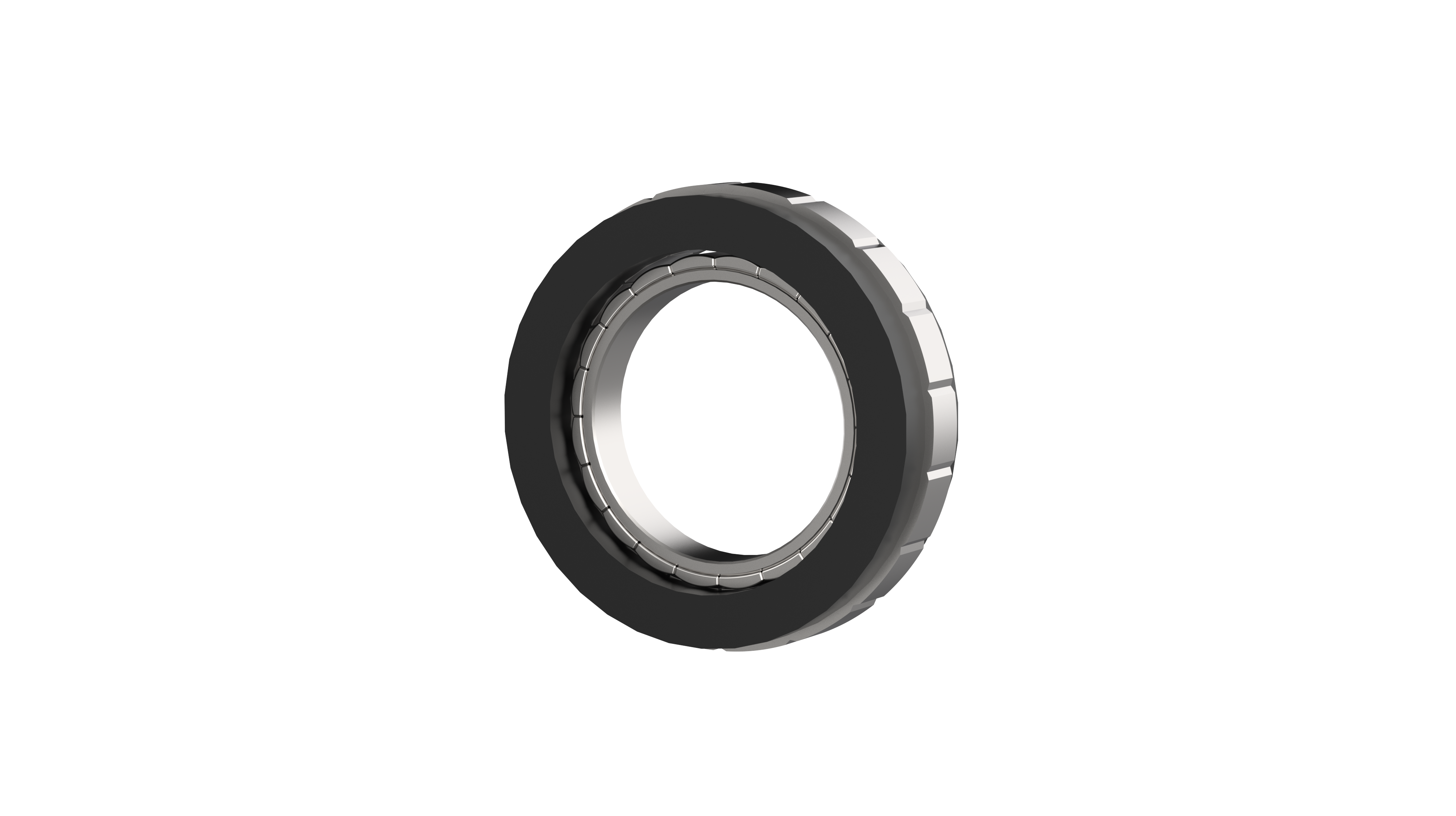

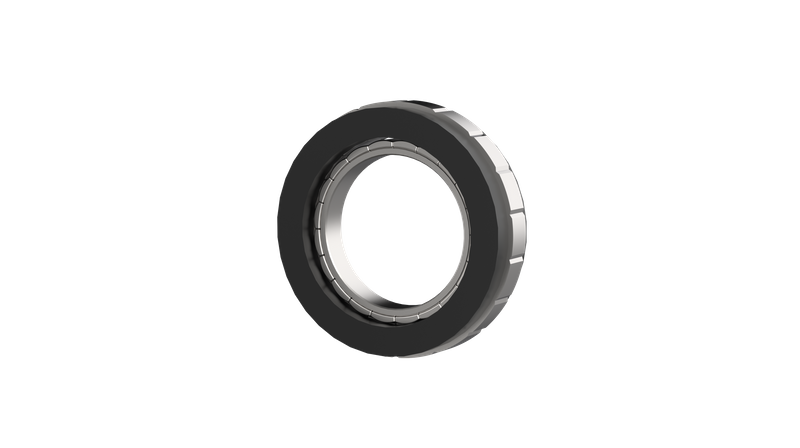

Rated Voltage(V)
48
Temperature Rise @ Rated
80K@23min
Freeload Speed(rpm)
4000±10%
Total Loss(W)
15.4
Rated Power(W)
58.64
Torque Constant(N·m/A)
0.12
Rated efficiency η(%)
74
Pole Pairs
10
Rated Torque(N·m)
0.32
Rotor Moment of inertia J
(Kgcm2)
0.3
Rated Speed(rpm)
1750
Cogging Torque(mNm)
12
Peak Torque(N·m)
0.96
Torque Ripple Factor(%)
2.12
Line Resistance(Ω)
1.64±10%
Temperature Sensor
NTC(100k)
Line Inductance(mH)
5±20%
Total Weight(Kg)
0.118
Winding Connect Method
Y
Name
Magnet Wire Max.OD
Stator Outer DIM
Stator Lamination THK
Value
58Max
60
7
Potting Adhesive Height
Rotor Inner DIM
Rotor Height
15.7Max
36
7.5
