JCLCTN-3 Robotic Lifting Column: Technical Review & Integration Guide

Views: 0 Author: JIECANG Co., Ltd. Publish Time: 2026-01-31 Origin: https://www.jiecang.com/

Inquire

JCLCTN-3 Robotic Lifting Column: Technical Review & Integration Guide

Key Takeaways

High Stability: Withstands 200Nm Dynamic (300Nm Static) Bending Moment to prevent wobbling.

Compact Design: 120mm x 120mm profile integrated with an internal driver.

Performance: Max Speed 60mm/s; Max Dynamic Load 800N.

Smart Control: Supports EtherCAT and RS-485 for real-time robot collaboration.

Durability: Operates in temperatures from -10°C to 55°C.

The "Spine" of Mobile Robots: Stability Analysis

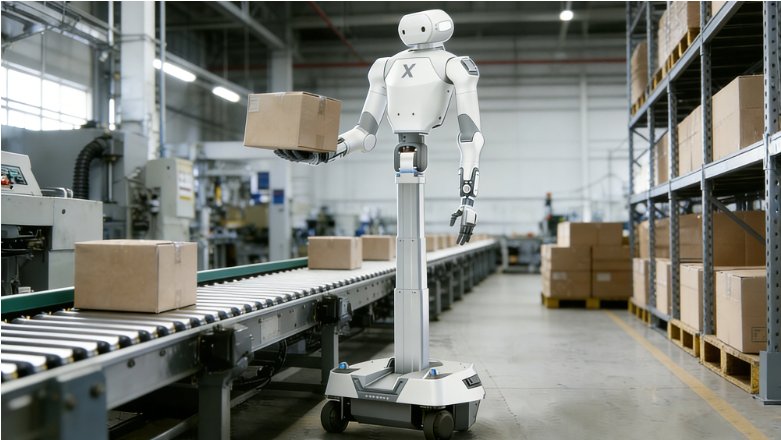

In the design of Autonomous Mobile Robots (AMRs), the lifting system determines the robot's operational range and stability. It is not just about lifting; it is about keeping the payload steady during motion.

The JIECANG JCLCTN-3 is engineered to solve the critical challenge of "Side-Load Stability". Unlike standard actuators, it is built to resist the lateral forces generated when a robot accelerates or stops.

Dynamic Bending Moment: 200 Nm
Static Bending Moment: 300 Nm

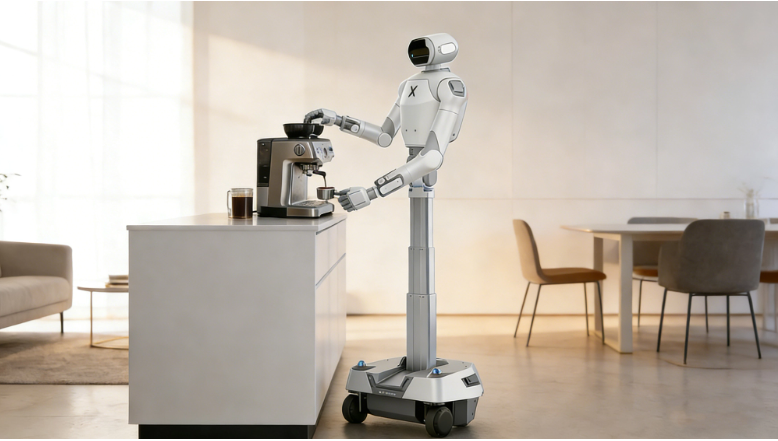

Engineering Impact: This high bending moment capacity ensures that top-mounted modules—such as collaborative robot (cobot) arms or precision sensor arrays—remain stable without oscillation, even when the AMR navigates uneven factory floors.

Dimensions & Compact Integration

Space efficiency is vital for robot chassis design. Every millimeter counts when fitting batteries, LiDAR, and computing units. The JCLCTN-3 features a highly integrated structure to maximize available space.

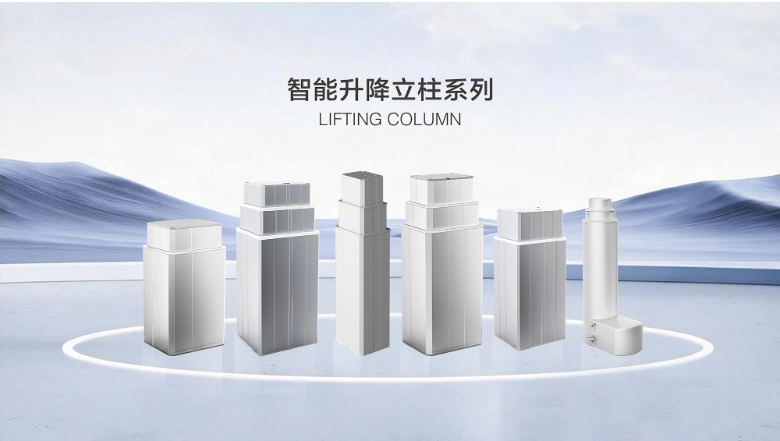

Customized Size/Shapes Available
Drive Integration: Built-in motor and controller (no external control box required).

By integrating the drive system inside the column, the JCLCTN-3 reduces wiring complexity and allows for a cleaner, more compact robot design.

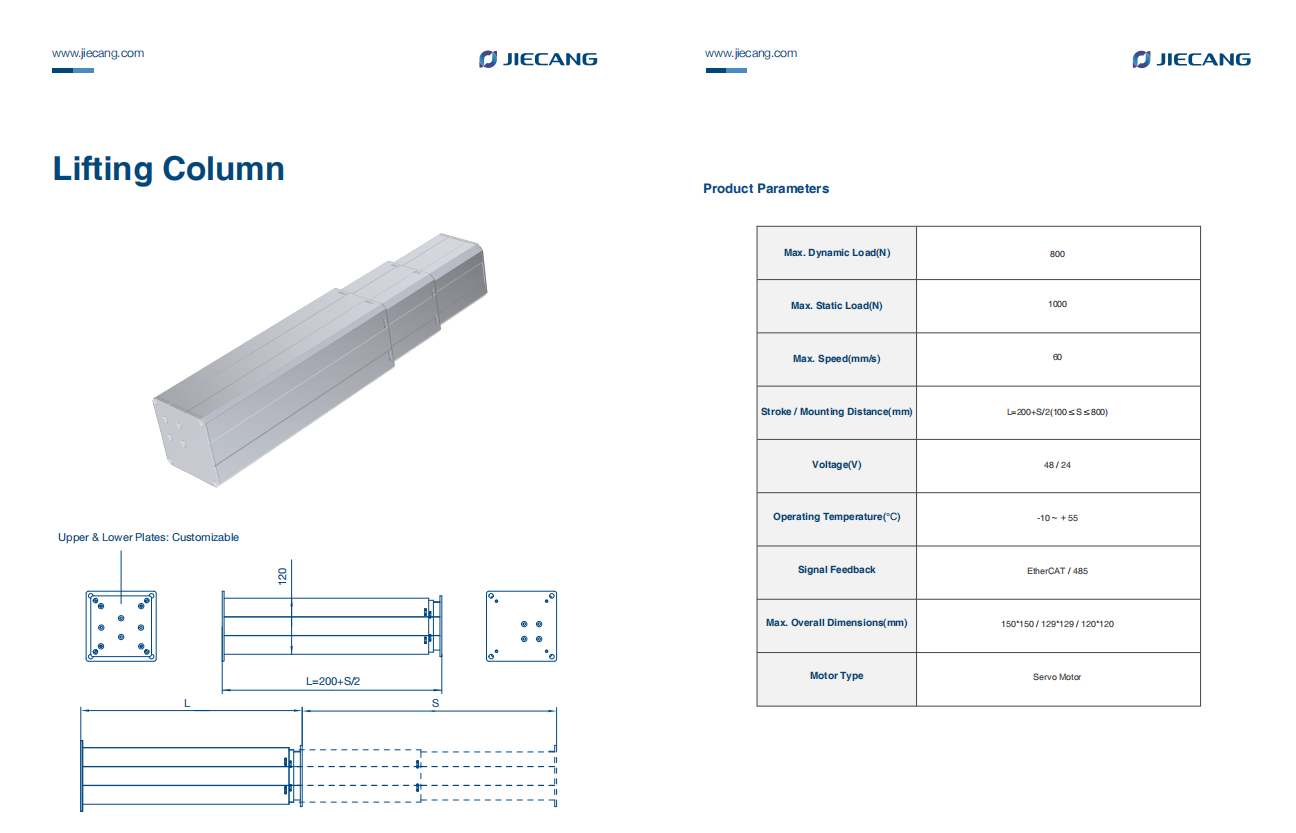

Technical Specifications Data

Below are the verified performance metrics for the JCLCTN-3, designed for industrial automation standards.

Smart Connectivity & Durability

The JCLCTN-3 is designed to interact seamlessly with the robot's "brain" (Robot Operating System).

Real-time Control: Through EtherCAT or RS-485, the column provides real-time feedback on position and status, enabling closed-loop control for complex, synchronized tasks.
All-Weather Adaptability: With a wide working temperature range of -10°C to 55°C, the column is suitable for diverse environments, from cold chain logistics to outdoor patrol robots.
