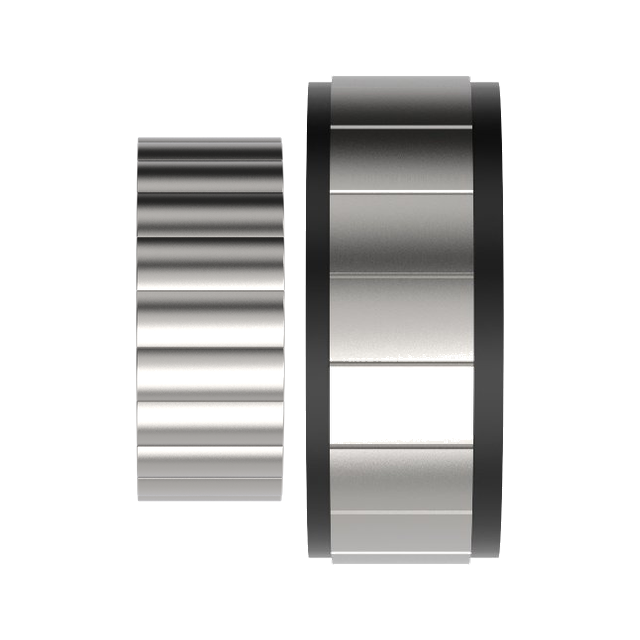

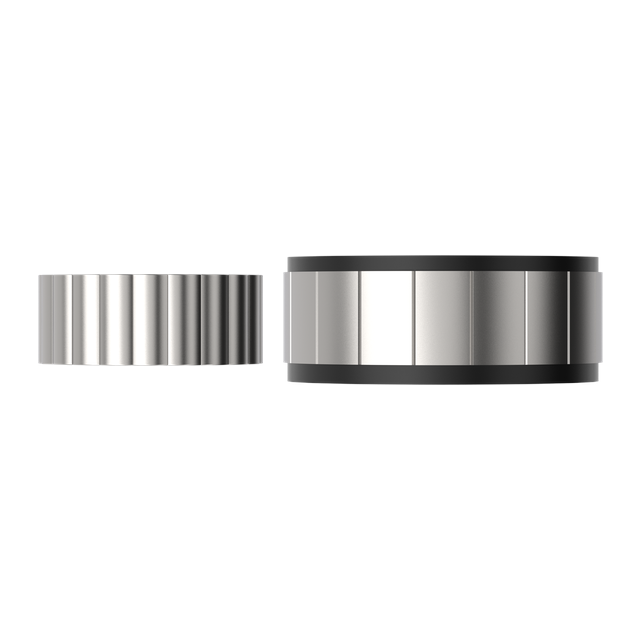

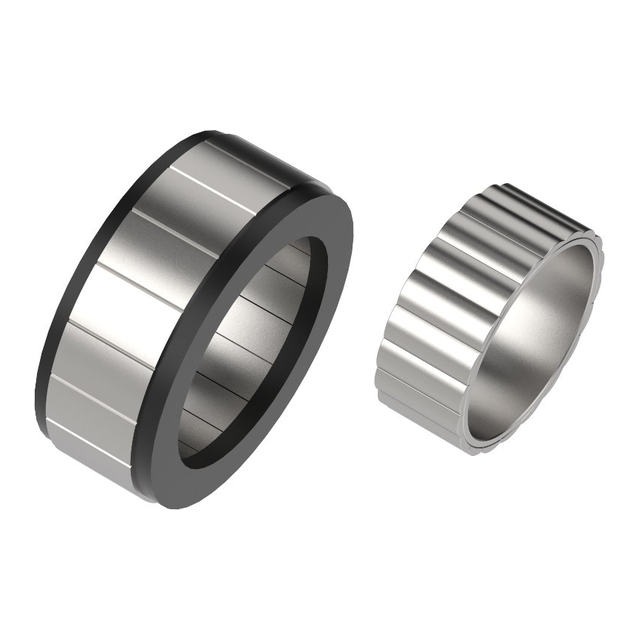

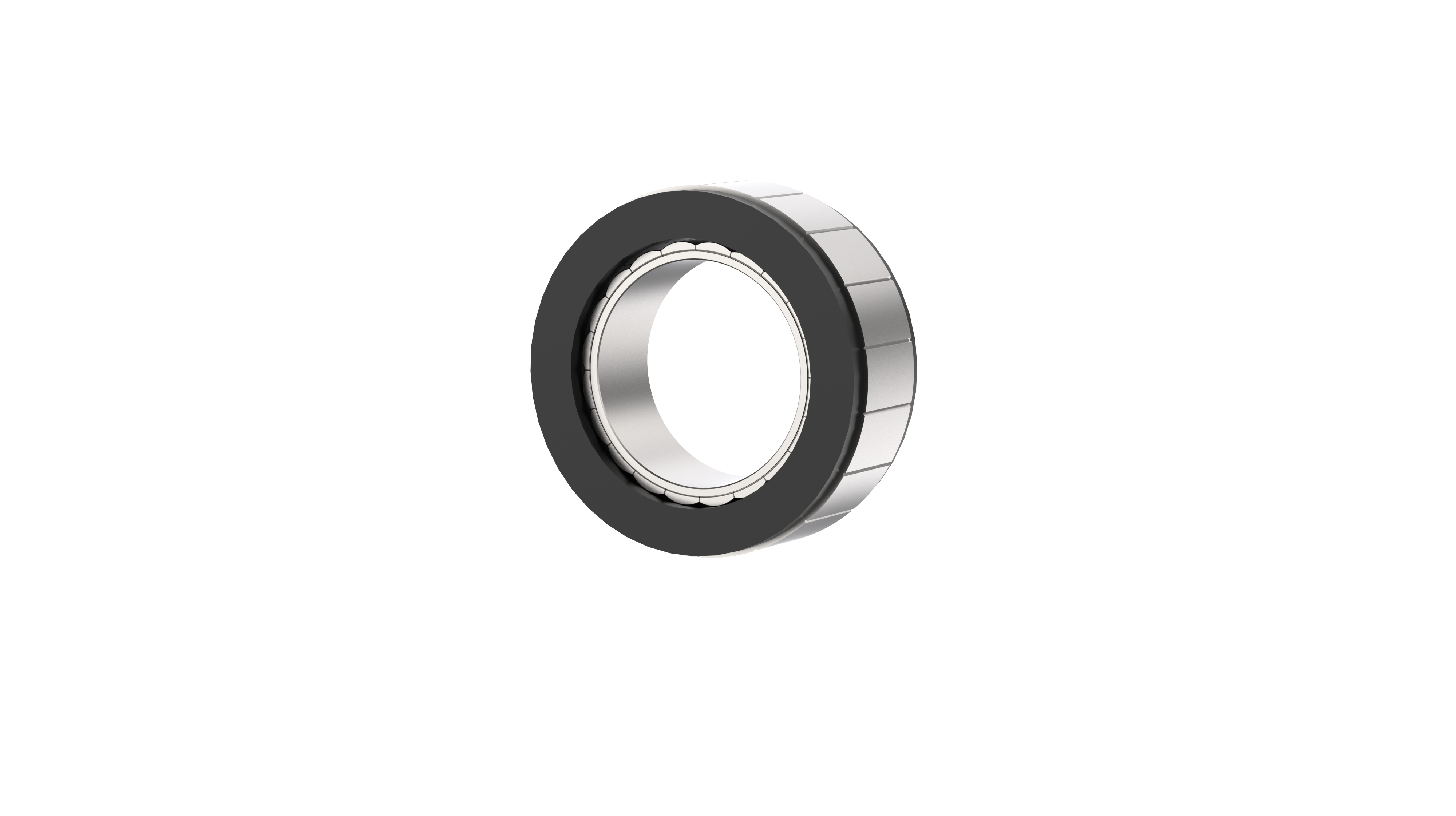

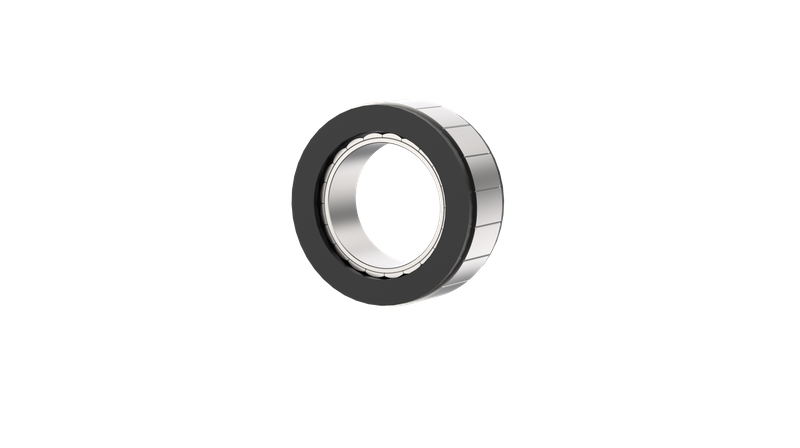

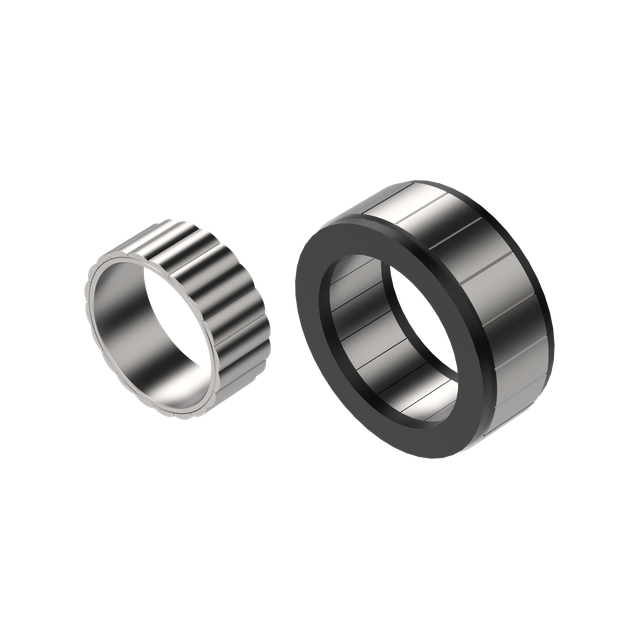

Frameless Torque Motor JCTM85

Rated / Peak torque: 2 / 6 N·m
Rated speed: 3500 rpm
Torque constant: 0.13 N·m/A
Availability:
Inquire

Rated Voltage(V)48Temperature Rise @ Rated80K@60min
Freeload Speed(rpm)4200±10%Total Loss(W)28.8
Rated Power(W)733.04Torque Constant(N·m/A)0.13
Rated efficiency η(%)87Pole Pairs10
Rated Torque(N·m)2(Kgcm2)1
Rated Speed(rpm)3500Cogging Torque(mNm)30
Peak Torque(N·m)6Torque Ripple Factor(%)1.43
Line Resistance(Ω)0.077±10%Temperature SensorNTC(100k)
Line Inductance(mH)0.4±20%Total Weight(Kg)0.62
Winding Connect MethodY


Name

Magnet Wire Max.OD

Stator Outer DIM

Stator Lamination THK

Value

82.5Max

85

24


Name


Potting Adhesive Height

Rotor Inner DIM


Rotor Height


Value


33Max

52

24



download JCTM-85-EN.pdf
