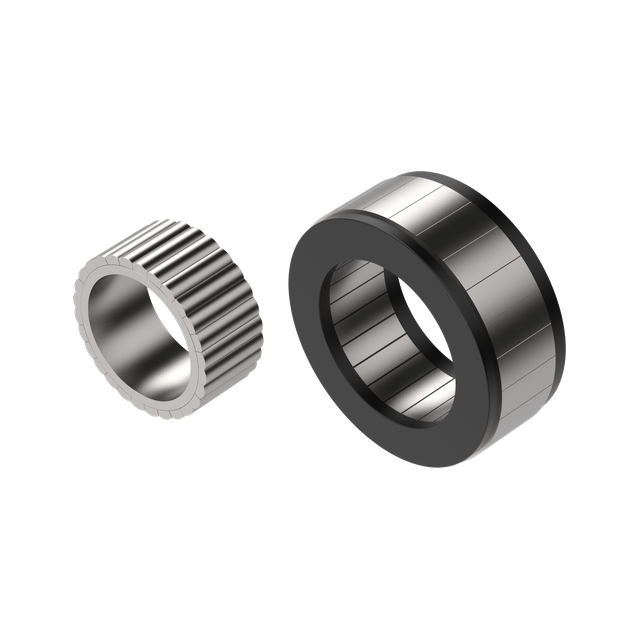

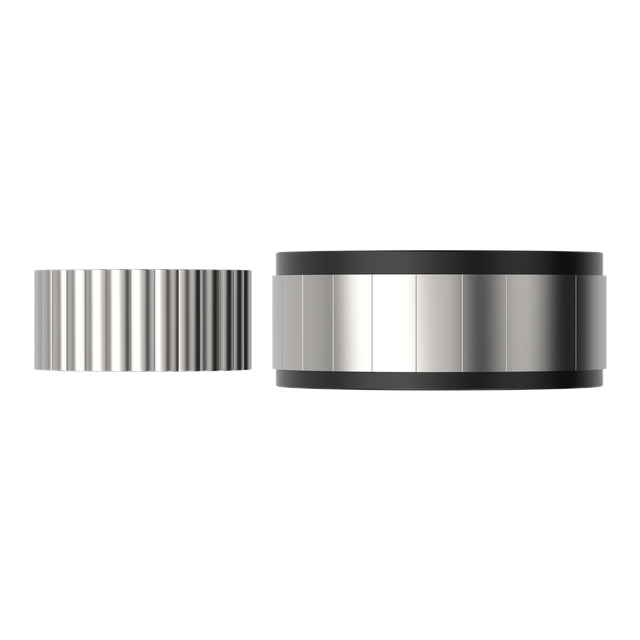

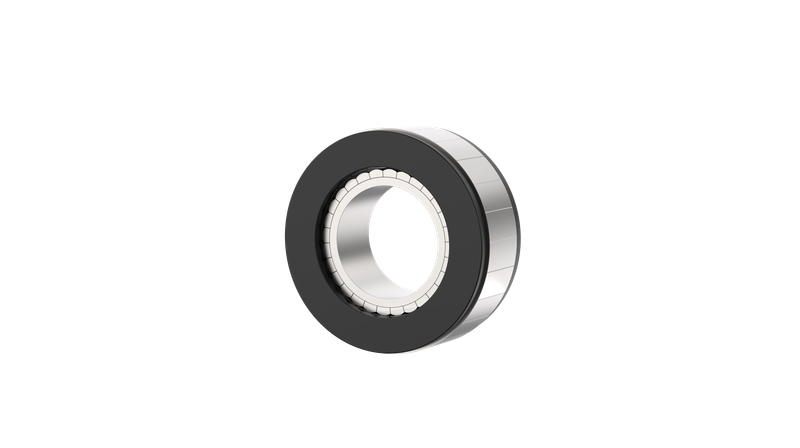

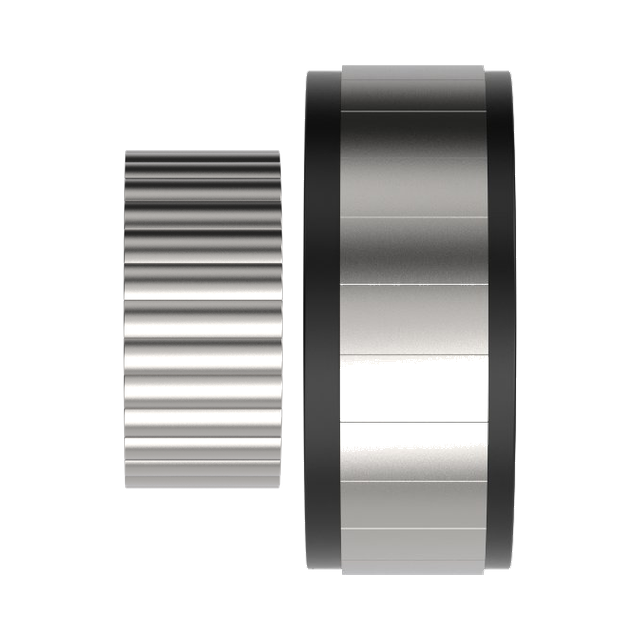

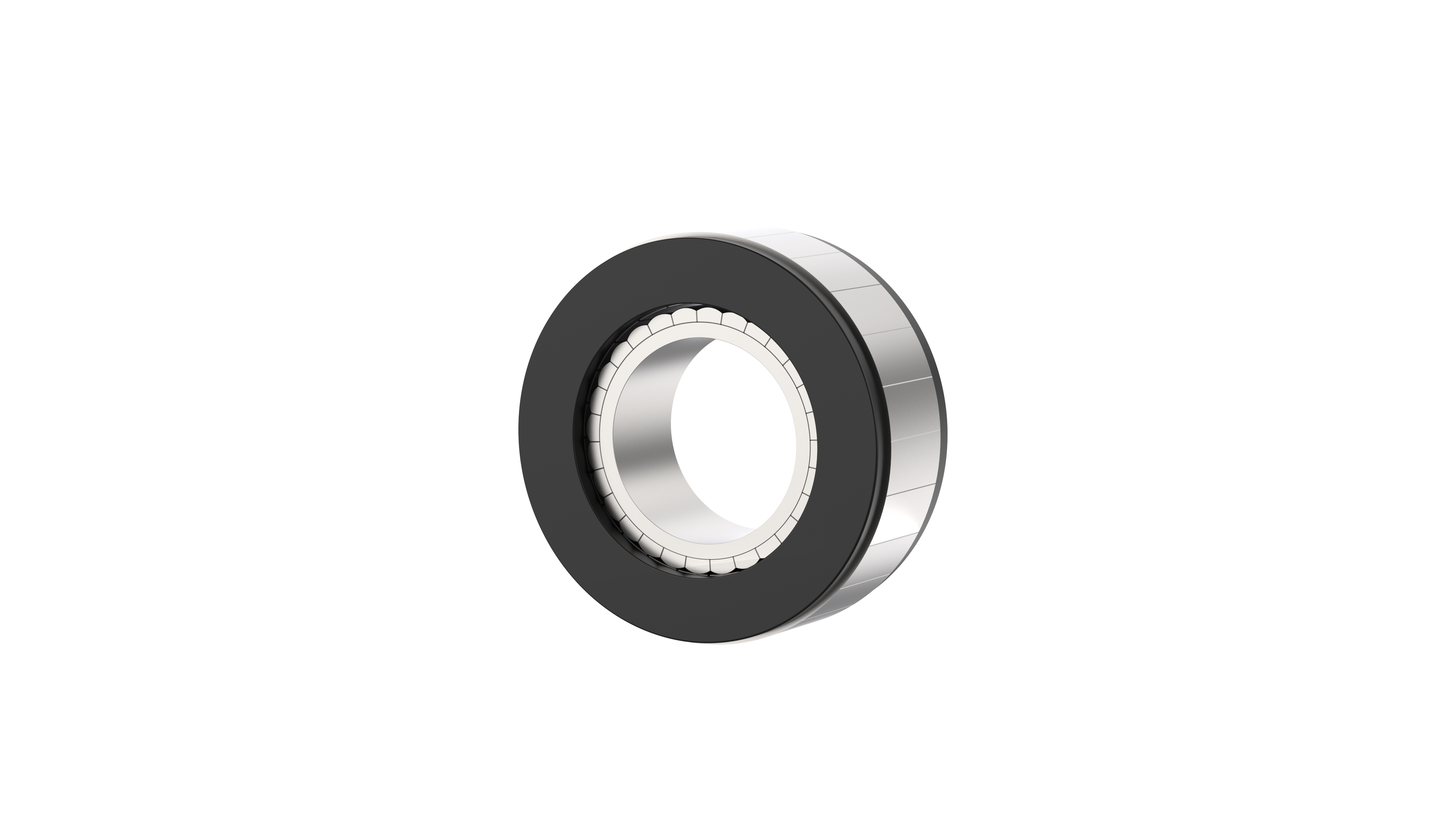

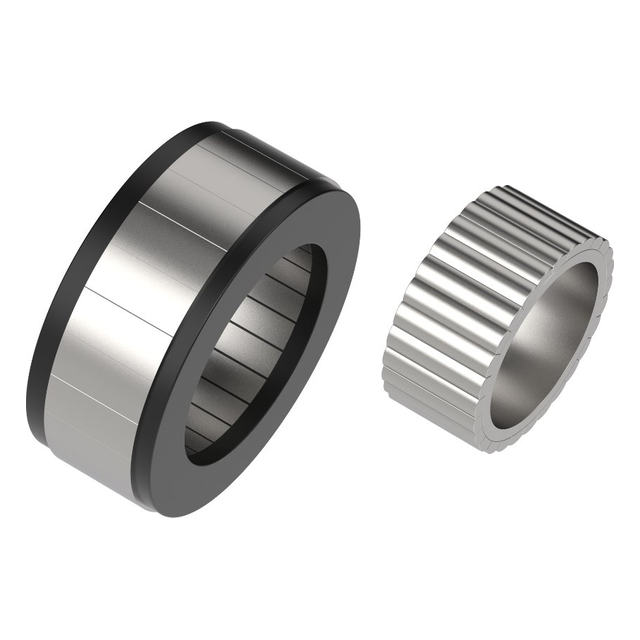

Rated Voltage(V)
48
Temperature Rise @ Rated
80K@120min
Freeload Speed(rpm)
900±10%
Total Loss(W)
22
Rated Power(W)
194.00
Torque Constant(N·m/A)
0.58
Rated efficiency η(%)
82
Pole Pairs
14
Rated Torque(N·m)
2.64
Rotor Moment of inertia J
(Kgcm2)
1.9
Rated Speed(rpm)
700
Cogging Torque(mNm)
35
Peak Torque(N·m)
8.98
Torque Ripple Factor(%)
2.28
Line Resistance(Ω)
0.7±10%
Temperature Sensor
NTC(100k)
Line Inductance(mH)
2.564±20%
Total Weight(Kg)
0.92
Winding Connect Method
Y
Name
Magnet Wire Max.OD
Stator Outer DIM
Stator Lamination THK
Value
92Max
94
26
Potting Adhesive Height
Rotor Inner DIM
Rotor Height
37.5Max
47
28
